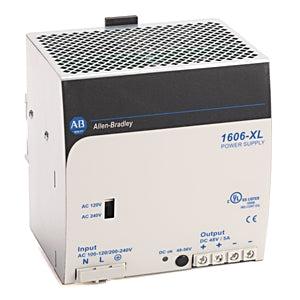

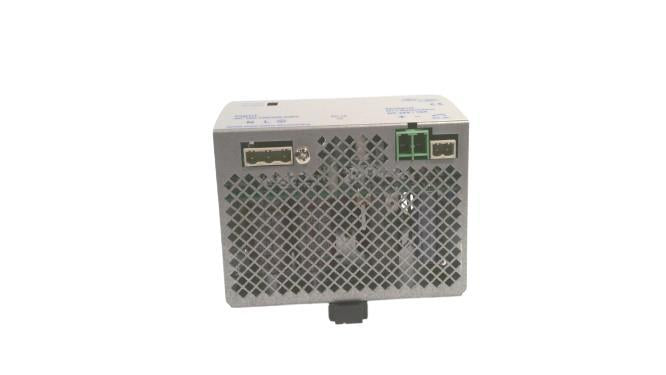

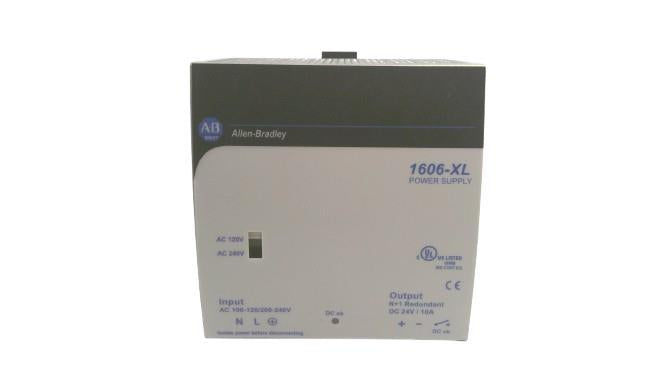

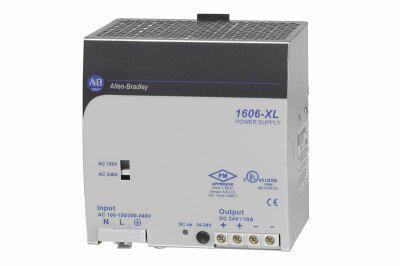

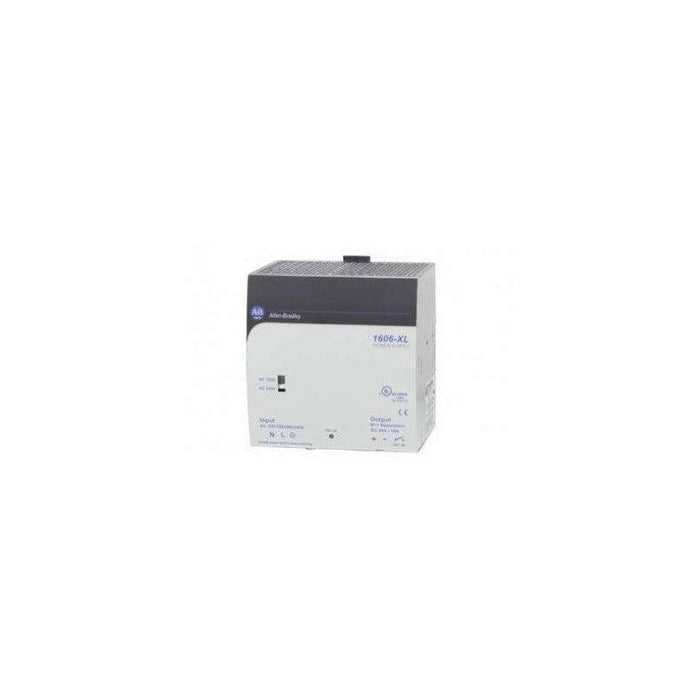

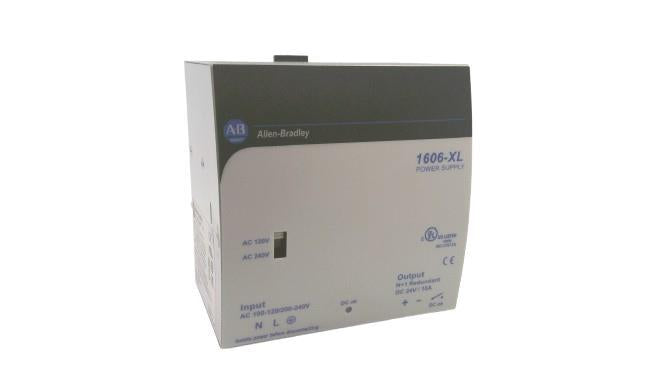

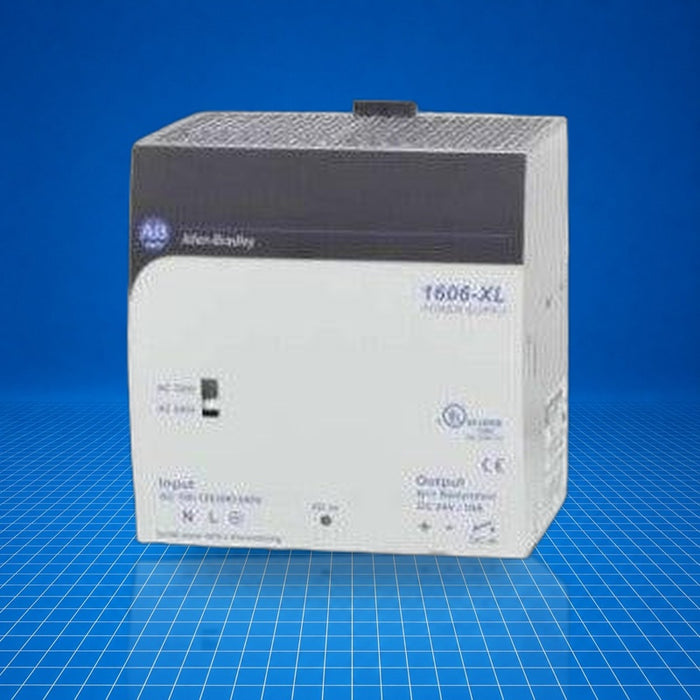

1606-XL240DR Allen-Bradley
Original price
$528.00
-
Original price
$3,293.40
Original price
$528.00
$528.00
-
$3,293.40
Current price
$528.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1606-XL240DR is a 24 V DC, 240 W power supply from the 1606-XL family, designed to convert selectable AC input (100-120 V or 200-240 V) or high-voltage DC (240-375 V) into regulated 24 V DC at up to 10 A. It functions as a primary or redundant unit in industrial control systems, providing reliable power for PLCs, I/O modules, field devices. Common applications include controller power, distributed I/O racks, and backup/redundancy systems in manufacturing and process-control environments.
Best Suited For
- Main PLC and I/O power in industrial control panels
- Paralleled (N+1) redundant power configurations
- Applications requiring selectable AC or high-voltage DC input
- Replacement for XL power supplies in legacy systems
Output voltage
24 V DC
Output current
10 A
Power rating
240 W
Input range
AC 85-132 V or 176-264 V; DC 240-375 V
Redundancy ready
Yes (N+1, RDY relay)
Technical Specifications
I/O & Electrical
Input voltage (AC)
85-132 V AC or 176-264 V AC (switchable)
Input voltage (DC)
240-375 V DC
Rated output voltage
24 V DC
Rated output current
10 A
Inrush current
< 30 A at 264 V AC (cold start)
No-load input current
< 6 A (115 V AC), < 2.8 A (230 V AC)
DC-in at open output
8 mA
Physical & Environmental
Dimensions (W × H × D)
240 × 124 × 112 mm (three-phase dimensions reference, approximate for this model)
