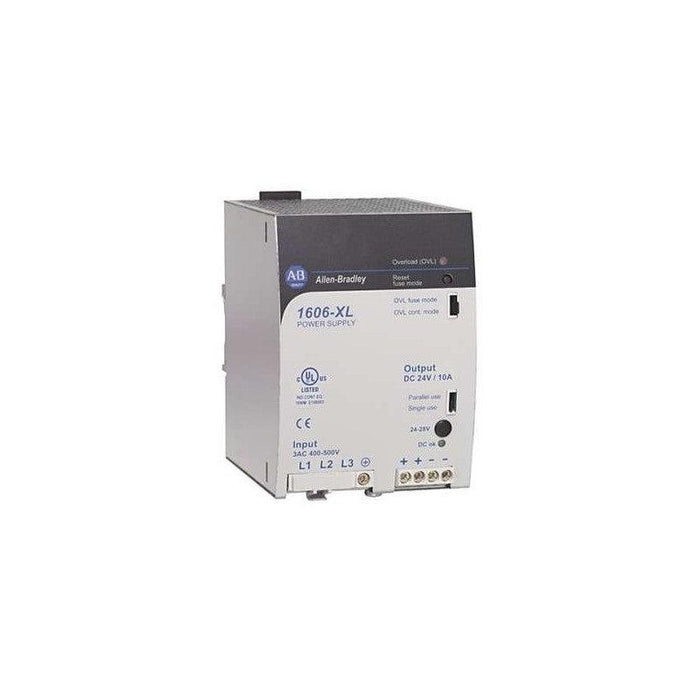

Product image is representative; revision or series may vary.
Contact us to request a specific version.

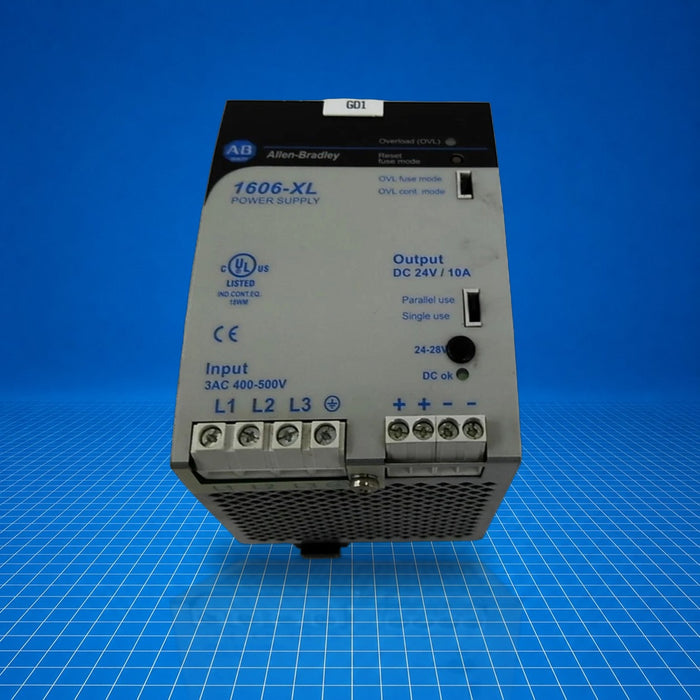

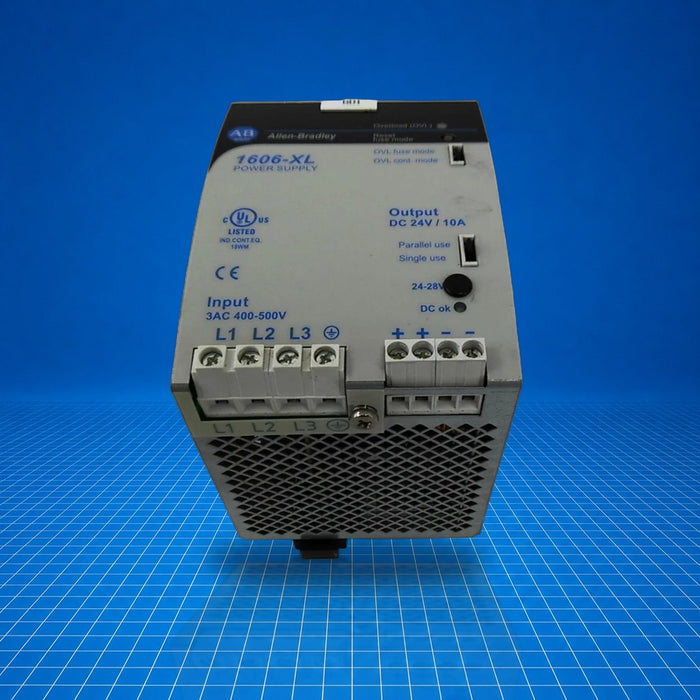

1606-XL240E-3 Allen-Bradley

Name: 1606-XL240E-3 Allen-Bradley
Brand: Allen Bradley
SKU: 1606-XL240E-3
Price: 450.0 USD
Availability: InStock

$450.00 - $2,427.75

$450.00

$450.00 - $2,427.75

$450.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley 1606-XL240E-3 is a three-phase switched-mode power supply in the 1606-XL family. It accepts a wide AC input and delivers regulated DC output typically used for control system power in industrial automation. The unit provides 24…28 V DC at up to 240 W and includes features such as switchable overload behavior, front-panel potentiometer, and automatic input selection. Discontinued as of October 30, 2017, it remains in use for legacy systems requiring reliable 24 V DC power.

Best Suited For

Three-phase AC input industrial control panels
Legacy PLC power replacement in XL family systems
Applications requiring adjustable 24 V output via front-panel potentiometer
Redundant or parallel power supply structures

Output Power

240 W

Output Voltage

24…28 V DC

Input Voltage Range

3 Ø 400…500 V AC

Mounting

DIN-rail

Discontinued Date

October 30, 2017

Technical Specifications

I/O & Electrical

Input voltage range

3 Ø 400…500 V AC (wide-range) or 450...820 V DC

Output voltage

24…28 V DC, front-panel adjustable (preset ≈ 24.5 V ±0.5%)

Output power

240 W

Rated output current

≈ 10 A (240 W at 24 V)

Rated input current

3 × 0.8 / 0.7 A @ 400/500 V

Hold-up time

>24 ms (3-phase 400 V AC); >20 ms (2-phase 400 V AC)

Efficiency

typ. 92 %

Ripple and noise

≤ 50 mV p-p

Operation temperature

0 °C…+70 °C (derate above 60 °C)

Storage temperature

-25 °C…+85 °C (per distributor)

Mounting type

DIN-rail

Physical & Environmental

Height

124 mm

Width

62 mm

Depth

117 mm

Weight

~0.99 kg (2.19 lb)

IP rating

IP20

MTBF

>975 kh @ +40 °C

Derating

6 W/°C above reference

Certifications

UL ListedCECSAC-TickGOSTMarine

Includes approvals per EN60204 and conducted-EMI below EN50081-1; global standards such as CE, CSA, C-Tick, GOST, Marine; UL listed.
