1606-XL240EP Allen-Bradley
Original price
$450.00
-
Original price
$475.56
Original price
$450.00
$450.00
-
$475.56
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

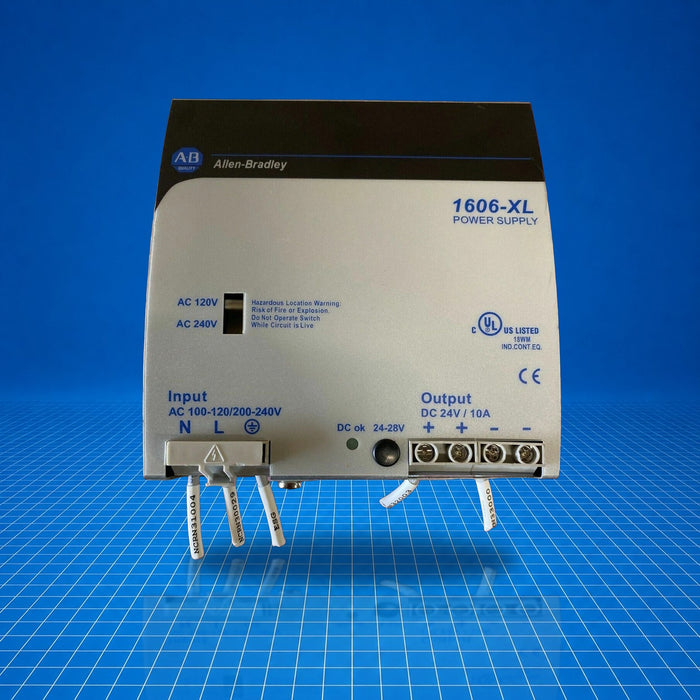

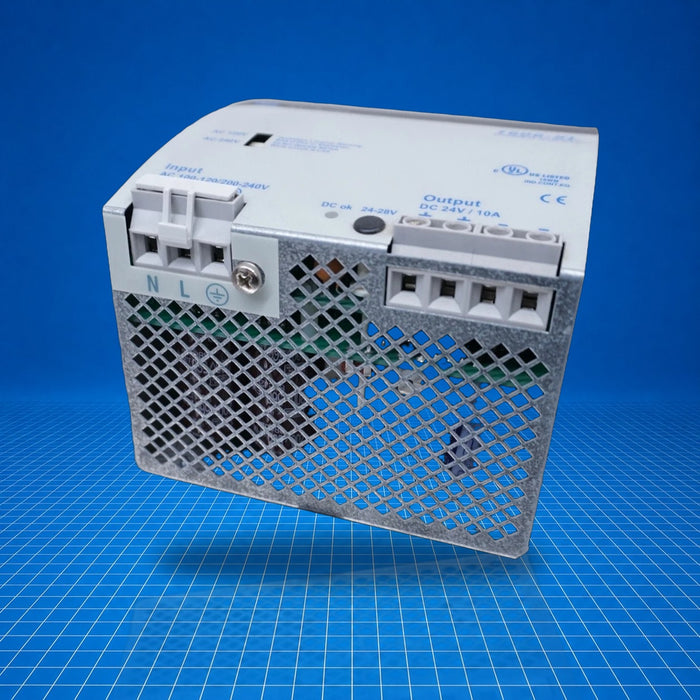

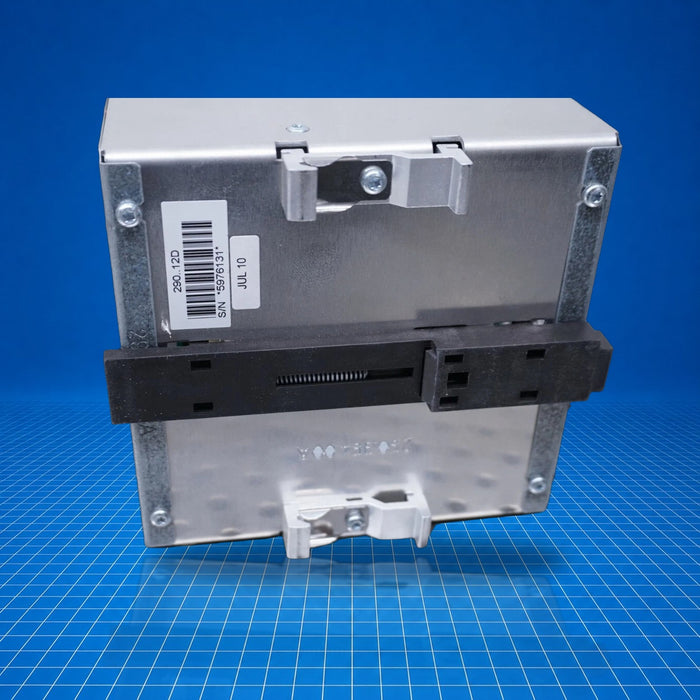

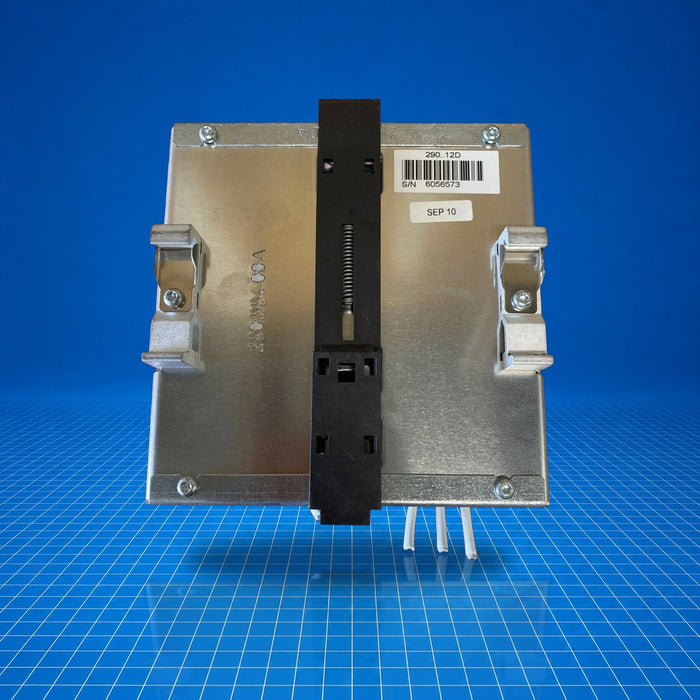

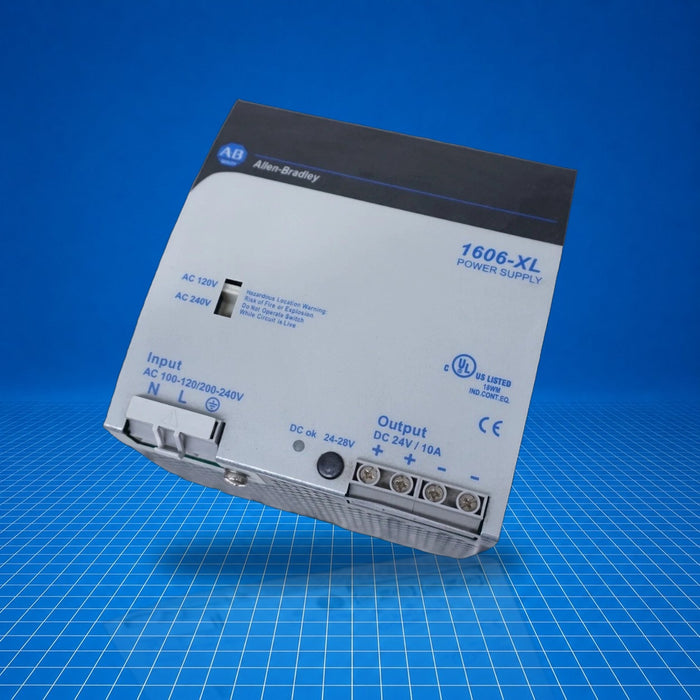

The 1606-XL240EP is an Allen-Bradley Bulletin 1606 XL series switched-mode power supply offering 240 W DC output. As a now-discontinued component (discontinued October 30, 2017), it provided selectable single-phase AC or high-voltage DC input capability to supply 24-28 V DC loads in industrial control panels. It served as a compact control power source for PLC systems, I/O modules, and auxiliary loads where a single power supply feeding 24 V subsystems was required, until its migration to the 1606-XLE/XLS families.
Best Suited For
- 24 V control circuit power for legacy XL-series systems
- Single-phase AC or high-voltage DC input environments
- Panel retrofits needing compact 240 W DC power supply
- Replacement in systems where migration to XLE/XLS not possible
Output Power
240 W
Output Voltage
24-28 V DC
Input Voltage
100-120 V AC, 200-240 V AC or 240-375 V DC
Status
Discontinued (Oct 30, 2017)
Technical Specifications
I/O & Electrical
Output voltage
24-28 V DC
Output power
240 W
Communication & Power
Input voltage options
100-120 V AC, 200-240 V AC or 240-375 V DC
Input current
<6 A (115 V), <2.8 A (230 V)
Efficiency (typical)
89 % (approx.)
Overvoltage protection (typ)
35 V
Parallel operation
Supported (current sharing on request)
Physical & Environmental
Operating temperature
0 to 70 °C
Storage temperature
-25 to 85 °C
Weight
2.56 lbs (1.16 kg)
