1606-XLE240EN Allen-Bradley
Original price
$450.00
-
Original price
$852.47
Original price
$450.00
$450.00
-
$852.47
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

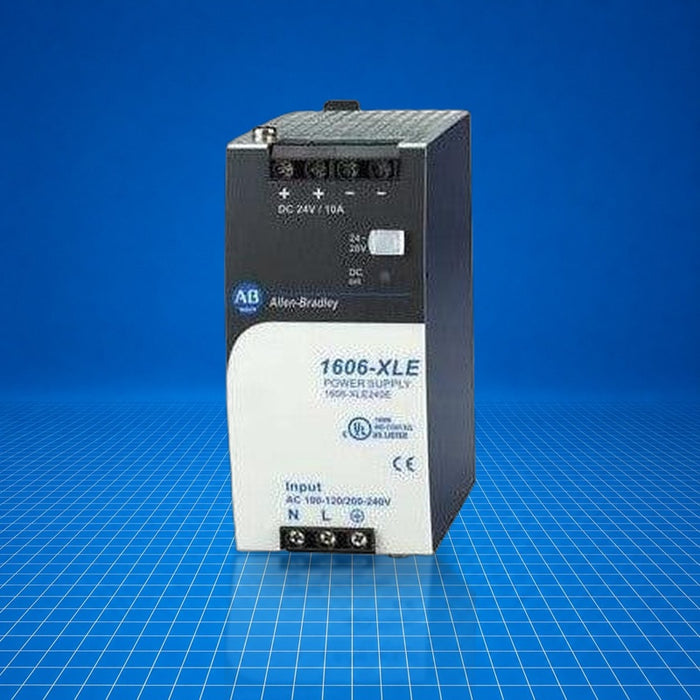

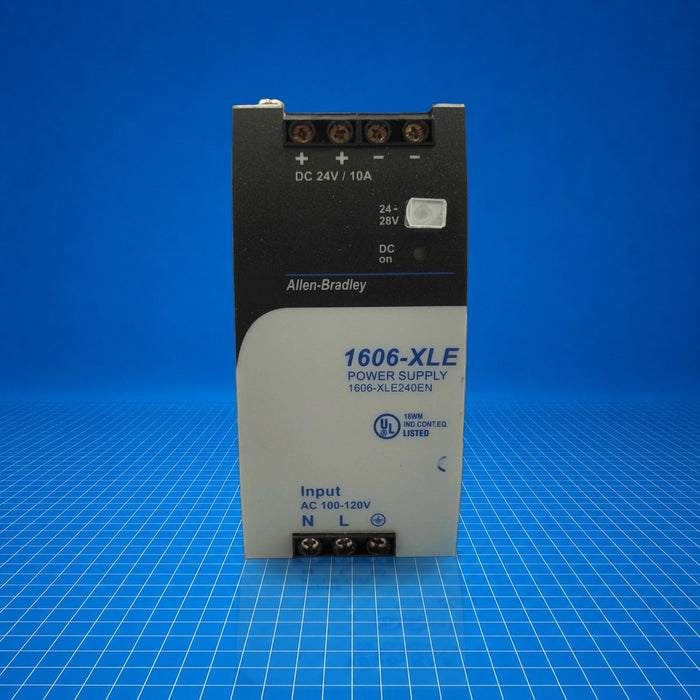

The 1606-XLE240EN is an Allen-Bradley Essential Line (XLE) power supply module delivering 24 V DC at up to 10 A (240 W). It accepts 100-120 V AC single-phase input and provides a 20 % power reserve continuously up to 45 °C. It is designed for machine control and automation systems requiring compact, reliable DC power. Typical use includes powering PLC racks, control panels, and distributed I/O networks. Part number 1606-XLE240EN is part of the Bulletin 1606-XLE family.
Best Suited For
- PLC rack power feed
- Control panel installations
- Distributed I/O modules
- Machine-level DC supply
Output voltage
24 V DC
Max output current
10 A
Input voltage
100-120 V AC
Power output
240 W
Technical Specifications
I/O & Electrical
Output current range
10 … 8.6 A (ambient < 60 °C)
Power reserve
20 % continuous to 45 °C
Ripple and noise, max
50 mV pp (20 Hz-20 MHz)
Communication & Power
Efficiency, typical
91.3 % at 120 V AC
Power losses, typical
23.4 W at 120 V AC
Power factor, typical
0.57 at 120 V AC
Input inrush current
85 A peak (NTC)
External input fuse min
B-16 A or C-10 A
Hold-up time
> 46 ms at 120 V
Physical & Environmental
Dimensions W×H×D
60 × 124 × 117 mm
Weight
700 g
Operating temperature
0 … 70 °C
Derating
6 W/°C (60-70 °C)
MTBF
710 kh (40 °C, SN29500)
Lifetime, min
50 kh (+40 °C)
Degree of protection (IP)
IP20
Certifications
EACRCMUKCA
Certified as of 17 May 2026: Eurasian Economic Community, Australian RCM, UKCA.
