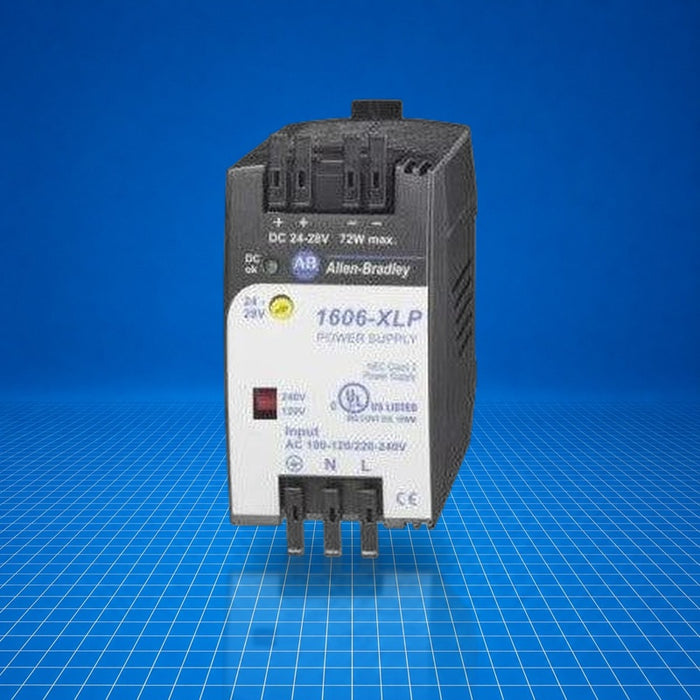

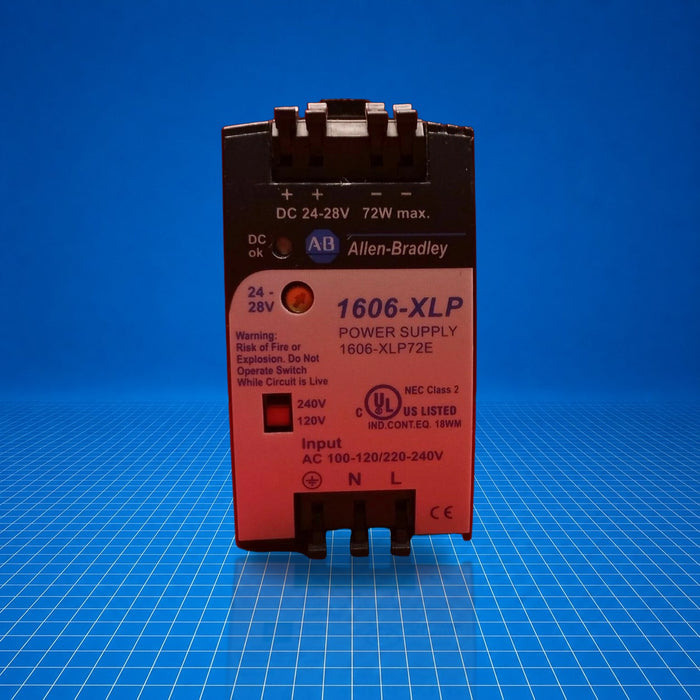

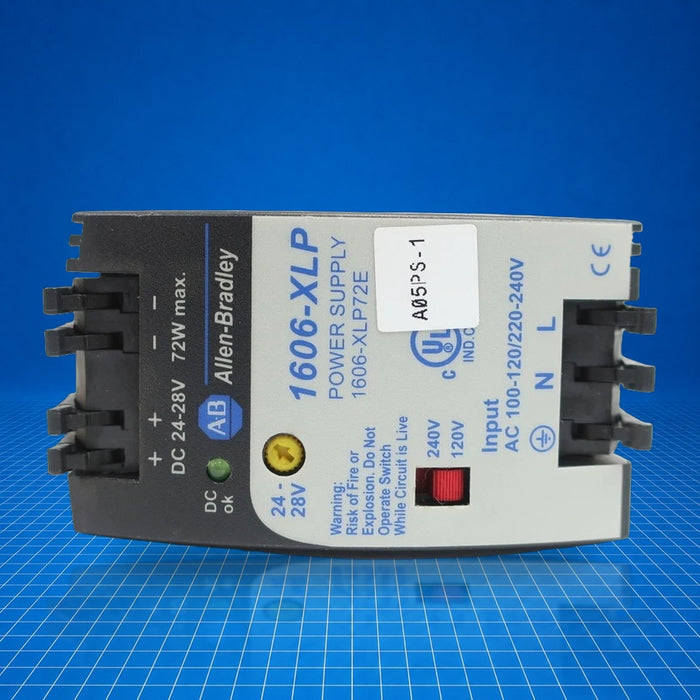

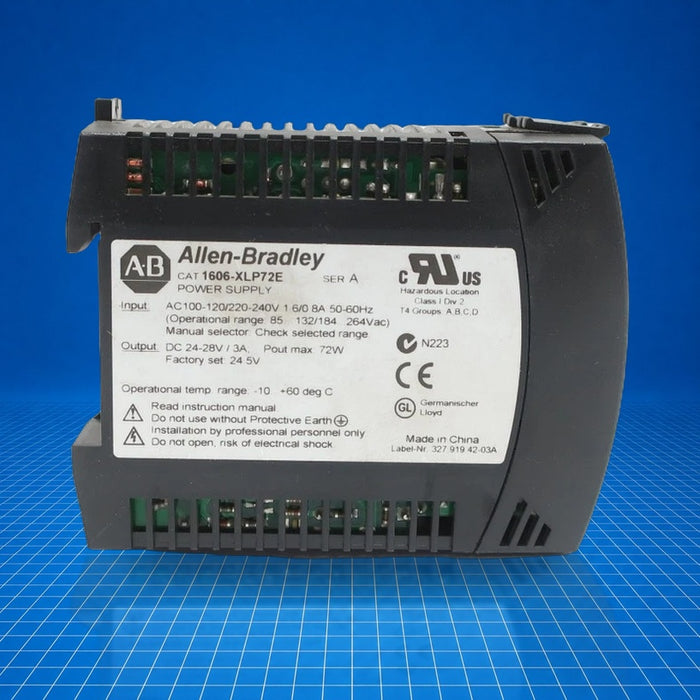

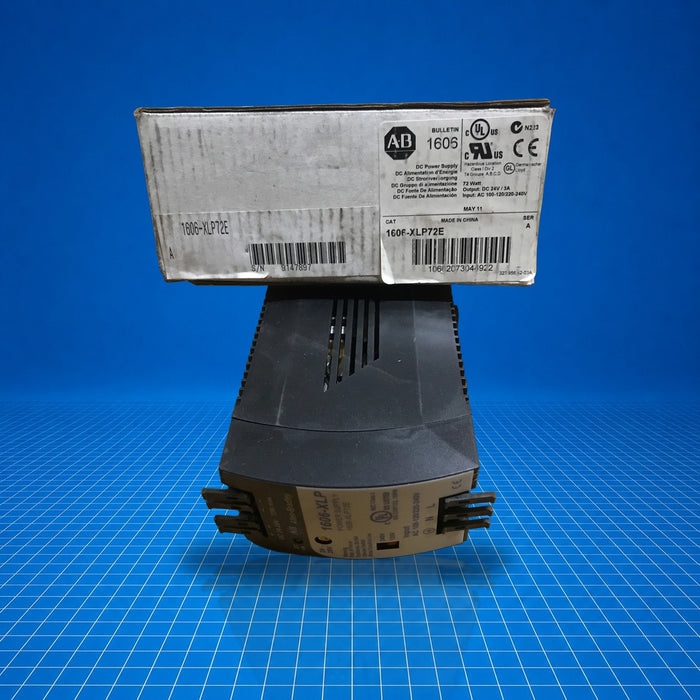

1606-XLP72E Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1606-XLP72E Allen-Bradley

$420.00 - $450.00
$420.00
$420.00 - $450.00
$420.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$420.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$450.00
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1606-XLP72E is an Allen-Bradley Bulletin 1606 XLP series compact switched-mode power supply providing adjustable 24 ... 28 V DC at up to 3 A (72 W) output. It accepts manually selectable AC input ranges of 100 … 120 V AC or 220 … 240 V AC, plus 290 V DC, and is intended for DIN-rail installation in industrial control panels. It supplies low-power control circuits such as PLCs, sensors, relays and HMI stations, offering hold-up time and efficiency suited to production, packaging and general automation environments. (Part number 1606-XLP72E.)

Best Suited For

  • DIN-rail mounted PLC control circuits
  • Low-power sensor and HMI supply
  • Packaging and general automation panels
  • Global AC/DC input environments
  • Environments requiring hold-up time for sag immunity
Output
24…28 V DC, 3 A (72 W)
Input
100…120 V AC or 220…240 V AC manual select; 290 V DC
Hold-up time
>25 ms @ 100 V AC; >40 ms @ 230 V AC
Dimensions (W × H × D)
45 × 75 × 91 mm
Weight
260 g

Technical Specifications

I/O & Electrical

Output voltage
24…28 V DC
Output current
3 A
Output power
72 W
Ripple and noise, max
50 mV pp
Input voltage
100…120 V AC or 220…240 V AC (manual select); 290 V DC
Rated input current
< 1.6 A @ 100 V AC; < 0.8 A @ 220 V AC
Efficiency, typ
89 %
Power losses, typ
8.7 W
Hold-up time
>25 ms @ 100 V AC; >40 ms @ 230 V AC
Input inrush current
26 A / 30 A
External input fuse, min
B-10 A or C-6 A

Communication & Power

Connection terminals
Spring-clamp
Mounting
DIN-rail TS35/7.5 or TS35/15
MTBF
600,000 h @ 40 °C, SN29500

Physical & Environmental

Dimensions (W × H × D)
45 × 75 × 91 mm
Weight
260 g
Protection rating
IP20
Operating temperature
-10…+70 °C
Storage temperature
-40 °C
Relative humidity
5 to 95 %
Shock
30 g, 6 ms; 20 g, 11 ms
Vibration
2 g

Certifications

CEcULusAustralian RCMATEXClass 1 Div. 2ABS/GL/RINANEC Class 2SEMI F47

Certifications include CE, cULus. Additional approvals may include Australian RCM, ATEX, Class 1 Div. 2 (T3 A), ABS/GL/RINA, NEC Class 2, SEMI F47 compatibility when product is marked. Manual select AC/DC input. (See product profile documentation.)
