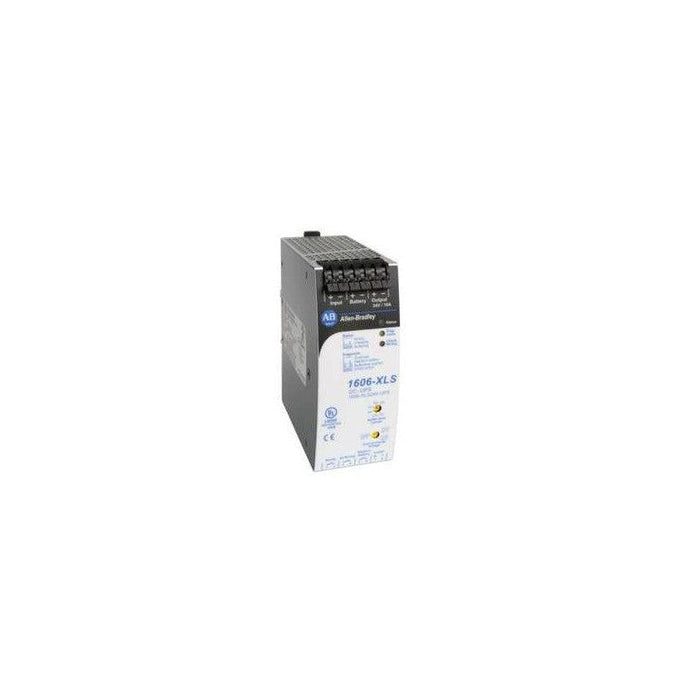

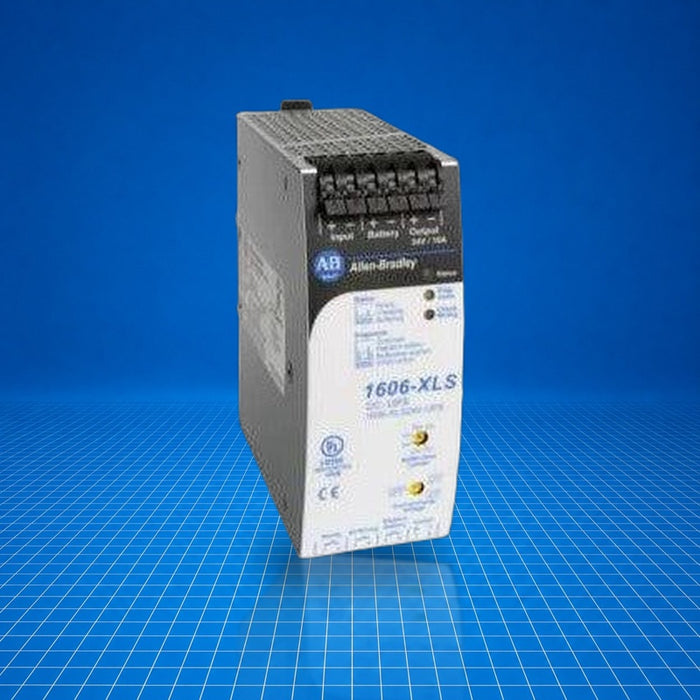

1606-XLS240-UPSD Allen-Bradley
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1606-XLS240-UPSD is an Allen-Bradley Bulletin 1606-XLS performance-class DC-UPS controller and charger module. It operates from a 22.5-30 V DC input and provides simultaneous 24 V DC normal output and an auxiliary 12 V DC output via an internal DC/DC converter, using a single 12 V battery to bridge power interruptions. It integrates into industrial control systems to maintain both 24 V and 12 V loads during brownouts, blackouts or start-up conditions. 1606-XLS240-UPSD supports applications requiring dual-voltage buffering and orderly shutdown capability.
Best Suited For
- 24 V and 12 V combined load buffering
- Single-battery DC-UPS applications
- Facility or machine ride-through capability during power loss
- Control systems needing dual output power backup
Input voltage range
22.5-30 V DC
Total power/Output
240 W
Dual output
24 V and 12 V DC
Operating temperature range
-25…+70 °C (-13…+158 °F)
Recharge current
1.3 A
Technical Specifications
I/O & Electrical
Input voltage range
22.5-30 V DC
Total output power
240 W
Output voltages
24 V nominal and 12 V DC (via internal converter)
Recharge (charging) current
1.3 A
Physical & Environmental
Operating temperature
-25…+70 °C (-13…+158 °F)
Derating above 60 °C
0.25 A per °C
Dimensions (W×H×D)
49 × 124 × 117 mm (1.93 × 4.88 × 4.61 in.)
Certifications
Australian RCMEurasion Economic CommunityCECSA Listed HazardousKorean KCUL ListedUL Recognized Hazardous
