Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

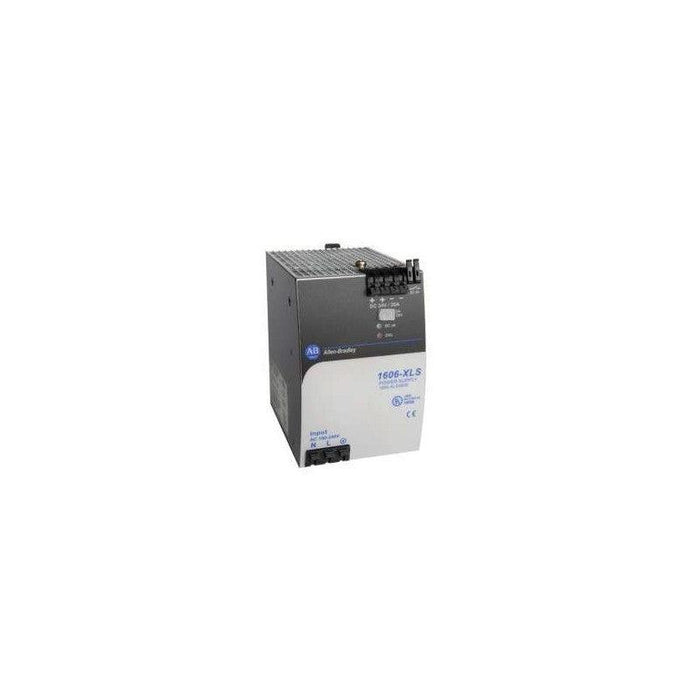

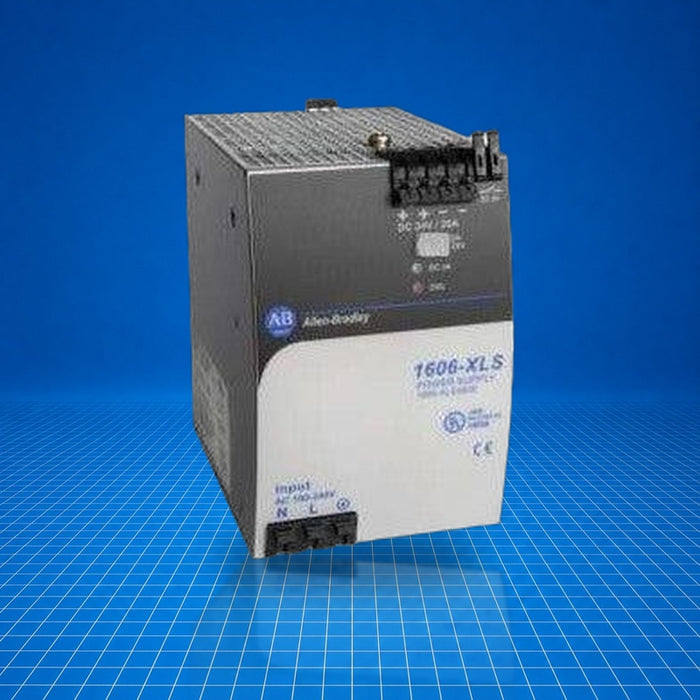

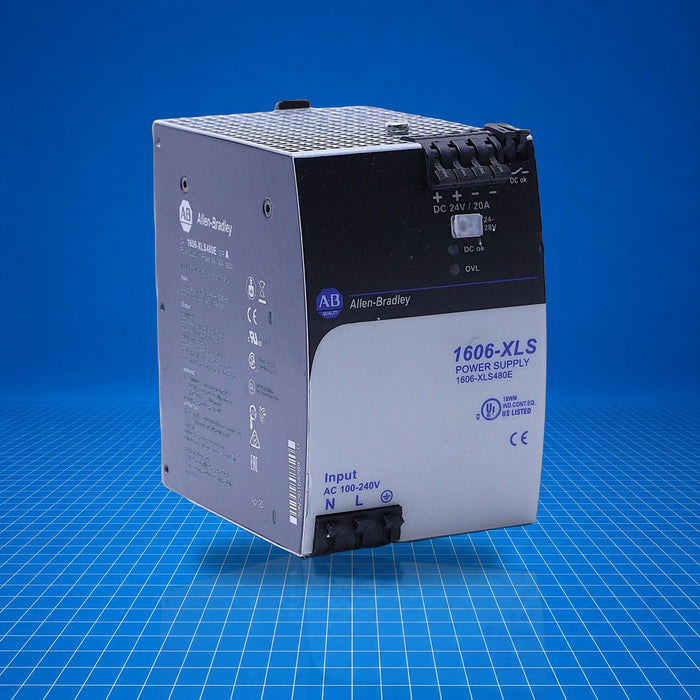

The 1606-XLS480E is an Allen-Bradley XLS family performance power supply module providing 480 W output at 24…28 V DC, up to 20 A. It accepts universal AC input (100…240 V AC, 47-63 Hz) or DC input (110…300 V DC) and supplies stabilized DC power with active inrush limiting, DC-OK relay output, and reserve power capability. It is used in control systems where reliable 24 V DC power is required for logic, I/O, and field devices, particularly in industrial automation and marine applications.
Best Suited For
- DIN-rail mounted 24 V DC control panel power
- Applications requiring 150 % reserve power for several seconds
- Environments requiring marine approvals (ABS/GL/RINA)
- Where power factor correction or DC-OK status needed
- Replacement of 1606-XLS480EE units
Output power
480 W
Output current
20 A @ 24 V DC
Input voltage range
100…240 V AC, 110…300 V DC
Efficiency
94.5 % typical
Dimensions (W×H×D)
82 × 124 × 127 mm
Technical Specifications
I/O & Electrical
Output voltage range
24…28 V DC
Rated output current
20 A @ 24 V DC
Reserve power (typical, 4 s)
30 A @ 24 V DC
Ripple and noise, max
100 mV
Communication & Power
Input voltage range
100…240 V AC, 47…63 Hz; 110…300 V DC
Power losses, typical
31.4 W
Efficiency, typical
94.5 %
Input inrush current
9 A / 7 A
Power factor
0.90 typical
Hold-up time
31 … 51 ms
Derating
12 W/°C
Physical & Environmental
Dimensions (W×H×D)
82 × 124 × 127 mm
Weight
1200 g
Mounting

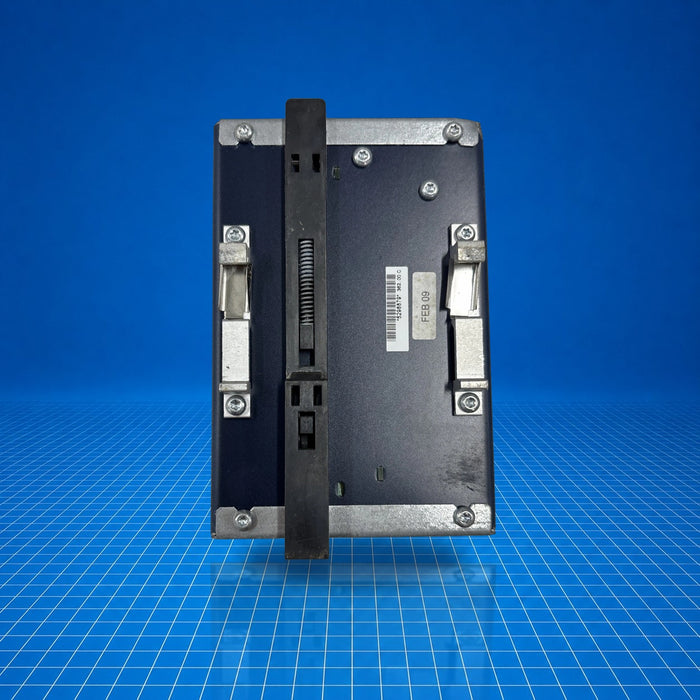

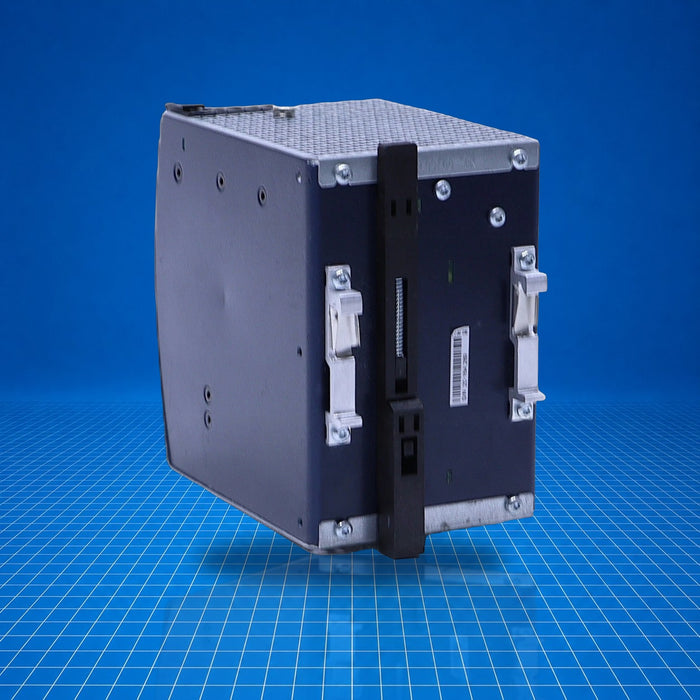

DIN-rail (rail mounting possible), wall mounting possible
Degree of protection
IP20
Operating temperature
-25 … +70 °C (non-operating)
Certifications
ABSGLRINAEurasian Economic CommunityAustralian RCM
Marine classification approvals: ABS, GL, RINA; certified as of May 26, 2026.
