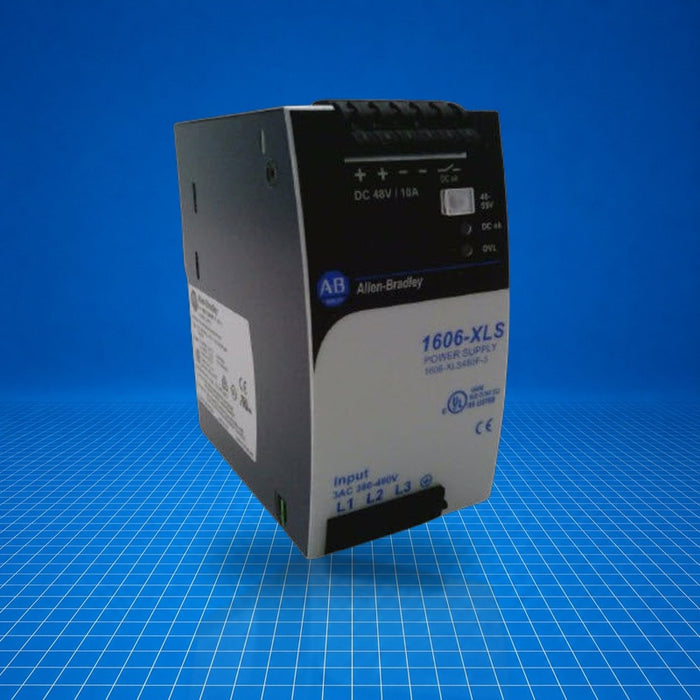

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1606-XLS480F-3 Allen-Bradley
Original price
$720.00
-
Original price
$2,340.00
Original price
$720.00
$720.00
-
$2,340.00
Current price
$720.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1606-XLS480F-3 is a Performance Family DC power supply module providing 48-56 V DC output at up to 480 W when powered by three-phase 380-480 V AC (or 600 V DC). It incorporates active inrush limiting, 'DC OK' relay contact for status monitoring, and supports rail or wall mounting. Typical applications include industrial control panels, on-machine power distribution, marine or Class I Div 2 environments, and process automation systems.
Best Suited For
- Three-phase industrial automation power rail
- Control panel main DC power source
- Marine-rated installations (ABS/GL/RINA)
- Systems requiring DC OK status relay monitoring
Output voltage
48…55 V DC
Output current
10 A (continuous) / 15 A (reserve, typ. 4 s)
Input voltage
380…480 V AC (3-phase), 47-63 Hz
Efficiency (typical)
95.4 %
Technical Specifications
I/O & Electrical
Input voltage
380…480 V AC, 47…63 Hz
Output voltage
48…55 V DC
Output current
10 A continuous @ 55 V DC
Reserve power (typical 4 s)
15 A @ 48 V DC
Inrush current
≈ 3 A
Power factor
≈ 0.94
Power losses
≈ 23.1 W
Ripple & noise (max)
100 mV
Communication & Power
DC OK relay contact
Included
Derating
12 W/°C above 60 °C
Hold-up time (typical)
22 ms
Efficiency
95.4 % typical
Physical & Environmental
Dimensions (W × H × D)
65 × 124 × 127 mm
Weight
870 g
Mounting
DIN-rail or wall
Protection rating
IP20
Operating temperature
-25…+70 °C (derate >60 °C)
MTBF
690 kh @ 40 °C (SN29500)
Lifetime
51 kh @ +40 °C
Certifications
ABSGLRINA
Marine-related ABS/GL/RINA marking; certification status as of May 17, 2026.
