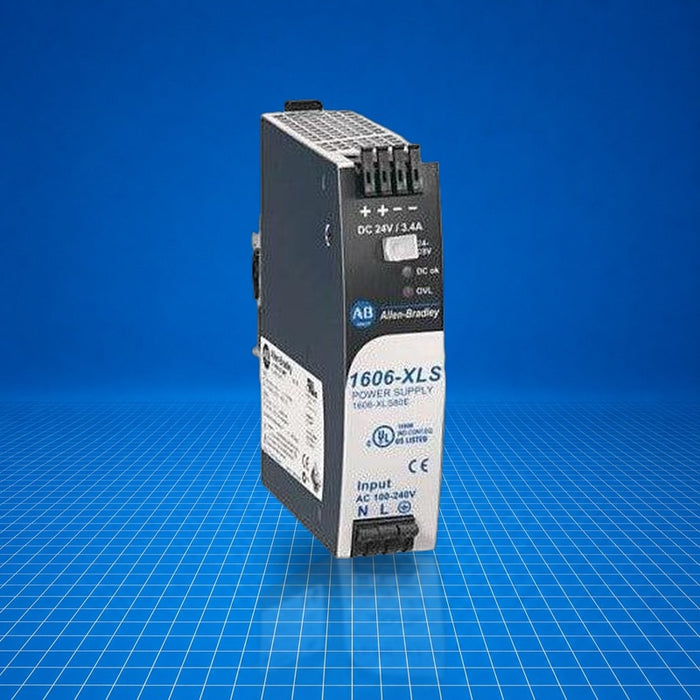

1606-XLS80E Allen-Bradley
Original price
$450.00
-
Original price
$782.20
Original price
$450.00
$450.00
-
$782.20
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1606-XLS80E is an 80 W 24-28 V DC performance DIN-rail power supply from the 1606 XLS family, designed for industrial control systems. It accepts a wide AC/DC input range (100-240 V AC or 88-188 V DC) and delivers up to 3.4 A with built-in active PFC, reserve power, and AC/DC compatibility. It is used to power PLCs, safety relays, HMIs, and control panels in automation and marine applications. Typical uses include supplying distributed control loads in OEM and machinery installations.
Best Suited For
- DIN-rail power for compact PLC or HMI racks
- Machine-control cabinets in OEM systems
- Environments requiring AC or DC single-phase input
- Marine or Class 1 Div 2 installations
- Applications needing short-term reserve-power for motor starts or capacitor charging
Output voltage
24…28 V DC
Output current
3.4 A
Input voltage range
100…240 V AC / 88…188 V DC
Power output
80 W
Efficiency (typical)
90 %
Technical Specifications
I/O & Electrical
Input voltage (AC)
100…240 V AC, 47…63 Hz
Input voltage (DC)
88…188 V DC
Output voltage
24…28 V DC
Rated output current
3.4 A
Power output
80 W
Reserve power (≈ 4 s)
5.4 A @ 24 V DC
Power losses (typical)
9.1 W
Efficiency (typical)
90 %
Power factor (typical)
0.47
Derating
2 W/°C
Ripple and noise, max
100 mV
Physical & Environmental
Mounting
DIN-rail, wall mounting possible
Dimensions (W×H×D)
32 × 124 × 102 mm
Weight
440 g
Operating temperature
-25 °C (lower limit unspecified)
Non-operating temperature
-40 to 85 °C
MTBF
1 451 kh @ 40 °C
Lifetime, min
79 kh @ 40 °C
Degree of protection
IP20
Connection type
Spring-clamp termination
Certifications
Class 1 Div 2ABSGLRINA
Includes active PFC and certified for Class 1 Division 2 and marine standards (ABS/GL/RINA).
