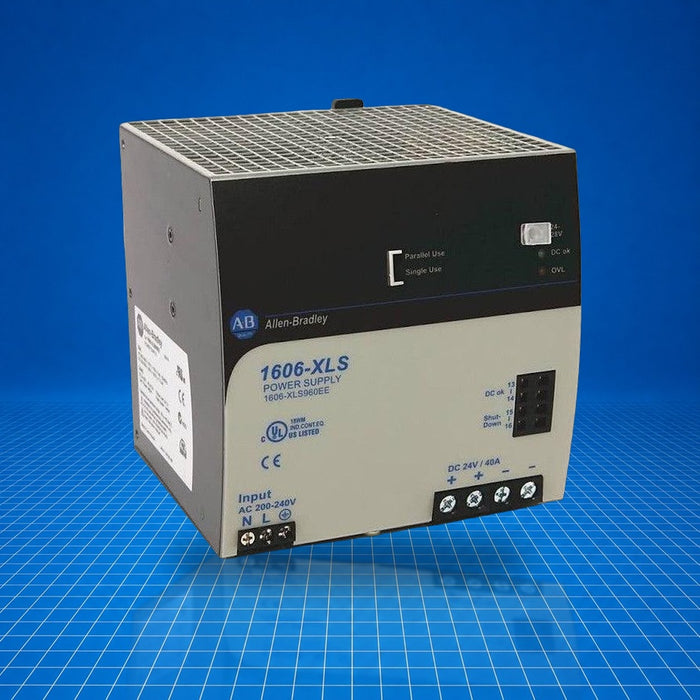

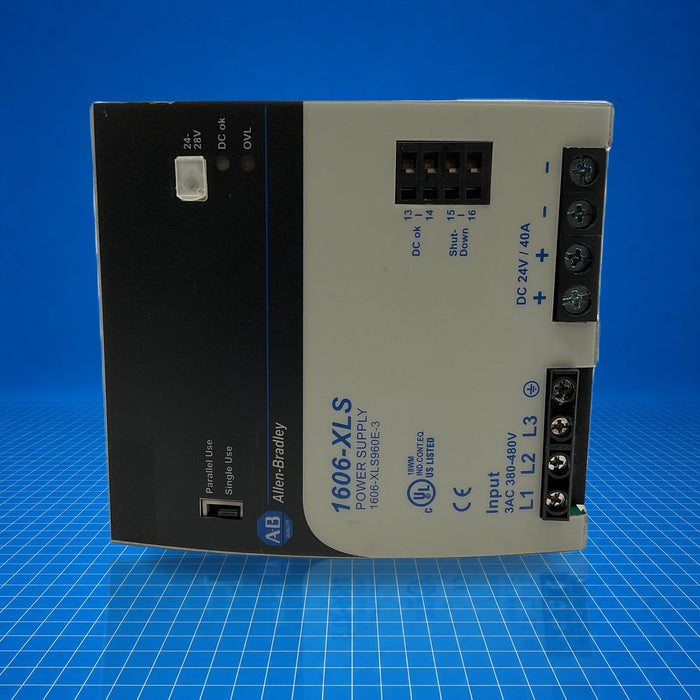

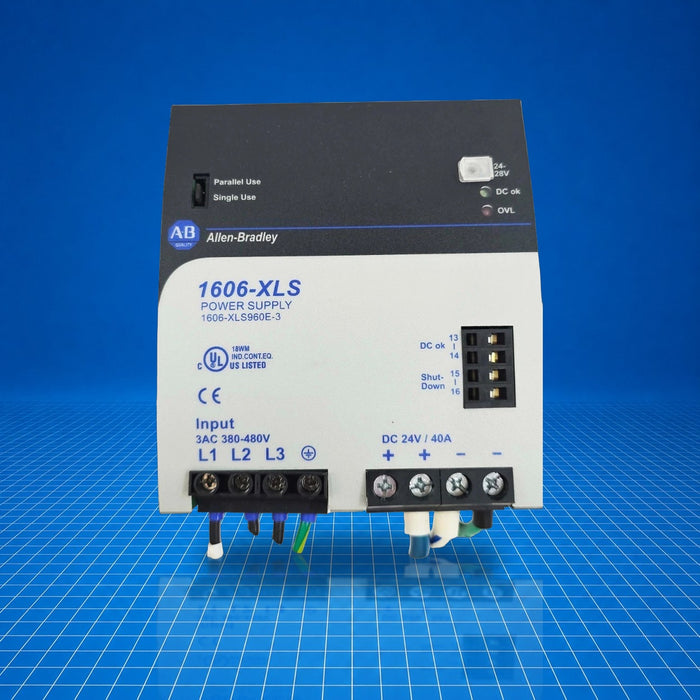

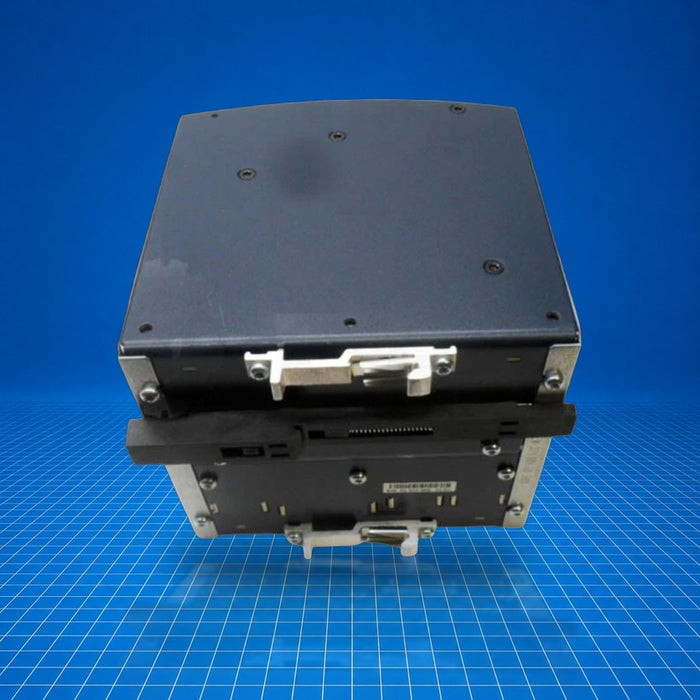

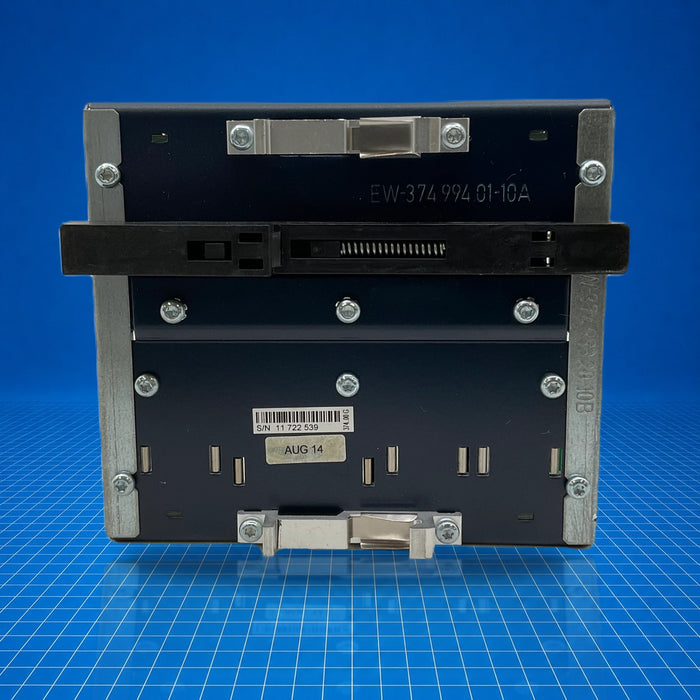

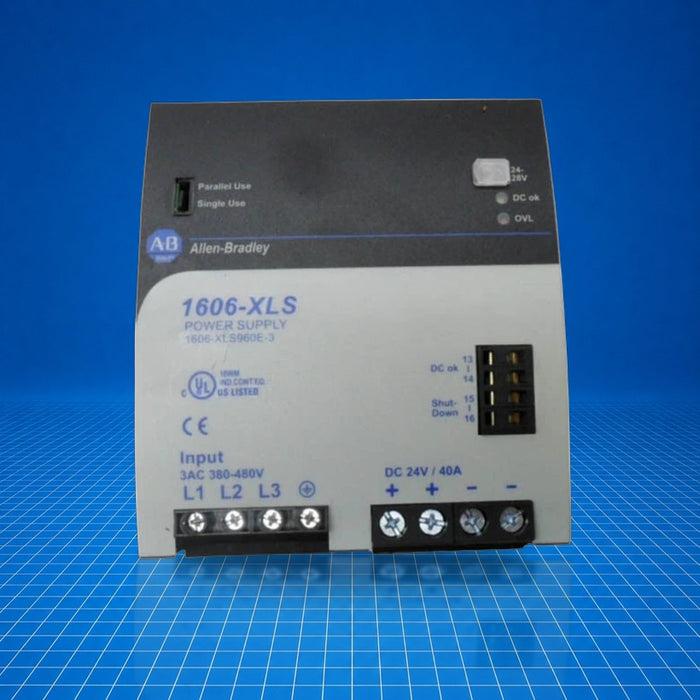

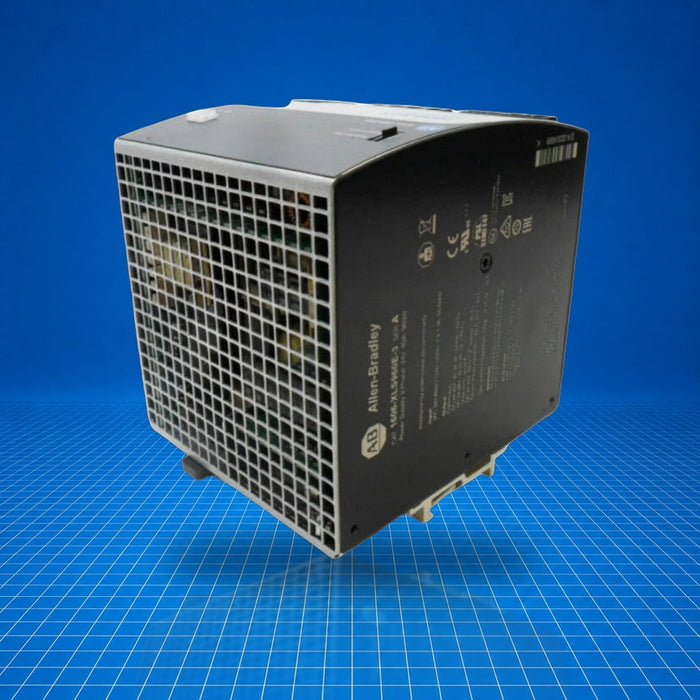

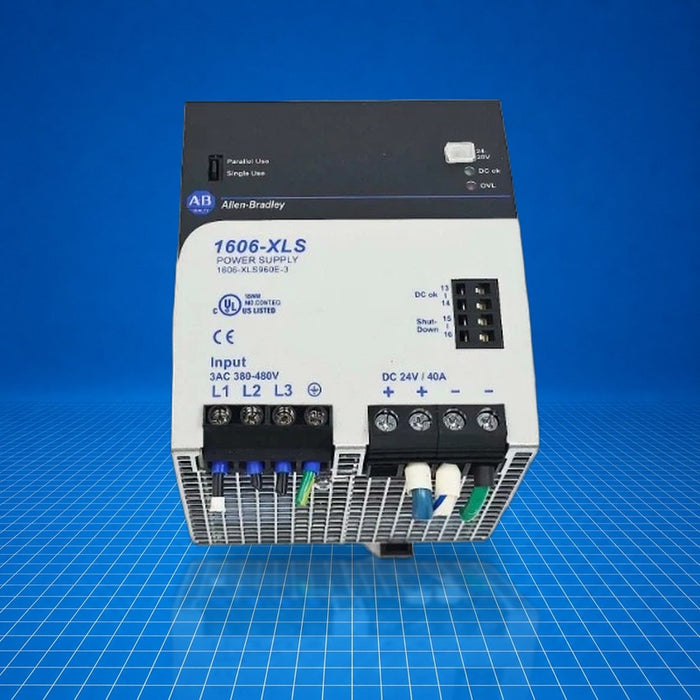

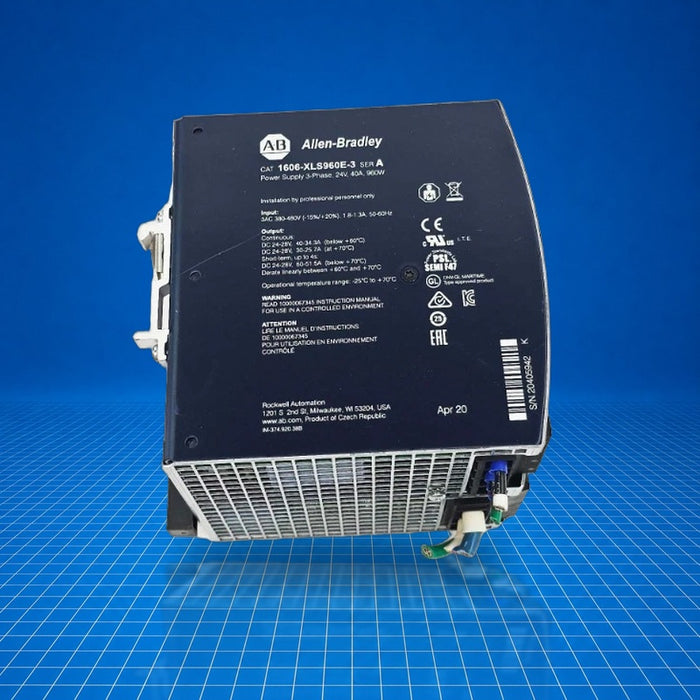

1606-XLS960E Allen-Bradley
Original price
$439.96
-
Original price
$684.75
Original price
$439.96
$439.96
-
$684.75
Current price
$439.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1606-XLS960E is a single-phase Performance Family switched-mode power supply from Allen-Bradley, providing a regulated 24-28 V DC output at up to 40 A continuous (960 W). It accepts 100-240 V AC input (50-60 Hz) and is commonly used to feed logic controllers, I/O modules, and field devices in industrial control panels. Engineered for controls engineers, maintenance personnel and procurement professionals, the 1606-XLS960E ensures stable DC power delivery in factory automation, material handling systems, and machine tool applications.
Best Suited For
- Industrial control cabinet power bus
- PLC and I/O power supply
- Machine tool and processing equipment
- Material handling systems
Output power
960 W
Output voltage range
24-28 V DC
Continuous current
40 A
Ripple and noise, max
100 mV pp
Input voltage range
100-240 V AC
Technical Specifications
I/O & Electrical
Output voltage
24-28 V DC
Continuous output current
40 A
Ripple and noise (max)
100 mV pp
Power reserves (typical)
50 % for short-term load
Communication & Power
AC input voltage range
100-240 V AC
Input inrush current
17 A/11 A typical
External input fuse, min
B-16 A or C-16 A
Efficiency (typical)
94.6 %
Power losses (typical)
54.8 W
Physical & Environmental
Dimensions (W × H × D)
125 × 124 × 127 mm
Weight
1900 g
Operating temperature
-25 … +70 °C
Derating above +60 °C
24 W/°C
MTBF
300 k h
Lifetime, min (+40 °C)
84 k h
Connection terminals
Screw
Degree of protection
IP20
Certifications
Eurasian Economic CommunityAustralian RCM
