1715-TADIF16 Allen-Bradley
Sold out
Original price
$0.00
-
Original price
$1,065.90
Original price
$1,065.90
$0.00
-
$1,065.90
Current price
$1,065.90
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

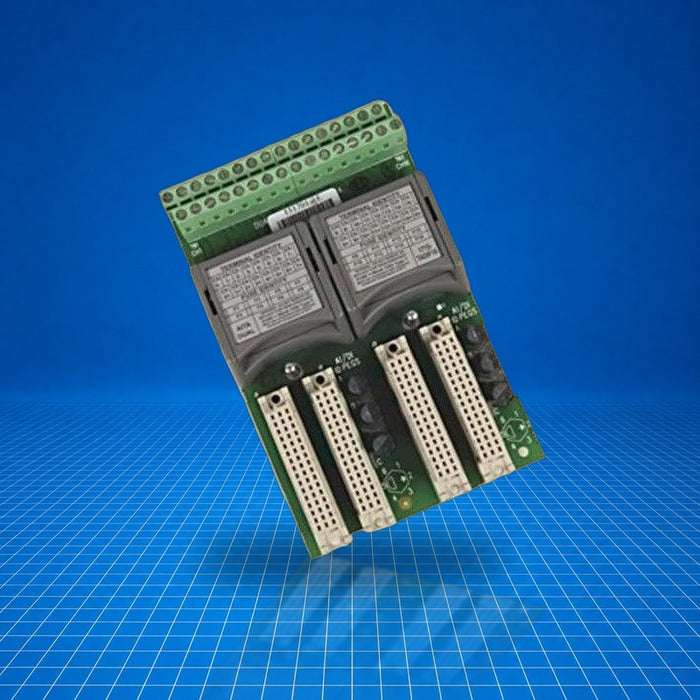

The 1715-TADIF16 is an Allen-Bradley Bulletin 1715 redundant I/O termination assembly providing isolated analog input termination. It mates with up to two 1715-IF16 analog input modules, enabling 16 isolated 4-20 mA input channels over duplex wiring. Designed for redundant control systems, the 1715-TADIF16 enables fault-tolerant analog acquisition in industrial automation, particularly where continuous availability and accurate loop isolation are required. Part number 1715-TADIF16.
Best Suited For
- Redundant analog input modules (1715-IF16) in fault-tolerant systems
- High-availability process control requiring 4-20 mA loop isolation
- DIN-rail mounted control panels with limited space
- Online replacement without interruption of analog signal paths
Channels (Analog Input)
16 isolated
Analog Input Range
0…24 mA per channel @ 18…32 V DC
Power Dissipation
4 W system max
Dimensions (H×W×D)
166 × 42 × 118 mm
Technical Specifications
I/O & Electrical
Analog input current per channel
0…24 mA @ 18…32 V DC
Isolation voltage
50 V (basic insulation, I/O to backplane)
Input resolution
0.0039 mA/count (12-bit, 4…20 mA)
Fuse type per channel
50 mA, 125 V, Type T
Communication & Power
System power dissipation
4.0 W max
Field-loop dissipation
0.075 W per field loop max
Physical & Environmental
Weight
133 g
Dimensions (H×W×D)
166 × 42 × 118 mm
Wire size
0.33…1.5 mm² (22…16 AWG) shielded
Operating temperature
-25…60 °C (surrounding air max 70 °C)
Non-operating temperature
-40…85 °C
Relative humidity
10…95 % non-condensing
Vibration (operating)
2 g @ 10…500 Hz
Shock (operating)
25 g (DIN-rail mount)
Certifications
China CCCDNV-GLUK EX
