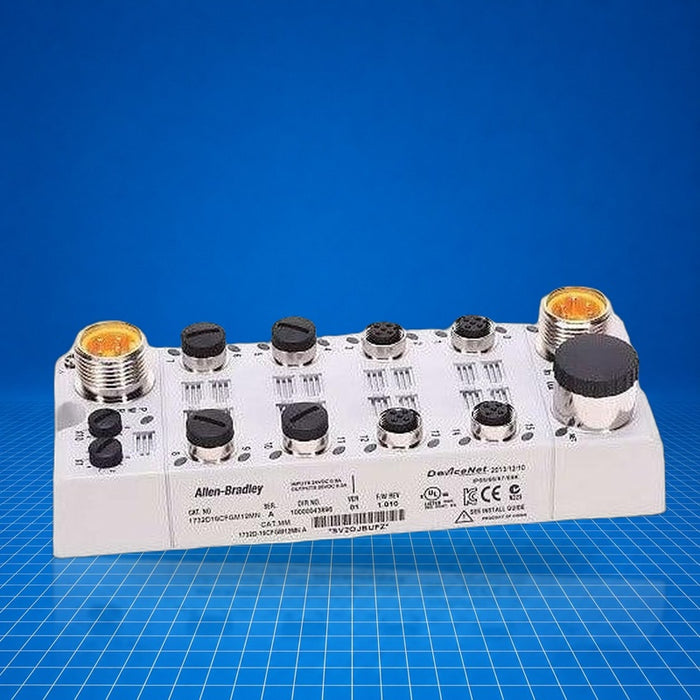

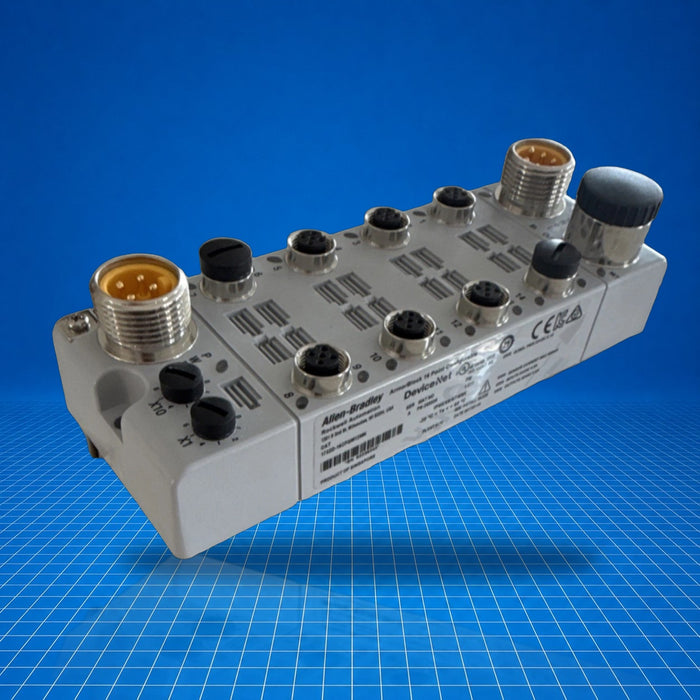

1732D-16CFGM12MN Allen-Bradley
Original price
$568.20
-
Original price
$584.38
Original price
$568.20
$568.20
-
$584.38
Current price
$568.20
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1732D-16CFGM12MN is a DeviceNet-based ArmorBlock digital I/O module offering sixteen self-configuring channels in a compact, rugged DC Micro (M12) form. It belongs to the 1732 ArmorBlock family of I/O modules and enables on-machine mounting close to sensors and actuators, reducing cable runs. It handles both inputs and outputs interchangeably, suitable for machine control, material handling, packaging, and welding environments.
Best Suited For
- Machine-mounted distributed I/O on DeviceNet
- Applications requiring configurable input/output points
- Harsh environments needing high ingress protection
- Short-cable installations in packaging or handling systems
I/O points
16 self-configuring
Network
DeviceNet
Aux power voltage
12-30 V DC
Output current (total)
8 A
Enclosure rating
IP65/66/67/69K, Type 4X/6P
Technical Specifications
I/O & Electrical
Number of I/O points
16 self-configuring
Input voltage (on-state)
11-30 V DC
Input current (on-state)
2-5 mA
Current per input (sensor source)
50 mA
Total sensor source current
800 mA
Output current per point (on-state)
1-500 mA
Total output current
8 A
Auxiliary power voltage range
12-30 V DC
Auxiliary power max current
8 A
Communication & Power
Network
DeviceNet
Isolation voltage
50 V basic between I/O/power and network
Physical & Environmental
Operating temperature
-20…60 °C (-4…140 °F)
Enclosure rating
IP65/66/67/69K and Type 4X/6P
Certifications
UL ListedCEKCEurasianRCM
Certified for CE, UL Listed, Korean KC, Eurasian, Australian RCM as of April 29, 2026.
