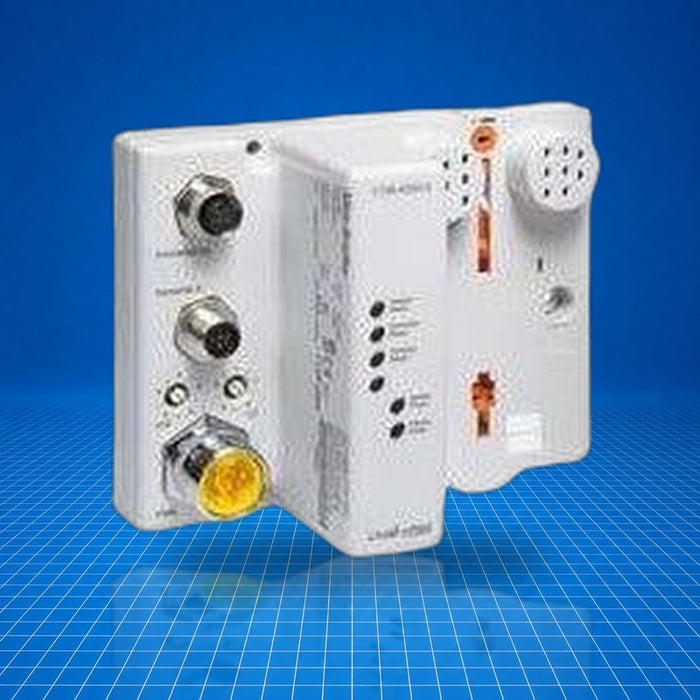

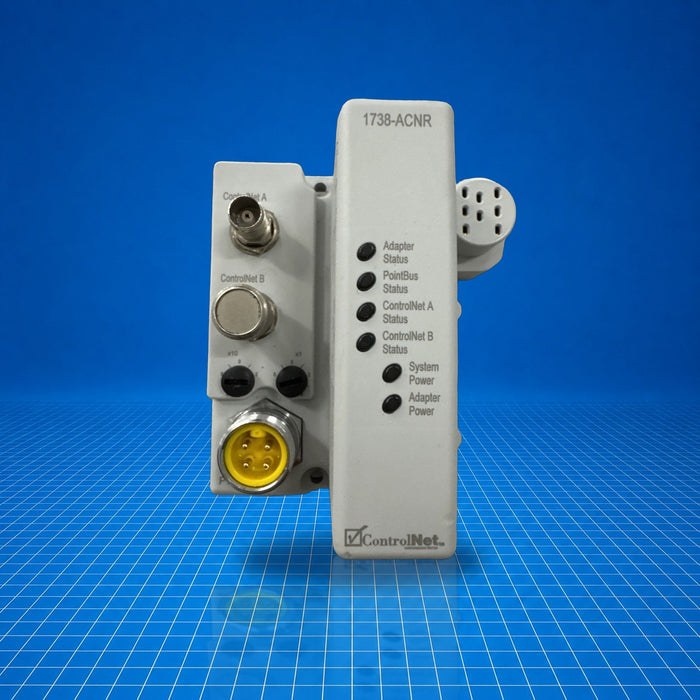

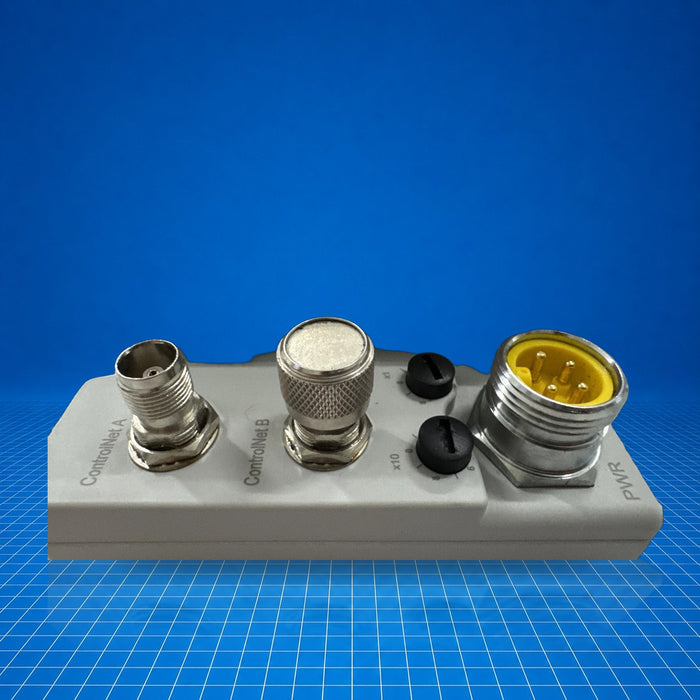

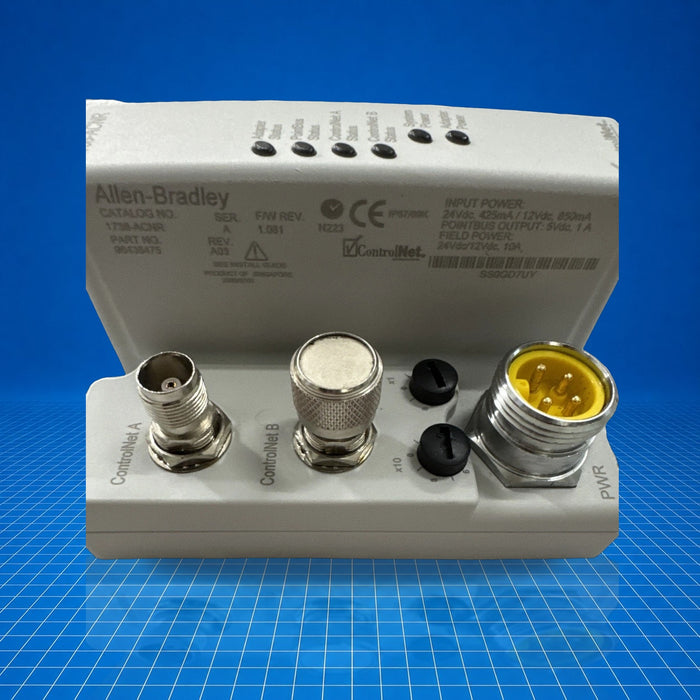

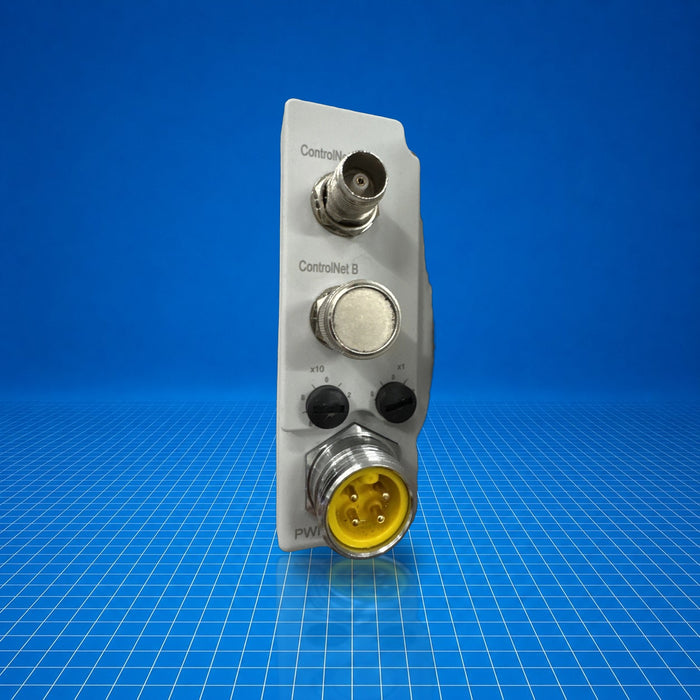

1738-ACNR Allen-Bradley

Name: 1738-ACNR Allen-Bradley
Brand: Allen Bradley
SKU: 1738-ACNR
Price: 450.0 USD
Availability: InStock

$0.00 - $450.00

$450.00

$0.00 - $450.00

$450.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1738-ACNR is an ArmorPOINT I/O ControlNet Adapter by Allen-Bradley. It provides a ControlNet network interface for ArmorPoint I/O modules, enabling deterministic I/O and peer-to-peer data exchange within distributed control systems. Typically installed in industrial machinery, packaging systems or factory automation networks, it supports up to 63 ArmorPoint I/O modules and interfaces with multiple controllers over ControlNet. Part number 1738-ACNR provides the ControlNet network connection and manages I/O backplane power and data flow.

Best Suited For

Distributed ArmorPoint I/O installations needing ControlNet connectivity
Applications requiring deterministic I/O data across multiple controllers
Systems with high I/O counts-up to 63 modules per node
Environments where backplane current supply must be managed or extended

Max I/O Modules

63

Backplane Output Current

1.0 A

Network Connections

Up to 25 direct, 5 rack

Power Dissipation

2.8 W @ 28.8 V DC

Technical Specifications

I/O & Electrical

Field power bus voltage range

10…28.8 V DC

Field power bus supply current, max

10 A

Field side current load

24 V DC (+20 % = 28.8 V DC) @ 400 mA

Backplane current output

1.0 A

Communication & Power

ControlNet power requirements, max

24 V DC (+4 % = 25 V DC) @ 400 mA

Power consumption, max

8.1 W @ 28.8 V DC

Power dissipation, max

2.8 W @ 28.8 V DC

Physical & Environmental

Operating temperature

-20…55 °C (-4…131 °F)

Communication rate, max

128 K bit/s @ 500 m; 250 K bit/s @ 250 m; 500 K bit/s @ 100 m

Isolation voltage

50 V continuous, basic insulation; type tested at 750 V AC for 60 s
