1746-OA8 Allen-Bradley
Original price
$436.00
-
Original price
$460.00
Original price
$436.00
$436.00
-
$460.00
Current price
$436.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

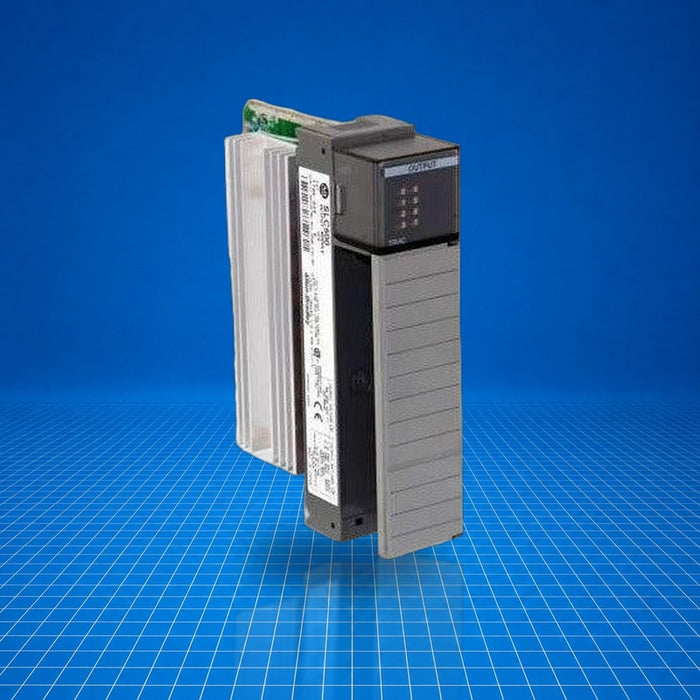

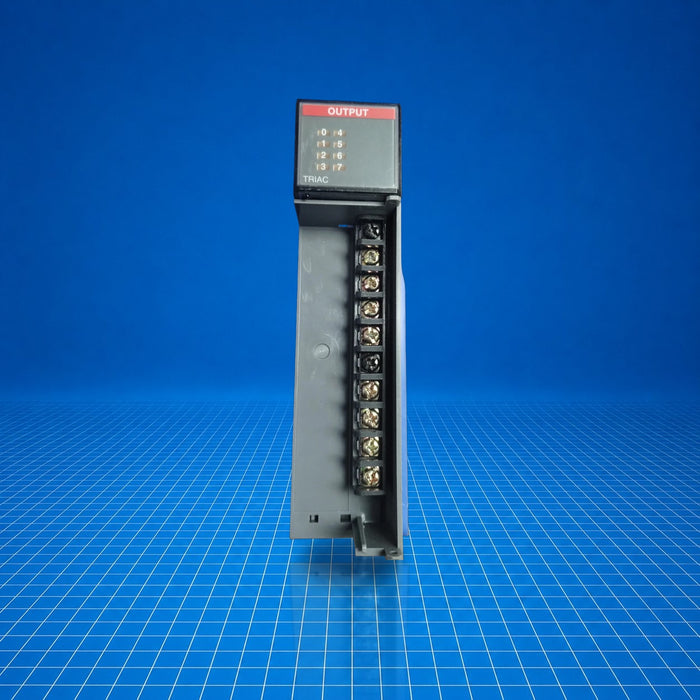

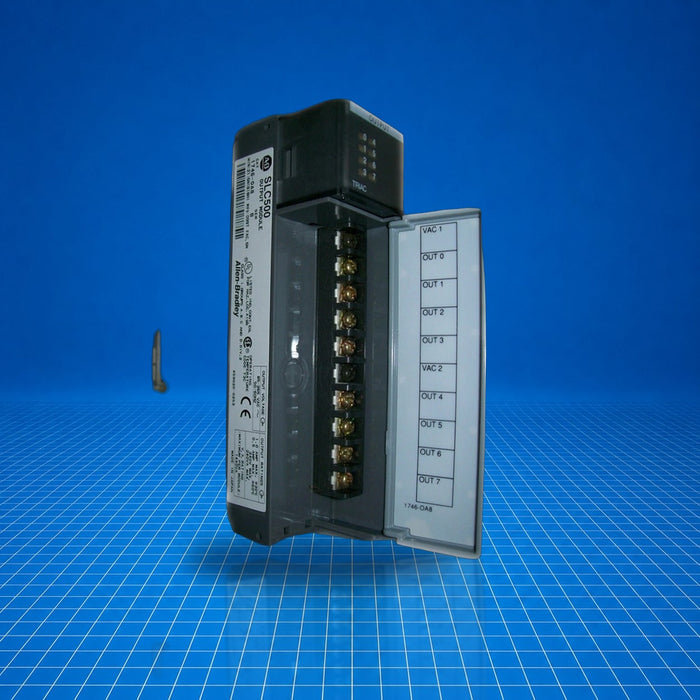

The 1746-OA8 is an Allen-Bradley SLC 500 series discrete AC output module that provides eight triac output channels arranged as two groups of four. It installs in a standard SLC 500 chassis slot (not slot 0) and is used to switch AC loads within industrial control systems, typically in packaging, material handling, motor control, and machine automation applications. Each channel supports control of 100-240 VAC loads, allowing localized AC switching within an SLC control architecture. Part number 1746-OA8.
Best Suited For
- Switching AC loads (100-240 VAC) within SLC 500 systems
- Applications requiring group-based triac outputs
- Control of resistive loads such as solenoids or heaters
- Retrofit or maintenance of legacy SLC 500 installations
Output channels
8
Voltage range
85-264 VAC
Continuous current per point
1.0 A @ 30 °C (0.5 A @ 60 °C)
Backplane current
185 mA @ 5 V DC
Surge current per point
10 A for 25 ms
Technical Specifications
I/O & Electrical
Output channels
8 triac outputs (two groups of 4)
Output voltage range
85-264 VAC (47-63 Hz)
Continuous current, per point
1.0 A @ 30 °C; 0.5 A @ 60 °C
Continuous current, per module
8.0 A @ 30 °C; 4.0 A @ 60 °C
On-state voltage drop (max)
1.50 V @ 1.0 A
Surge (per point, max)
10 A for 25 ms
Backplane current
185 mA @ 5 V DC
Physical & Environmental
Operating temperature
0 to 60 °C (32 to 140 °F)
Storage temperature
-40 to 85 °C (-40 to 185 °F)
Relative humidity
5-95 % non-condensing
Vibration
2.5 g, 57-2000 Hz
Shock
30 g
Isolation
500 V DC between common groups? (from general-purpose spec)
Certifications
UL ListedCSA
UL and CSA certified; meets NEMA ICS 2-230 noise immunity standard
