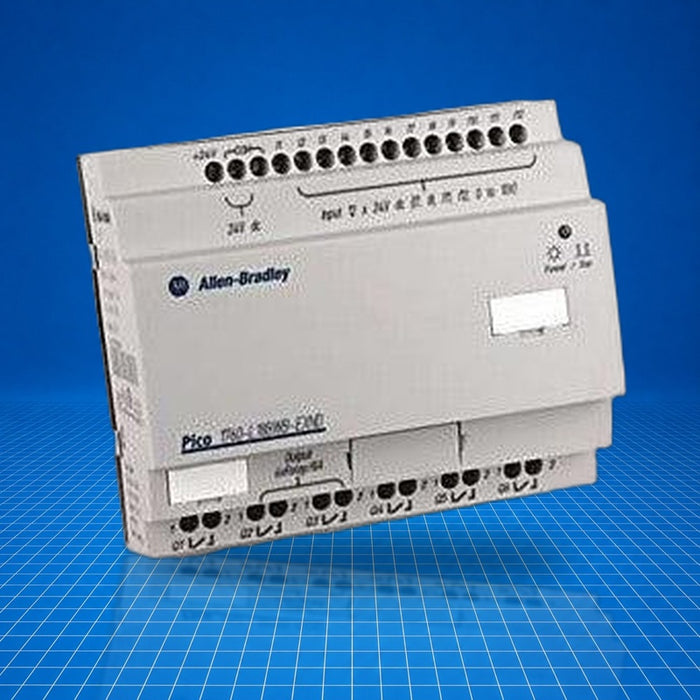

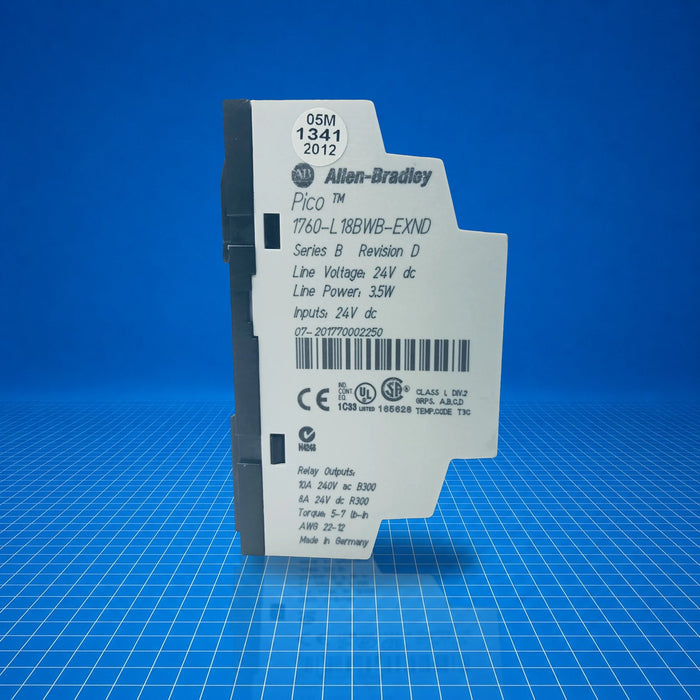

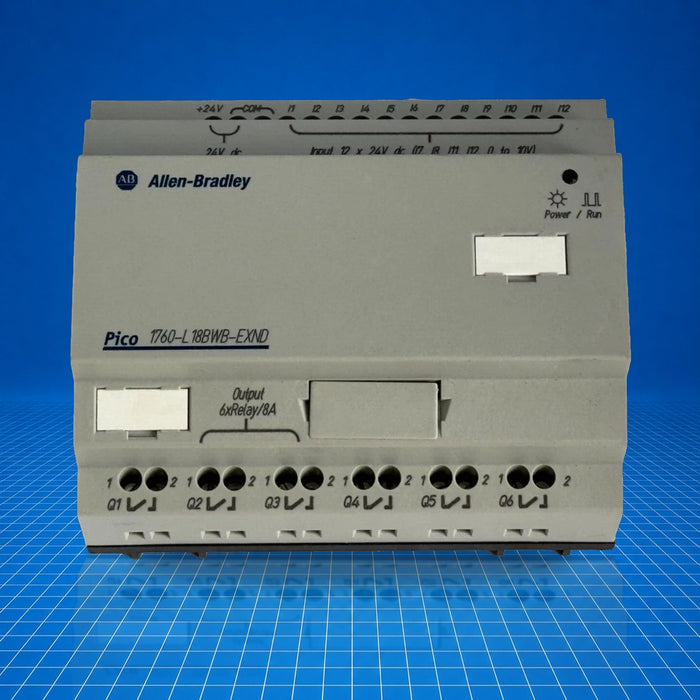

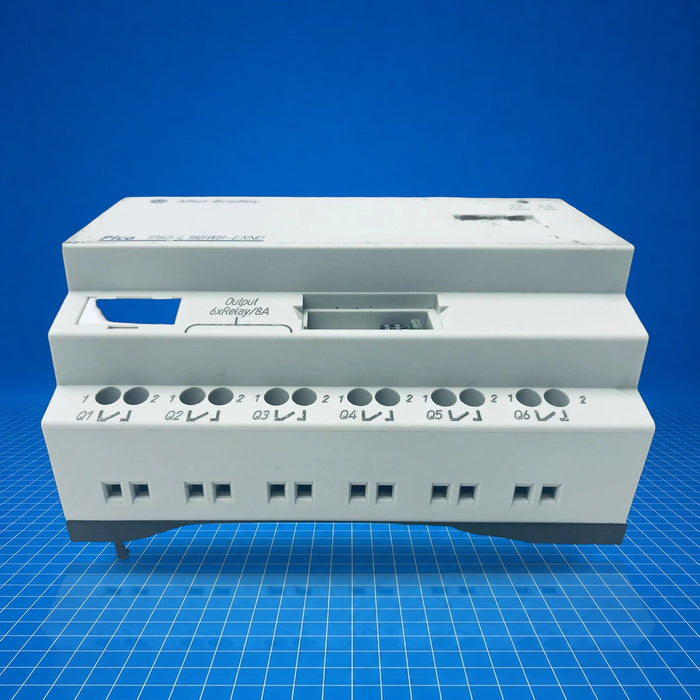

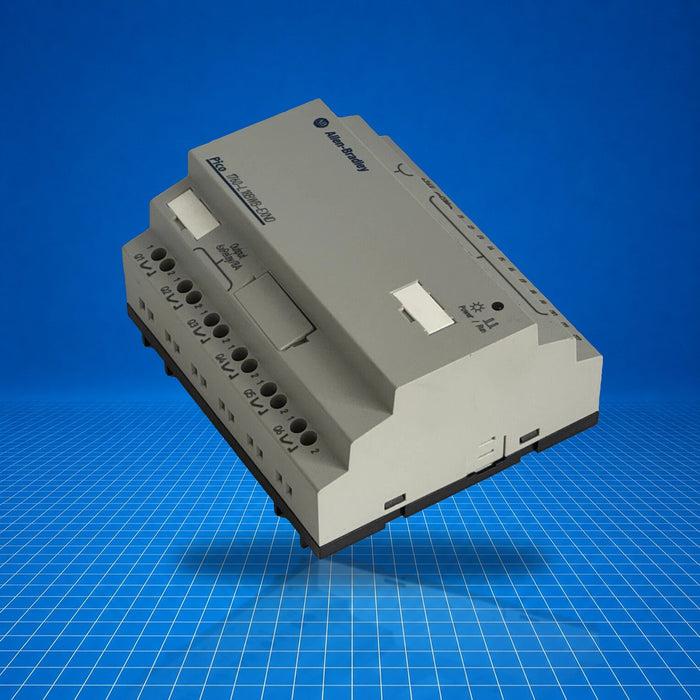

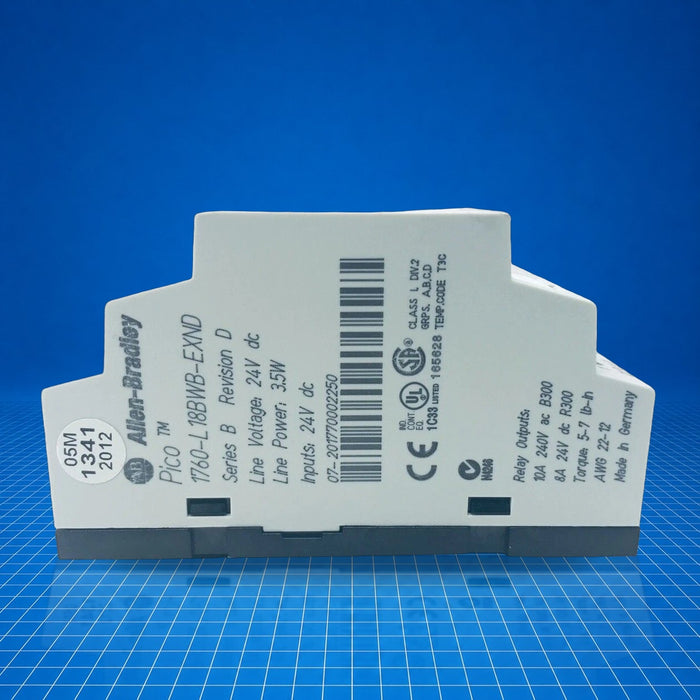

1760-L18BWB-EXND Allen-Bradley
Original price
$822.25
-
Original price
$3,600.00
Original price
$822.25
$822.25
-
$3,600.00
Current price
$822.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1760-L18BWB-EXND is a member of Allen-Bradley's Pico series of compact DC programmable controllers. It functions as a small-scale logic controller providing digital, relay, and analog I/O, and includes a real-time clock-designed for basic control, counting, and timing applications. As an I/O-extension variant (EXND), it omits onboard power and display/keypad, intended for system integration using external power and remote programming. It is commonly applied in retrofit and relay replacement scenarios.
Best Suited For
- Migration from relay logic to modular programmable control
- Compact OEM applications requiring mixed digital and analog I/O
- Small machinery timing, counting and sequencing tasks
- Use where onboard display/keypad and power supply are not required
Digital inputs
12 (24 V DC)
Relay outputs
6
Analog inputs
2 (0…10 V DC)
Real-time clock
Yes
Display/keypad onboard
No
Technical Specifications
I/O & Electrical
Rated voltage
24 V DC
Digital input count
12
Relay output count
6
Analog input count
2 (0…10 V DC)
Off-state voltage (I1-I12, R1-R12)
< 5.0 V DC
On-state current (I1-I6, I9-I12, R1-R12)
3.3 mA at 24 V DC
On-state current (I7, I8)
2.2 mA at 24 V DC
Signal delay, 0 → 1 (debounce off)
Nominal 0.25 ms
Signal delay, 1 → 0 (debounce off)
Nominal 0.2 ms
Communication & Power
Power supplied onboard
No (External power required)
Real-time clock
Yes
