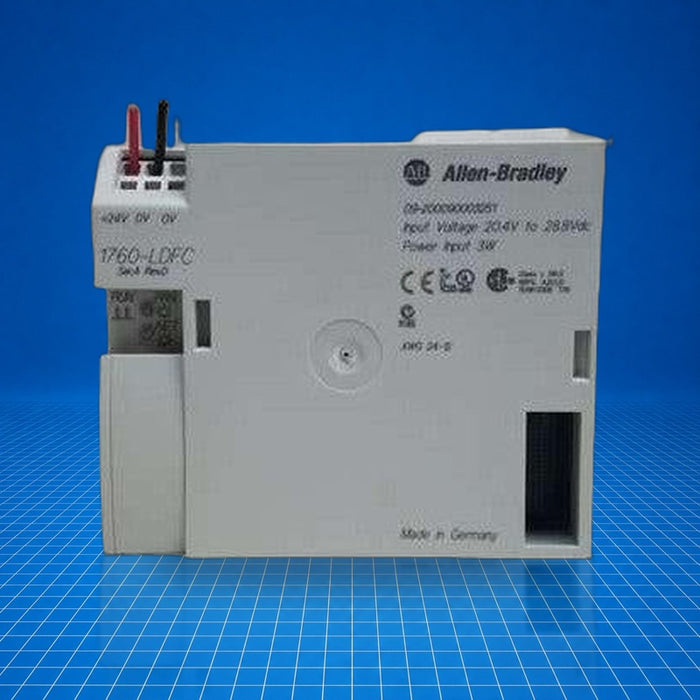

1760-LDFC Allen-Bradley
Original price
$642.96
-
Original price
$703.80
Original price
$642.96
$642.96
-
$703.80
Current price
$642.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1760-LDFC is an Allen-Bradley PicoGFX Processor within the Pico and Pico GFX-70 series. It functions as a programmable logic controller core, providing local control, logic execution, and Pico-Link communication in compact automation systems. The 1760-LDFC typically supports point-to-point serial networking of up to eight processors, making it suitable for standalone machine control, small packaging lines, and modular system partitions. Discontinued as of March 31, 2017, the 1760-LDFC remains relevant in legacy system maintenance.
Best Suited For
- Compact Pico-Link serial networks up to 8 stations
- Machine-level logic processing in Pico GFX-70 systems
- Applications requiring point-to-point serial links
- Replacement or maintenance of discontinued PicoGFX controllers
Input power
24 V DC
Pico-Link ports
2 RJ-45
Network stations
Up to 8 processors
Status LEDs
Power/Run and NET
Technical Specifications
I/O & Electrical
Input voltage
24 V DC (20.4 - 28.8 V DC)
Communication & Power
Pico-Link ports
2 RJ-45 serial
Physical & Environmental
Dimensions (W × H × D)
107.5 × 90 × 30 mm (4.23 × 3.54 × 1.18 in.)
