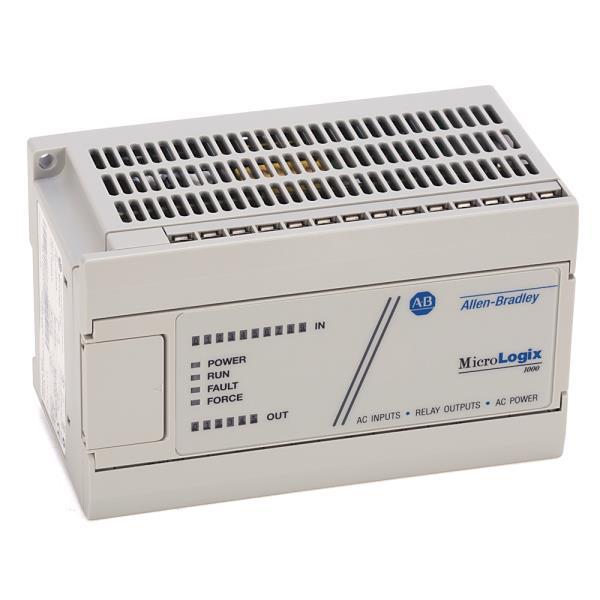

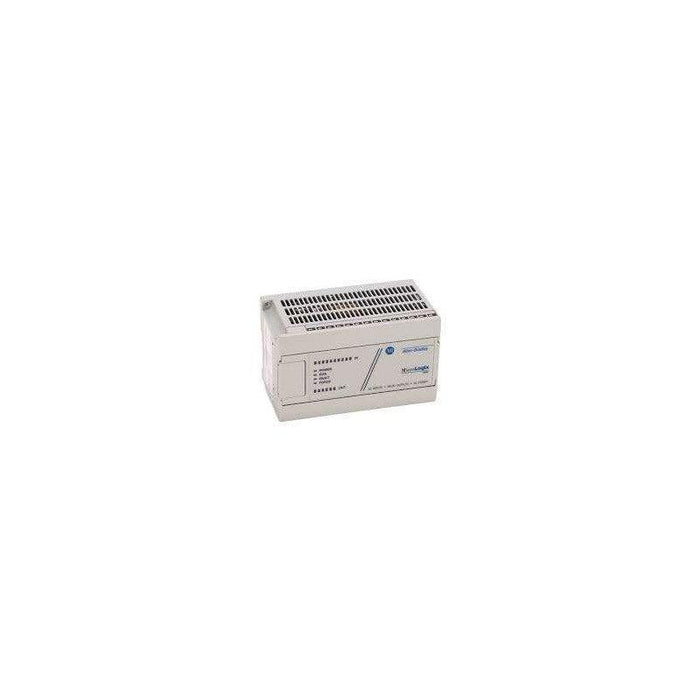

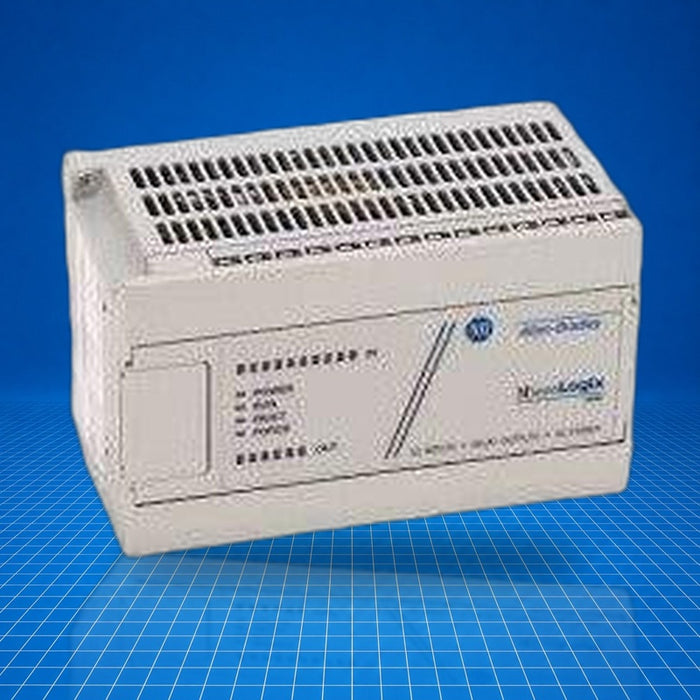

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1761-L16NWB Allen-Bradley

Name: 1761-L16NWB Allen-Bradley
Brand: Allen Bradley
SKU: 1761-L16NWB
Price: 2190.94 USD
Availability: InStock

$0.00 - $2,190.94

$2,190.94

$0.00 - $2,190.94

$2,190.94

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley 1761-L16NWB is a MicroLogix 1000 programmable logic controller providing 16 digital I/O (10 inputs, 6 relay outputs) in a compact enclosure. Powered by 24 V DC, it integrates an RS-232 port supporting DF1 protocol and legacy networks such as DH-485, DeviceNet, and EtherNet/IP. Its function in control systems is to execute logic and I/O handling for small to mid-scale automation tasks. Commonly applied in packaging, conveyor, HVAC and legacy machine control systems, the 1761-L16NWB serves as a drop-in replacement on aging MicroLogix platforms.

Best Suited For

Replacement of legacy MicroLogix 1000 installations
Small machine and conveyor control
HVAC and packaging system logic I/O
On-machine control where compact footprint is required

I/O count

16 digital points

Power supply

24 V DC

Communication

RS-232 (DF1, DH-485, DeviceNet, EtherNet/IP)

Memory

1 K-word EEPROM

Technical Specifications

I/O & Electrical

Digital inputs

10 (24 V AC or 24 V DC)

Digital outputs

6 relay outputs

Communication & Power

Power supply

24 V DC

On-state input voltage (AC)

min 18 V AC, nominal 24 V AC, max 26.4 V AC @ 55 °C / 30 V AC @ 30 °C

On-state input voltage (DC)

min 14 V DC, nominal 24 V DC, max 26.4 V DC @ 55 °C / 30 V DC @ 30 °C

Communication ports

RS-232 (DF1, supports DH-485, DeviceNet, EtherNet/IP)

Physical & Environmental

Dimensions

120 × 40 × 80 mm

Operating temperature

0 - 55 °C (32 - 131 °F)

Mounting

DIN-rail or screw mounting

Shock

operating shock up to 20 g

Certifications

Discontinued
