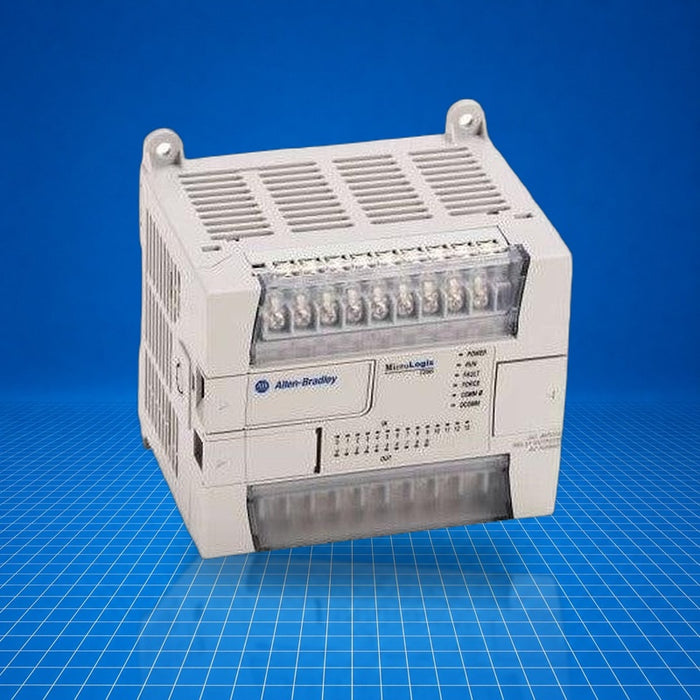

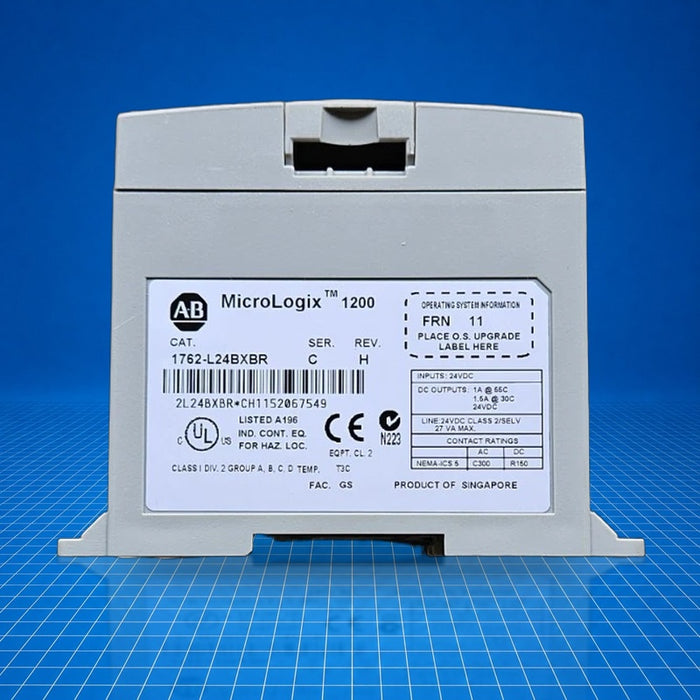

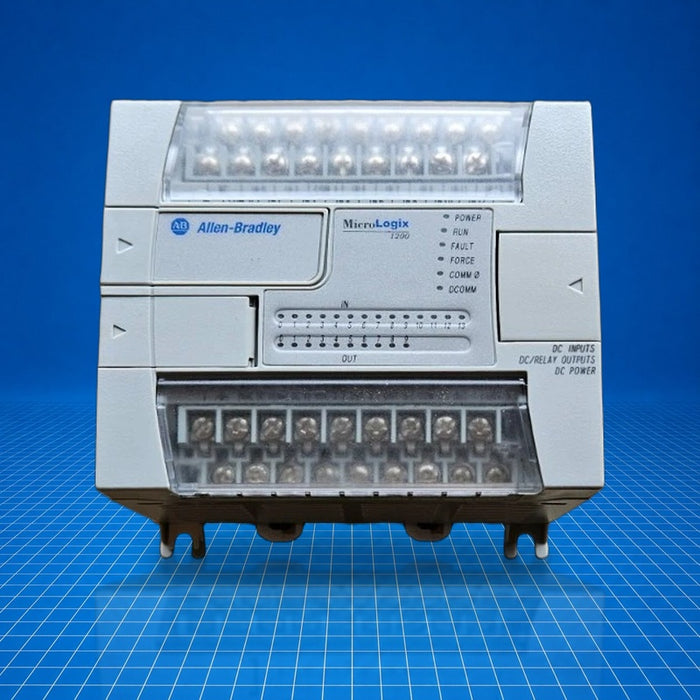

1762-L24BXBR Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1762-L24BXBR Allen-Bradley

$593.97 - $797.50
$593.97
$593.97 - $797.50
$593.97
Surplus - Tested (With Warranty)
Need a Specific Revision?
$593.97
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$797.50
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1762-L24BXBR is an Allen-Bradley MicroLogix 1200 series programmable controller offering 14 embedded discrete I/O points and integrated serial communications. It supports 10 standard 24 V DC inputs, 4 high-speed 24 V DC inputs (up to 20 kHz), and mixed outputs (relay and FET, including one high-speed FET). Intended for compact control tasks, it is commonly used in machine control, basic motion, and local counting or timing applications. The controller includes DF1, DH-485, Modbus RTU, and ASCII support and features a dedicated programming/HMI port. (1762-L24BXBR appears once more).

Best Suited For

  • Small machine or standalone system control
  • Counting, pulse-catch or high-speed input applications
  • Basic motion control using pulse train or PWM output
  • Retrofit or replacement for discontinued MicroLogix 1200 controllers
Inputs (total)
14 discrete (10 standard, 4 high-speed)
Outputs (total)
10 discrete (5 relay, 4 FET, 1 high-speed FET)
Power supply
24 V DC (Class 2 SELV)
Comm ports/protocols
2 serial ports; DF1, DH-485, Modbus RTU, ASCII
Memory
6 KB

Technical Specifications

I/O & Electrical

Digital inputs
10 standard + 4 high-speed 24 V DC (0-20 kHz)
Digital outputs
5 relay; 4 standard 24 V DC FET; 1 high-speed 24 V DC FET (PTO/PWM)
Relay output load
Not specified for this model
FET standard current
Not specified for this model
FET high-speed output timing
Not specified for this model

Communication & Power

Input voltage
24 V DC
Communication ports
2 × RS-232C mini-DIN serial ports (Prog/HMI + primary)
Protocols
DF1, DH-485, Modbus RTU, ASCII
Memory
6 KB

Physical & Environmental

Dimensions (D×H×W)
87 mm × 90 mm × (width not listed)
Weight
0.48 kg (1.06 lb)
Mounting
DIN-rail or panel
Operating temp.
0 to 55 °C
Storage temp.
Not specified
