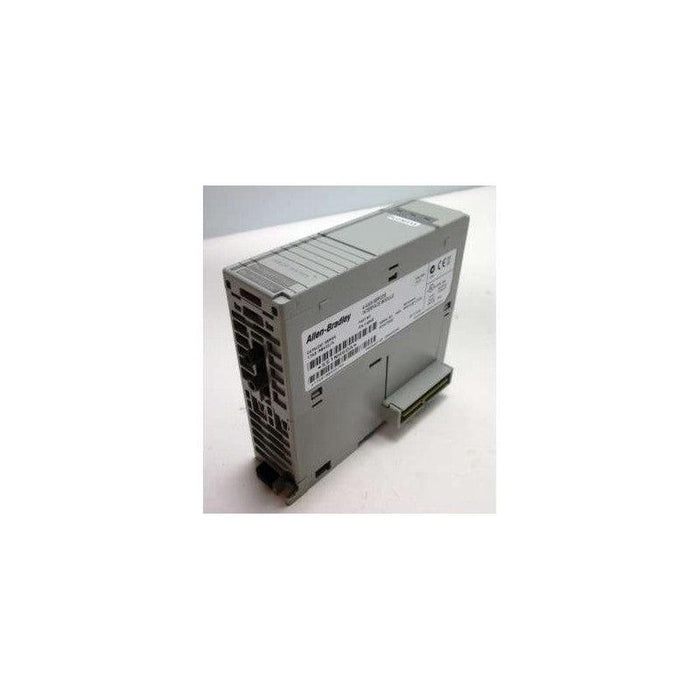

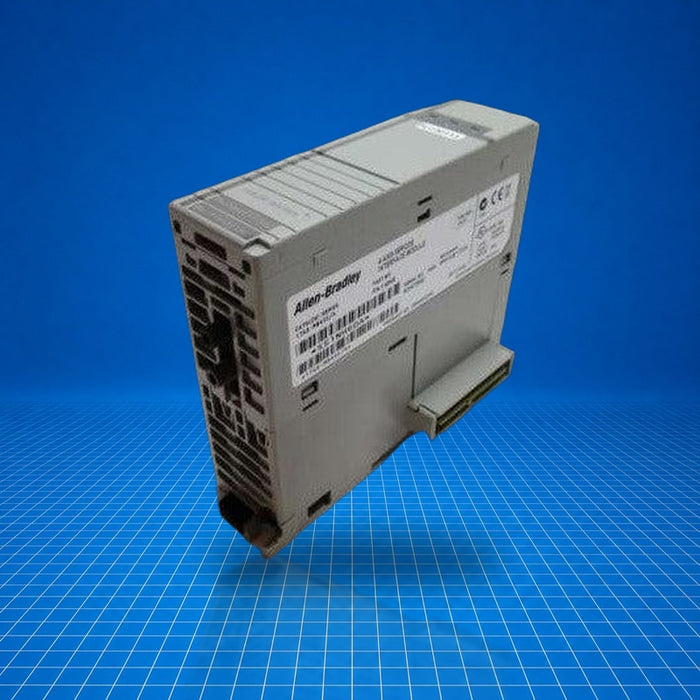

1768-M04SE Allen-Bradley

Name: 1768-M04SE Allen-Bradley
Brand: Allen Bradley
SKU: 1768-M04SE
Price: 450.0 USD
Availability: InStock

$450.00 - $948.72

$450.00

$450.00 - $948.72

$450.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1768-M04SE is an Allen-Bradley CompactLogix SERCOS motion interface module that provides a 4-axis SERCOS communication link between CompactLogix controllers and Kinetix servo drives. It integrates into the Logix platform to coordinate multi-axis motion control over fiber-optic SERCOS channels. Typical uses include medium-scale synchronized motion systems in packaging, material handling, and machine tool applications. 1768-M04SE serves as an interface module within CompactLogix automation systems.

Best Suited For

4-axis synchronized motion control with CompactLogix
Integration with Kinetix 6200/7000 servo drives via SERCOS
Fiber-optic communication in noisy industrial environments
Machine OEMs needing CompactLogix-based multi-axis motion interfaces

Communication protocol

SERCOS (fiber-optic)

Axes supported

4

Backplane current

969 mA @ 5.2 V DC

Module status

Discontinued (as of Dec 31 2020)

Technical Specifications

I/O & Electrical

Backplane current

969 mA @ 5.2 V DC

Communication interface

SERCOS fiber-optic

Communication & Power

Communication

SERCOS

Backplane power supply

5.2 V DC (via backplane)

Physical & Environmental

Overall dimensions (HxWxD)

132.0 × 56.68 × 105.1 mm

Installed (with mounting tabs)

132.0 × 34.5 × 105.1 mm

Installed (without mounting tabs)

118 × 34.5 × 105.1 mm
