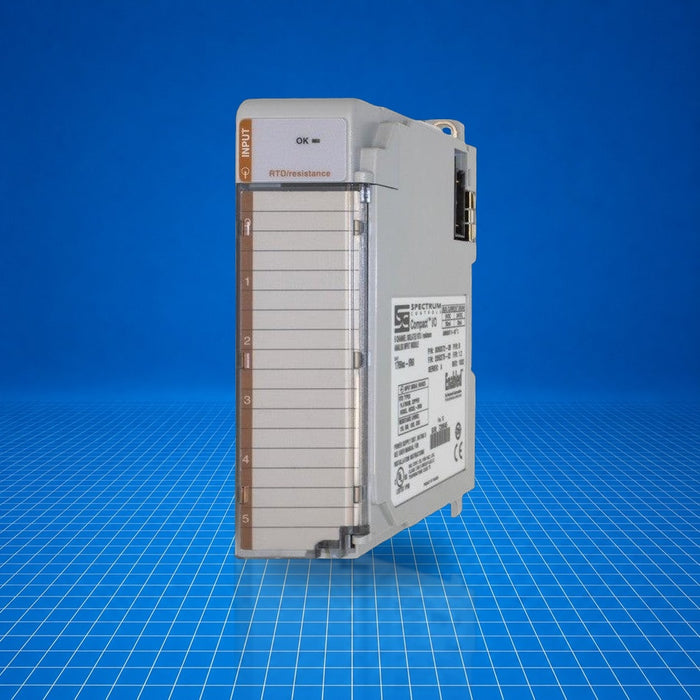

1769sc-IR6I Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1769sc-IR6I Allen-Bradley

$0.00 - $1,598.00
$1,598.00
$0.00 - $1,598.00
$1,598.00
Surplus - Tested (With Warranty)
Get Pricing ~5 mins
New / Open-Box Surplus
Need a Specific Revision?
$1,598.00
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1769-IR6I is a CompactLogix module within the Allen-Bradley 1769 I/O family that provides six RTD/resistance input channels. It integrates into Compact I/O racks to acquire temperature or resistance measurements, suitable for process monitoring, HVAC control, or machinery temperature feedback. The module communicates via the CompactLogix I/O backplane, enabling direct integration in L-series systems. Typical use cases include temperature logging, thermal process control, and any application requiring precise RTD input acquisition. Part number 1769-IR6I is interchangeable with 1769-IR6.

Best Suited For

  • Panel-mounted CompactLogix I/O racks
  • RTD temperature monitoring in process or HVAC systems
  • Applications requiring per-channel diagnostics
  • Integration into CompactLogix controllers via backplane
Channels
6 RTD/resistance inputs
Input ranges
0…150 Ω, 0…500 Ω, 0…1000 Ω, 0…3000 Ω
Power consumption
100 mA @ 5.1 V DC; 35 mA @ 24 V DC
Isolation voltage
720 V DC for 1 min; channel-to-bus reinforced insulation

Technical Specifications

I/O & Electrical

Inputs
6 RTD/resistance channels
Input ranges
0…150 Ω; 0…500 Ω; 0…1000 Ω; 0…3000 Ω
Input impedance
> 10 MΩ
Common-mode voltage range
±10 V DC max
Common-mode rejection
110 dB @ 50/60 Hz (10 Hz/50 Hz filter)
Normal-mode rejection
70 dB @ 50/60 Hz (10 Hz/50 Hz filter)

Communication & Power

Power supply current @ 5.1 V DC
100 mA
Power supply current @ 24 V DC
35 mA
Heat dissipation, max
1.5 W

Physical & Environmental

Dimensions (H×W×D)
118 × 35 × 87 mm (height with tabs 138 mm)
Weight
276 g (0.61 lb)
Mounting
DIN-rail or panel
Ambient operating temperature
0 °C to 60 °C
Storage temperature
-40 °C to 85 °C

Certifications

Registro Italiano NavaleAmerican Bureau of ShippingMOROCCO DOCUKCA

Certifications listed as of May 20 2026 include Registro Italiano Navale, American Bureau of Shipping, MOROCCO DOC, UKCA. See product label for specific unit compliance.
