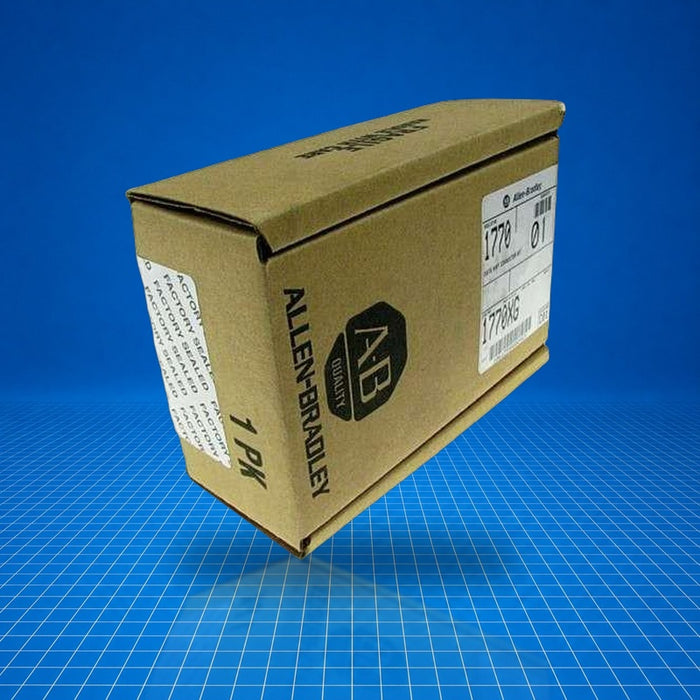

1770-XG Allen-Bradley
Original price
$715.92
-
Original price
$1,436.40
Original price
$1,436.40
$715.92
-
$1,436.40
Current price
$1,436.40
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1770-XG is an Allen-Bradley Data Highway Connector Kit used to connect a dropline to a trunkline segment in the Data Highway or Data Highway Plus network infrastructure. It contains the necessary connectors and hardware to form station-level connections within programmable controller networks using twinaxial cable. The 1770-XG serves in industrial control systems to interface individual stations to the main communication trunk, commonly employed in PLC-based process control or discrete automation installations. 1770-XG is keyed for use per station on the network.
Best Suited For
- Data Highway station setups
- Connecting droplines to trunkline segments
- PLC-based communication networks
- Field station integration
Contains
T-connector, jack connector, plug connector, 15-pin connector with right-angle hood, terminators
Network context
Data Highway / Data Highway Plus
Use per station
One kit per station
Termination requirement
Requires 150 Ω terminators (not included)
Technical Specifications
Communication & Power
Connectors included
T-connector, jack, plug, 15-pin connector and hood, terminators
Twinaxial cable spec
Used with 1770-CD or Belden 9463 twinaxial cable
Trunkline length
Up to 10,000 ft
Dropline length
Up to 100 ft
