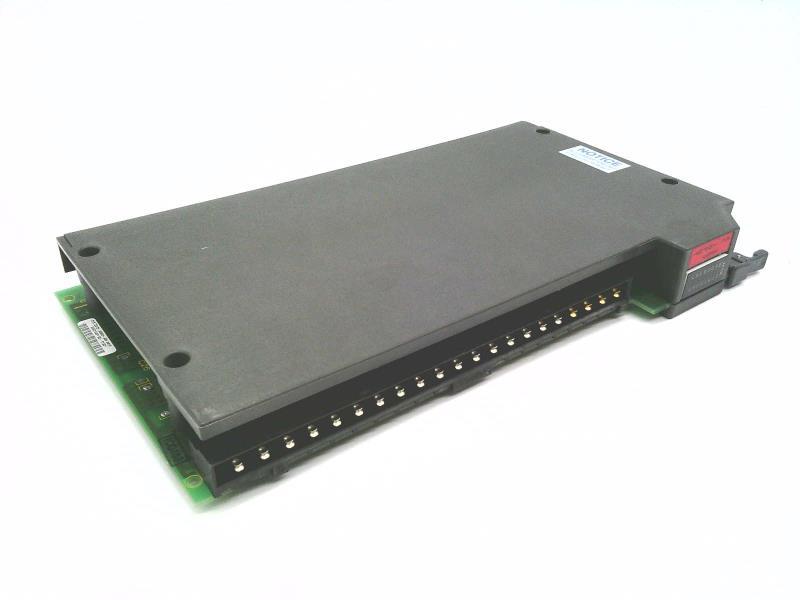

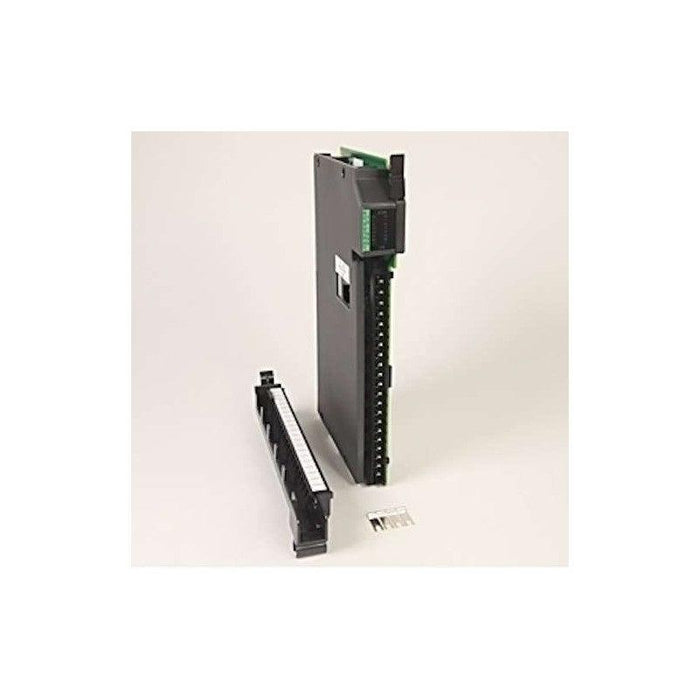

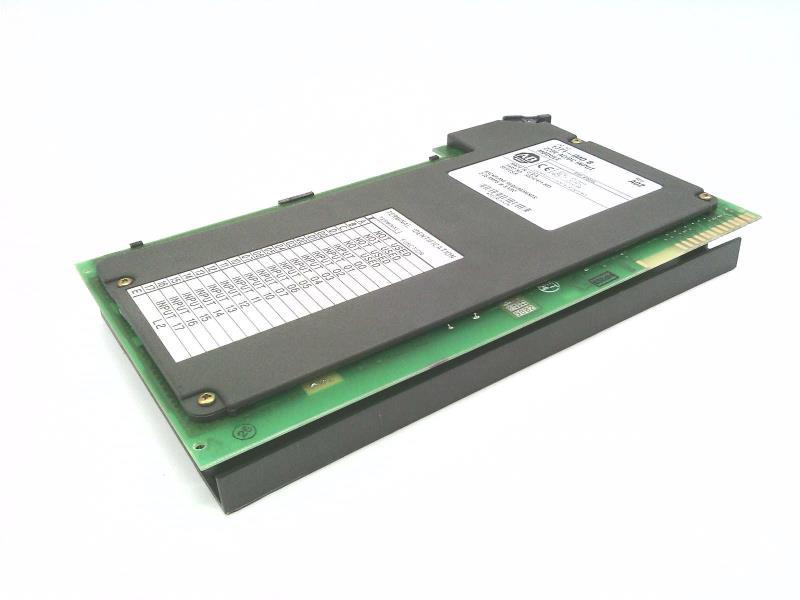

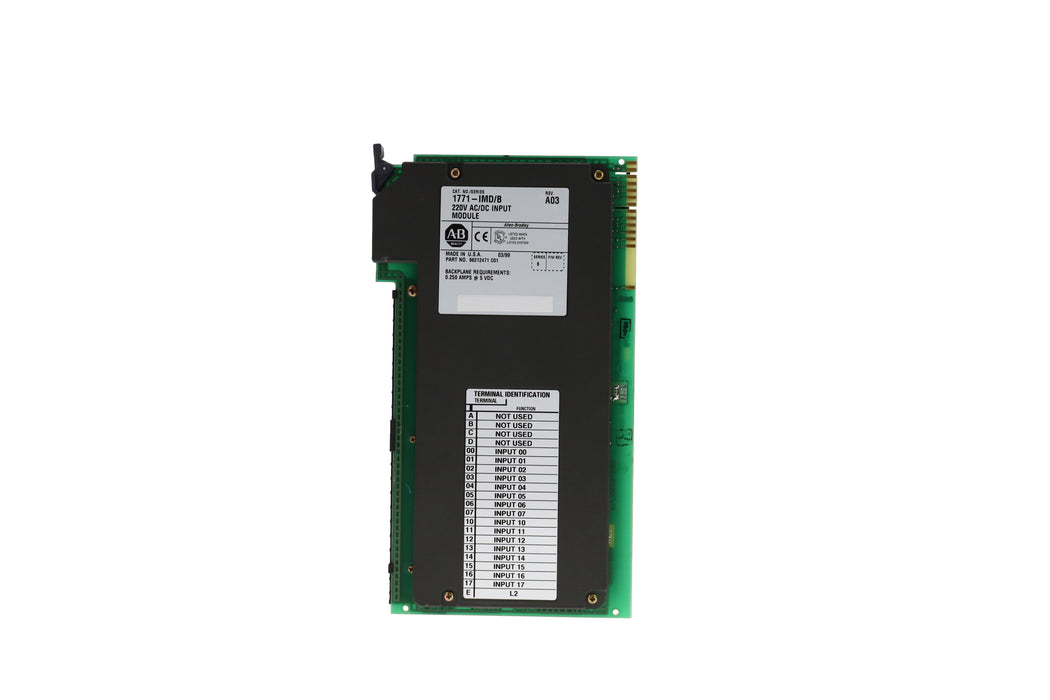

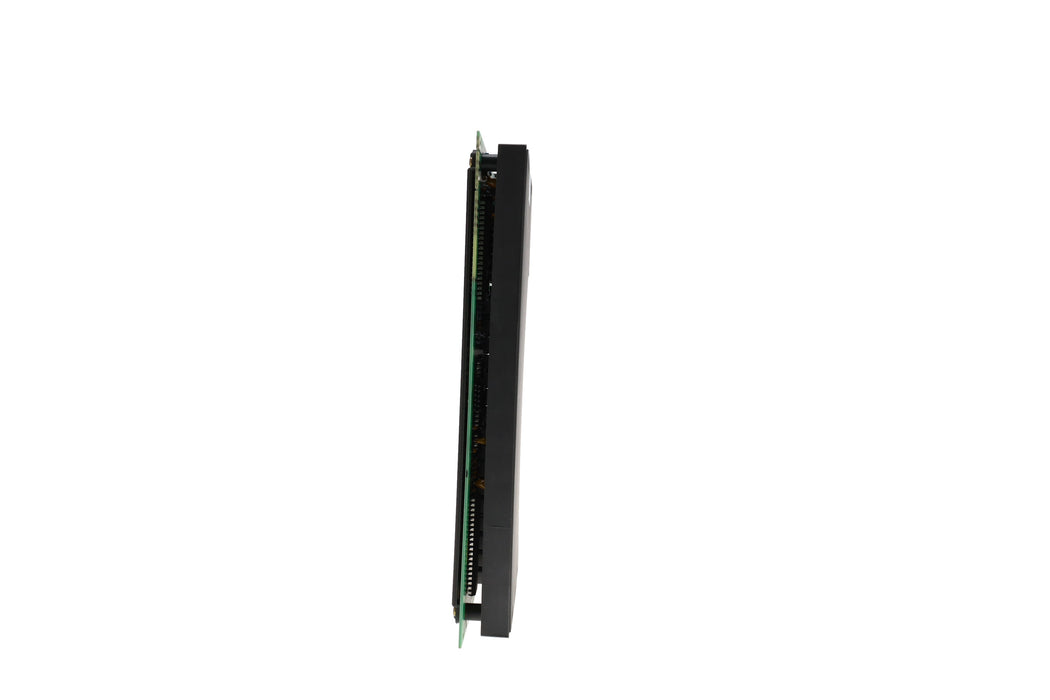

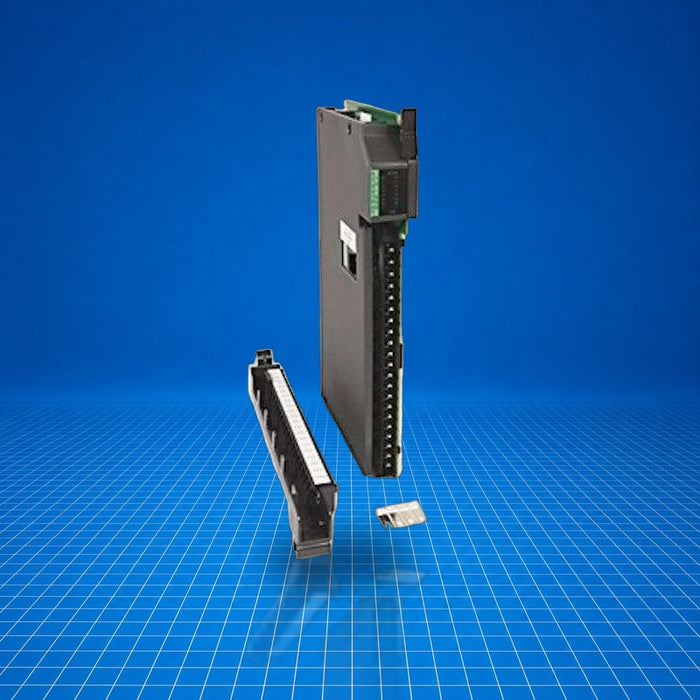

1771-IMD Allen-Bradley
Original price
$480.00
-
Original price
$2,688.75
Original price
$480.00
$480.00
-
$2,688.75
Current price
$480.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1771-IMD is a digital AC/DC input module from the Allen-Bradley PLC-5 1771 family. It provides 16 field-wiring inputs for monitoring industrial devices using nominal 220 V AC (50/60 Hz) or 220 V DC signals. The module installs into a 1771 B-Series I/O chassis, communicates input status via the backplane to the processor, and includes front-panel LED indicators for diagnostics. It is suited to legacy PLC-5 control systems requiring isolated high-voltage discrete input interfaces. Part number 1771-IMD is referenced throughout.
Best Suited For
- Legacy PLC-5 systems requiring 220 V AC/DC discrete input monitoring
- High-voltage discrete signal interfacing (e.g. limit switches, selectors)
- Retrofit or refurbishment of existing 1771-B chassis installations
- Applications needing per-channel LED status indication
Inputs
16
Nominal voltage
220 V AC/DC
Backplane current
250 mA @ 5 V DC ±5 %
Power dissipation
1.3 W (min), 5.8 W (max)
Signal delay (Off→On)
15 ± 8 ms
Technical Specifications
I/O & Electrical
Number of inputs
16
Nominal input voltage
220 V AC @50/60 Hz; 220 V DC
On-state voltage range
184-250 V AC; 166-230 V DC
On-state current (typical)
9.9 mA @220 V AC 50 Hz; 10.4 mA @220 V AC 60 Hz; 0.6 mA @220 V DC
Off-state voltage (max)
92 V AC or DC
Off-state current (max)
3 mA @92 V AC; 0.25 mA @92 V DC
Input impedance
0.15 µF cap (21.2 kΩ @ 50 Hz) ∥ 370 kΩ in series with 1 kΩ
Signal delay Off→On
15 ± 8 ms (AC & DC)
Signal delay On→Off
172 ± 56 ms (AC & DC)
Communication & Power
Backplane current
250 mA @ 5 V DC ±5 %
Power dissipation
1.3 W (min), 5.8 W (max)
