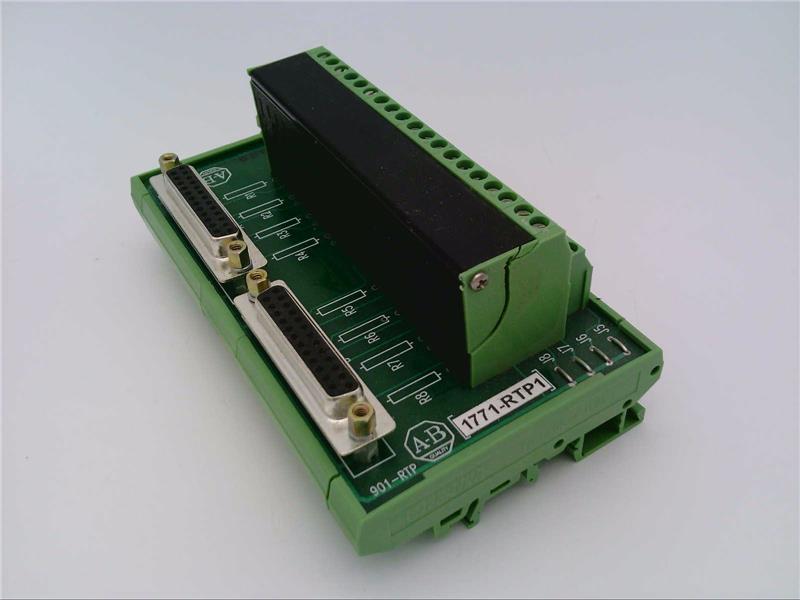

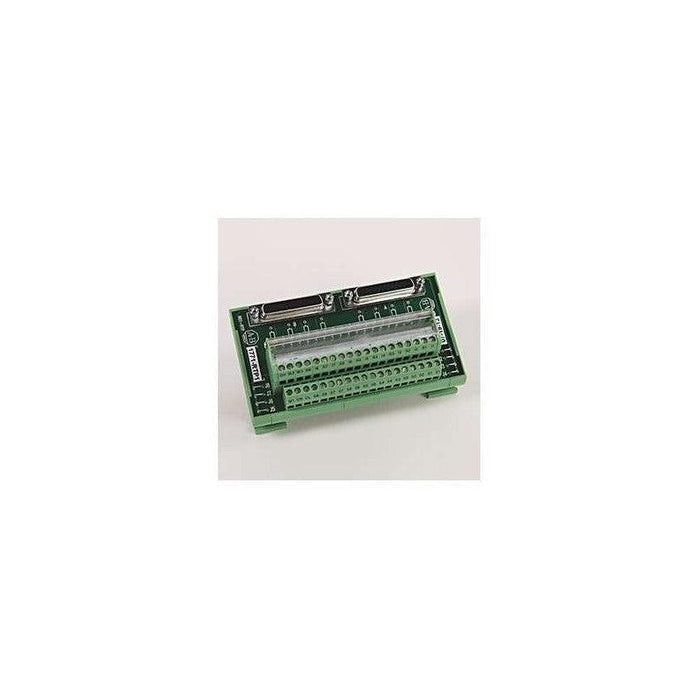

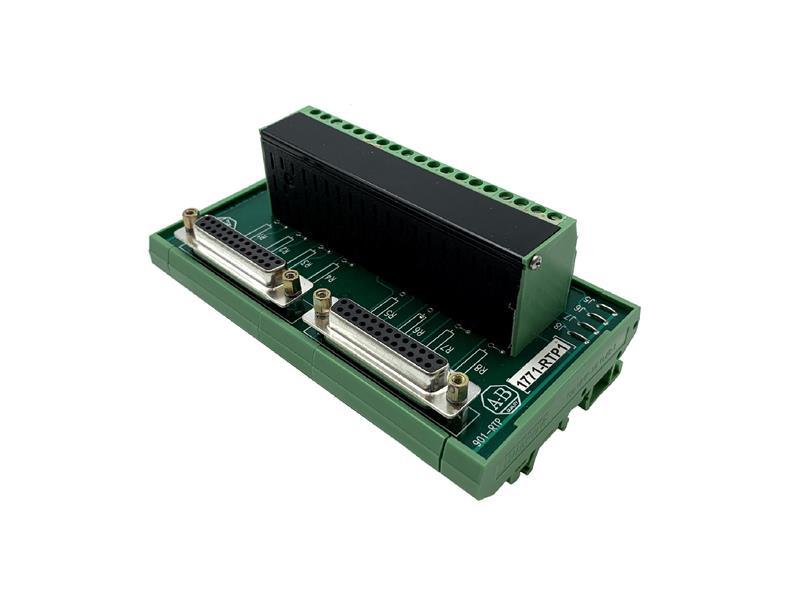

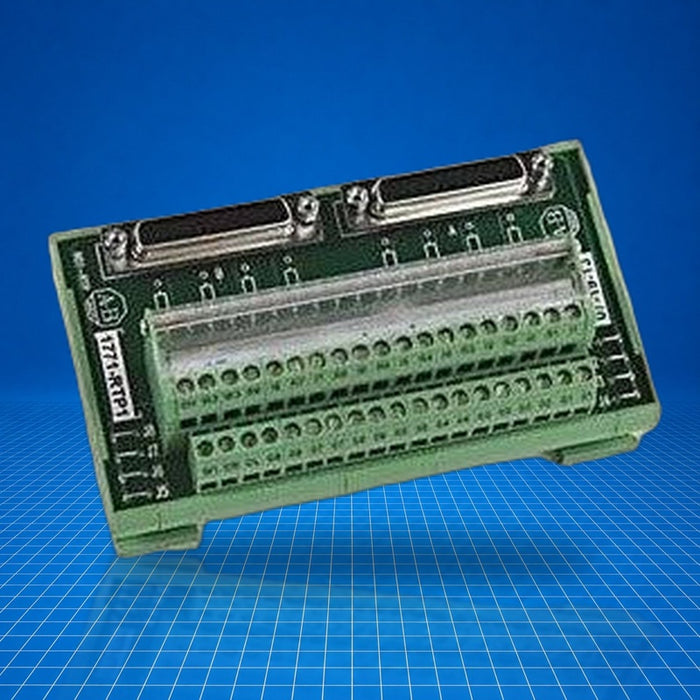

1771-RTP1 Allen-Bradley

Name: 1771-RTP1 Allen-Bradley
Brand: Allen Bradley
SKU: 1771-RTP1
Price: 944.74 USD
Availability: InStock

$944.74 - $1,237.47

$944.74

$944.74 - $1,237.47

$944.74

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1771-RTP1 is a Remote Termination Panel within the Allen-Bradley PLC-5, High-Resolution Isolated Analog series. It serves as an interface panel incorporating wiring arm and cold-junction compensation for thermocouple inputs, enabling analog voltage input usage in distributed or modular control systems. Typical in applications involving thermocouple or voltage signal routing where isolation and termination away from the I/O chassis are needed. 1771-RTP1 integrates analog signal termination at remote locations.

Best Suited For

Systems using PLC-5 with distributed analog I/O
Thermocouple input remote termination
Analog voltage input termination locations
Integration with 1771 I/O chassis

I/O modules supported

8 I/O modules

Cold-junction compensation

Yes

Usage with voltage inputs

Yes, with resistor

Fuse rating

3 A, 250 V normal-blow

Technical Specifications

I/O & Electrical

Number of I/O modules

8

Cold-junction compensation

Yes

Voltage input support

Yes, with resistor

Fuse

3 A, 250 V normal-blow

Communication & Power

Frequency

47-63 Hz

Physical & Environmental

Operating temperature range

32 to 140 °F (0 to 60 °C)

Storage temperature range

-40 to 185 °F (-40 to 85 °C)

Humidity tolerance

Up to 95 % non-condensing

Weight

1.44 lbs (0.65 kg)

Dimensions (W×H×D)

4.5 × 12.4 × 6.3 in (115 × 317 × 160 mm)

Certifications

UL 508UL 1604 (Class I Div 2)C-ULusEN 50081-2EN 50082-2

Agency certifications include UL 508 and UL 1604 (Groups A, B, C, D), C-UL under CSA C22.2 no. 142 and no. 213. EMI immunity: 6 kV contact, 8 kV air. EMC standards: EN 50081-2, EN 50082-2.
