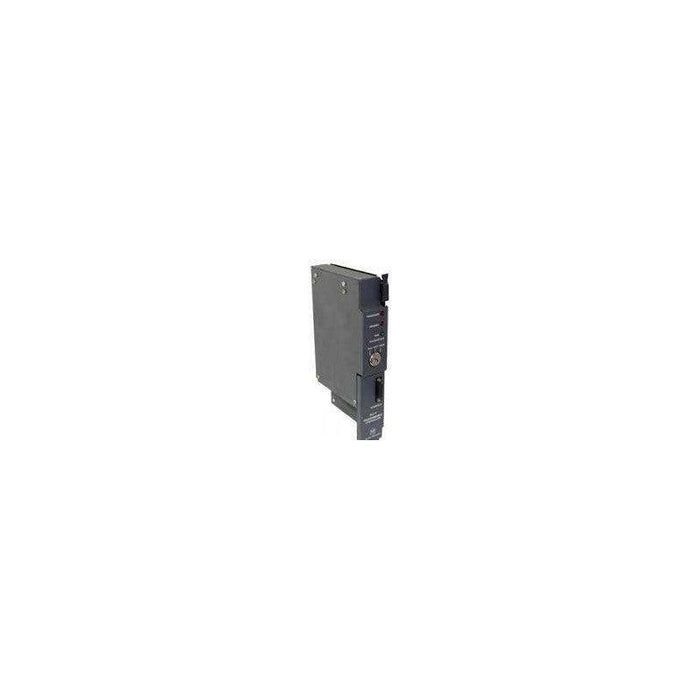

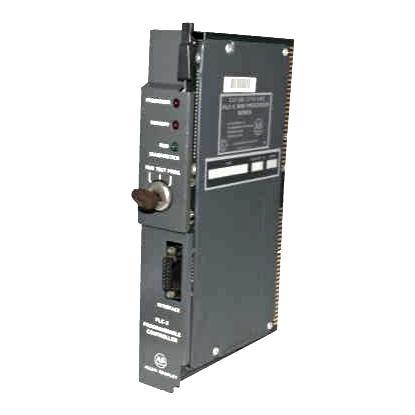

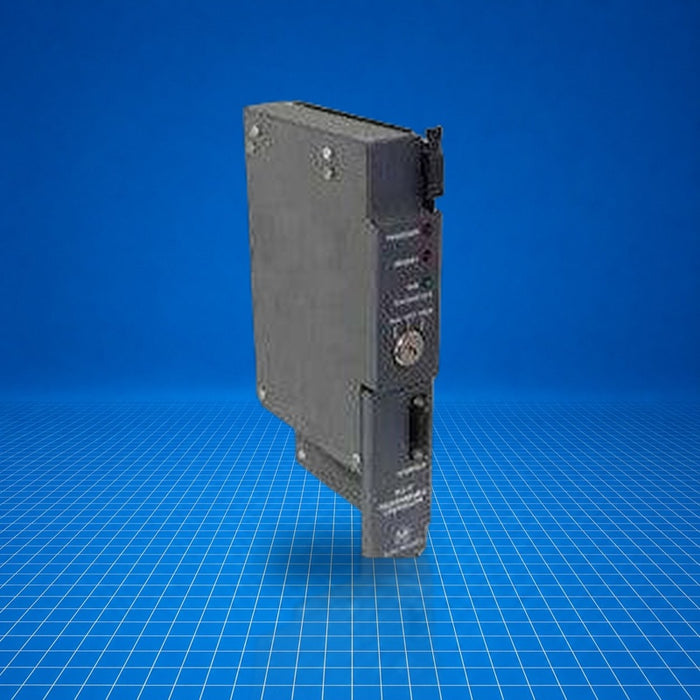

1772-LN2 Allen-Bradley
Original price
$523.80
-
Original price
$1,500.00
Original price
$523.80
$523.80
-
$1,500.00
Current price
$523.80
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1772-LN2 is a Mini-PLC-2 processor module in the Allen-Bradley PLC-5 family. It serves as the control core within a 1771 I/O chassis, executing user logic, managing data tables and message storage, and interfacing with I/O modules. It is typically deployed in compact control applications such as process control, material handling, measurement and gauging, pollution control, and palletizing, providing local decision-making and I/O handling in industrial automation. Part number 1772-LN2 is designed for insertion into the leftmost slot of a 1771 I/O chassis and requires no external power supply.
Best Suited For
- Small-scale PLC-5 control systems
- Embedded on-machine logic in material handling
- Measurement and gauging systems
- Process or pollution control with compact footprint
Memory size
1024 words
I/O capacity
Up to 32 I/O
Input voltage
10-32 V DC
Weight
0.3 lbs (0.1 kg)
Signal delay (DC)
30 ms (± 7 ms)
Technical Specifications
I/O & Electrical
Input voltage
10-32 V DC
Signal delay (AC)
29 ms (± 8 ms)
Signal delay (DC)
30 ms (± 7 ms)
I/O capacity
Up to 32 I/O
Number of terminals
40 terminals
Communication & Power
External power required
None
Physical & Environmental
Weight
0.3 lbs (0.1 kg)
Coating
Conformal coat
