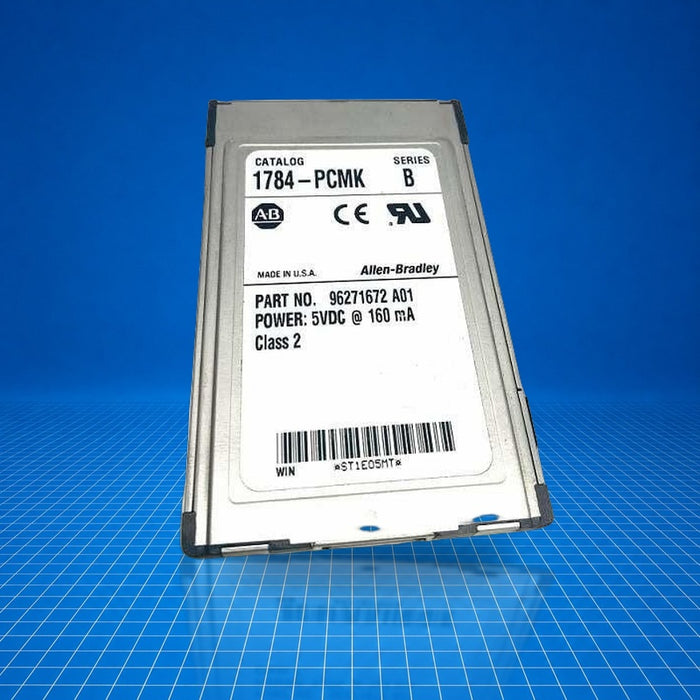

1784-PCMK Allen-Bradley
Original price
$440.00
-
Original price
$480.00
Original price
$480.00
$440.00
-
$480.00
Current price
$480.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1784-PCMK is an Allen-Bradley PCMCIA Type II communication interface card designed for use with DH+, DH-485, and Remote I/O networks. It serves as a link between a personal computer (e.g., notebook or PC) and Allen-Bradley PLC-5 and SLC-500 devices. Compliant with the PCMCIA Card and Socket Services Standard (Version 2.1), it is intended for Pollution Degree 2 and Overvoltage Category II industrial environments. The 1784-PCMK supports data exchange up to 2000 m altitude without derating, and meets IEC/CISPR Class A emissions requirements. 1784-PCMK.
Best Suited For
- Connecting PC to DH+, DH-485, or Remote I/O networks
- Portable or laptop-based programming of PLC-5 or SLC-500 systems
- Industrial environments up to pollution degree 2 and OVC II
- Legacy systems requiring PCMCIA communication interface
Form-factor
PCMCIA Type II
Power consumption
160 mA @ 5 V DC (0.8 W)
Operating temperature
0…55 °C (32…131 °F)
Communication networks
DH+, DH-485, Remote I/O
Technical Specifications
I/O & Electrical
Card power
160 mA @ 5 V DC
Power dissipation
0.8 W
Heat dissipation
2.73 BTU/hr
Communication & Power
Communication networks
DH+, DH-485, Remote I/O
Form-factor
PCMCIA Type II (PC card)
PCMCIA compliance
Card and Socket Services Standard v2.1
Physical & Environmental
Operating temperature
0…55 °C (32…131 °F)
Shock (operating)
30 g
Shock (non-operating)
50 g
Pollution degree
2
Overvoltage category
II
Emissions class
CISPR 11 Group 1, Class A
Altitude rating
≤ 2000 m without derating
Radiated/Conducted immunity
IEC 61000-4-3/4-6 per spec
