1790-T0B16X Allen-Bradley
Original price
$440.00
-
Original price
$544.08
Original price
$440.00
$440.00
-
$544.08
Current price
$440.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

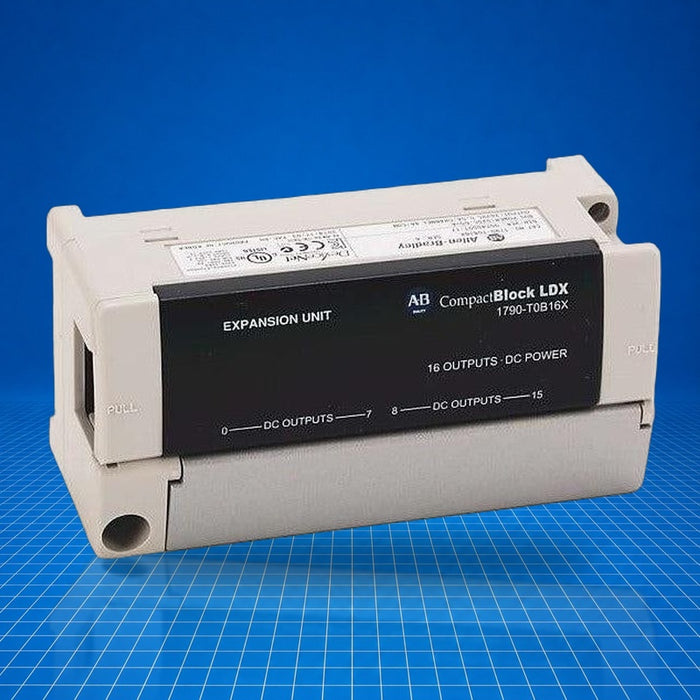

The 1790-T0B16X is an Allen-Bradley CompactBlock LDX expansion module providing 16 sourcing (PNP) DC outputs. It attaches via ribbon cable to a base or another expansion module and communicates over DeviceNet, offering control-level expansion for modular I/O systems. Typically used in discrete control applications such as machine control panels, conveyor actuation, or auxiliary output tasks within DeviceNet-based CompactBlock networks. This part, 1790-T0B16X, allows straightforward expansion without changing base wiring.
Best Suited For
- Sequenced output control in machine automation
- Supplementing base I/O counts on CompactBlock LDX systems
- Discrete actuator switching in DeviceNet-connected skids
- Distributed expansion on machine panels
Outputs
16 sourcing (PNP)
Field supply
24 V DC nominal
Max per-channel current
0.5 A
Enclosure rating
IP20
Mounting
DIN-rail or panel
Technical Specifications
I/O & Electrical
Number of outputs
16 sourcing (non-isolated)
On-state voltage
10 V DC min, 24 V DC nominal, 28.8 V DC max
On-state voltage drop
0.5 V DC max
Off-state leakage current
0.5 mA max
Output current rating
0.5 A per output, 4.0 A per common
Output signal delay
0.5 ms off-to-on, 1.0 ms on-to-off
Communication & Power
Field supply voltage range
10 - 28.8 V DC
DeviceNet power (base) voltage range
11 - 28.8 V DC
Physical & Environmental
Enclosure rating
IP20
Mounting
DIN-rail or panel
Weight
0.31 lb (0.14 kg)
Certifications
UL ListedCERoHS
