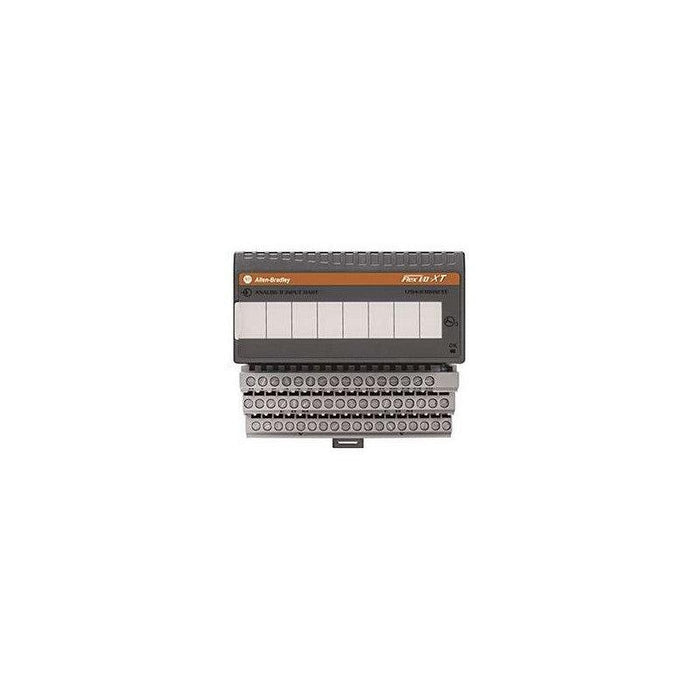

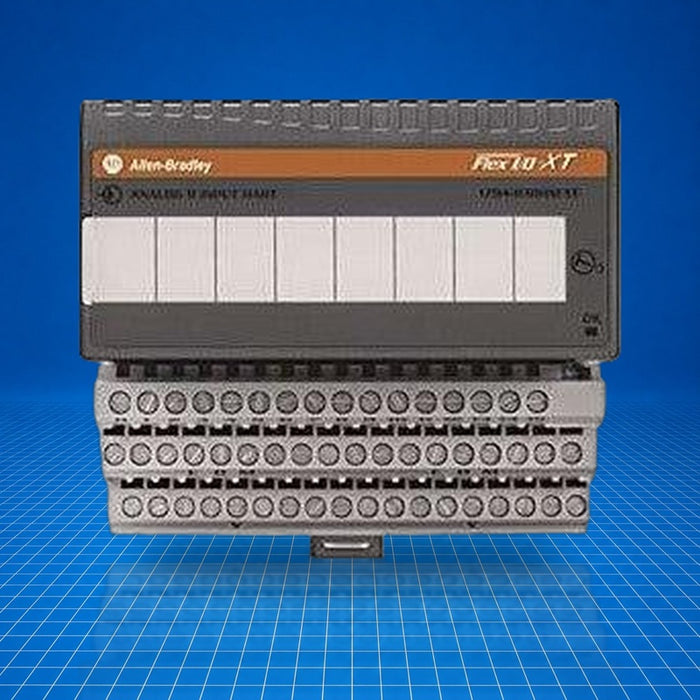

1794-IE8XT Allen-Bradley
Original price
$733.60
-
Original price
$855.80
Original price
$733.60
$733.60
-
$855.80
Current price
$733.60
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1794-IE8XT is an analog input module in Allen-Bradley's FLEX I/O-XT family. It provides eight single-ended analog input channels, each independently configurable for voltage (±10 V or 0…10 V) or current (0…20 mA or 4…20 mA). Conformally coated for extended-temperature operation (-20 °C to 70 °C), it interfaces via FlexBus and is intended for industrial process measurement and control, particularly in environments requiring extended temperature tolerance and field-economical modular I/O expansion. 1794-IE8XT is the extended-temperature variant of the 1794-IE8.
Best Suited For
- Flex I/O systems requiring analog data acquisition
- Installations in elevated or sub-ambient temperature zones
- Modular expansion on-machine or in remote enclosures
- Voltage or current sensing across up to 8 analog channels
Channels
8 single-ended
Input types
Selectable voltage or current per channel
FlexBus current
60 mA @ 24 V DC
Extended temperature
-20 °C to 70 °C
Technical Specifications
I/O & Electrical
Number of inputs
8 single-ended
Selectable input range
Voltage or current per channel (±10 V / 0…10 V or 0…20 mA / 4…20 mA)
Max voltage overload
30 V (single channel continuous)
Max current overload
32 mA (single channel continuous)
Input impedance-voltage
100 kΩ
Input impedance-current
238 Ω
Resolution
12 bit unipolar; 11 bit + sign bipolar
Resolution-counts
2.56 mV/count unipolar; 5.13 mV/count bipolar; 5.13 µA/count
Conversion rate
256 µs (all channels)
Data format
16-bit 2's complement, left-justified
FlexBus current
60 mA @ 24 V DC
Power supply voltage
24 V DC nominal (10.0…31.2 V DC)
Communication & Power
Power consumption (external)
60 mA @ 24 V DC
Isolation-user power to system
50 V continuous; tested at 850 V DC for 1 s
Channel-to-channel isolation
None (non-isolated)
Physical & Environmental
Operating temperature
-20 °C to 70 °C
Storage temperature
-40 °C to 85 °C
Relative humidity
5%…95% non-condensing
Altitude (installation)
≤ 1000 m
Enclosure
Open-style; DIN-rail (IP20)
Dimensions (HxWxD)
45.7 × 94.0 × 53.3 mm (1.8 × 3.7 × 2.1 in.)
Weight
0.43 kg (0.94 lb)
Certifications
UL ListedCSA ListedCEATEXIECExUKCAChina CCCKorean KC
