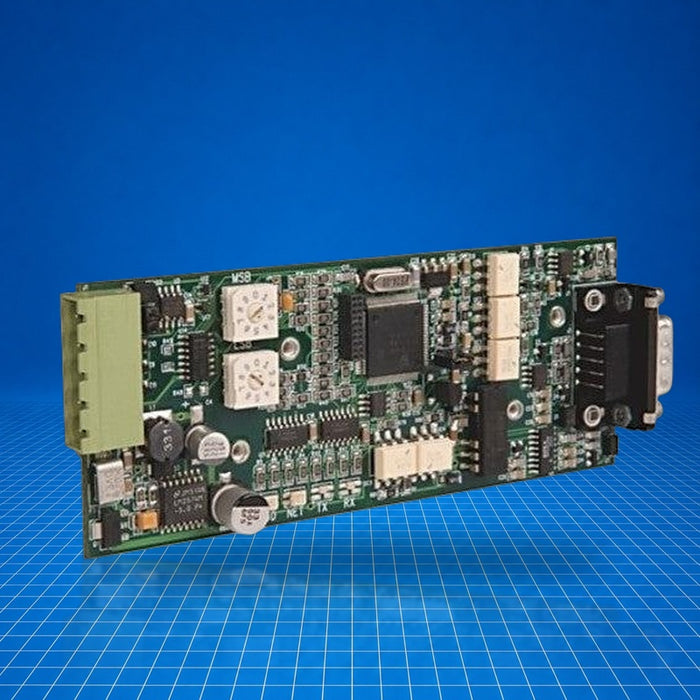

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1799ER-IQ10XOQ10 Allen-Bradley
Original price
$719.96
-
Original price
$1,297.50
Original price
$719.96
$719.96
-
$1,297.50
Current price
$719.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1799ER-IQ10XOQ10 is an Embedded I/O board from the Allen-Bradley 1799 platform, designed for integration into Ethernet/IP networks within industrial control systems. The module provides 10 universal 24 V DC inputs and 10 self-protected universal 24 V DC outputs. It supports star, tree, linear and ring wiring topologies and is typically installed on-machine or in enclosed cabinets in applications such as conveyor controls, machine I/O expansion, and distributed I/O configurations.
Best Suited For
- Embedded I/O expansion in machine-mounted Ethernet/IP networks
- On-machine installation inside enclosures or cabinets
- Topologies: star, tree, linear, ring Ethernet/IP architectures
- Distributed digital I/O for conveyor, packaging or material-handling systems
Inputs
10 universal 24 V DC
Outputs
10 self-protected universal 24 V DC @ 0.5 A
Network interface
Dual-port Ethernet/IP (star/tree/linear/ring)
Weight
0.50 lbs (0.23 kg)
Technical Specifications
I/O & Electrical
Input points
10 universal 24 V DC
Output points
10 self-protected universal 24 V DC @ 0.5 A
Communication & Power
Network protocol
EtherNet/IP
Topology support
Star, Tree, Linear, Ring
Physical & Environmental
Weight
0.50 lbs (0.23 kg)
Certifications
CEUL Listed
CE; UL Listed component for the 1799ER-IQ10XOQ10 per UL Certificate 20160614-E322657
