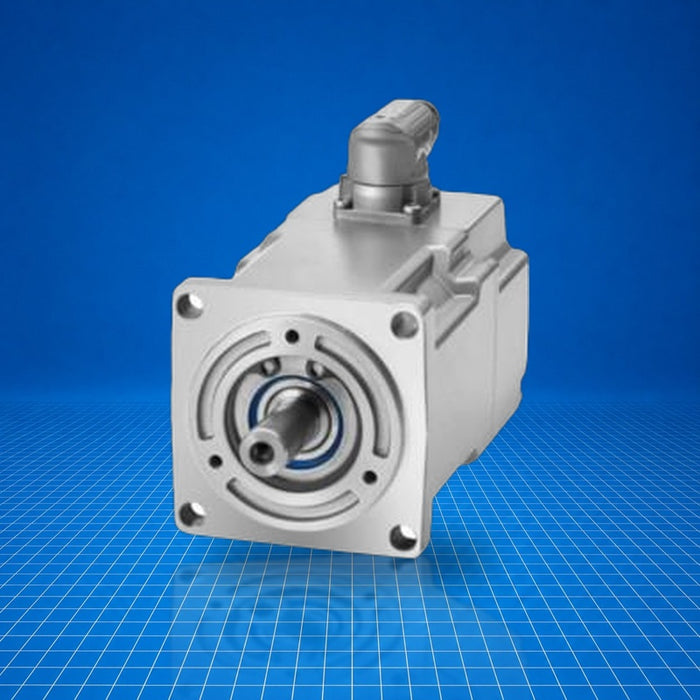

1FK2104-5AK10-1SA0 Siemens
Original price
$1,346.87
-
Original price
$3,673.74
Original price
$1,346.87
$1,346.87
-
$3,673.74
Current price
$1,346.87
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

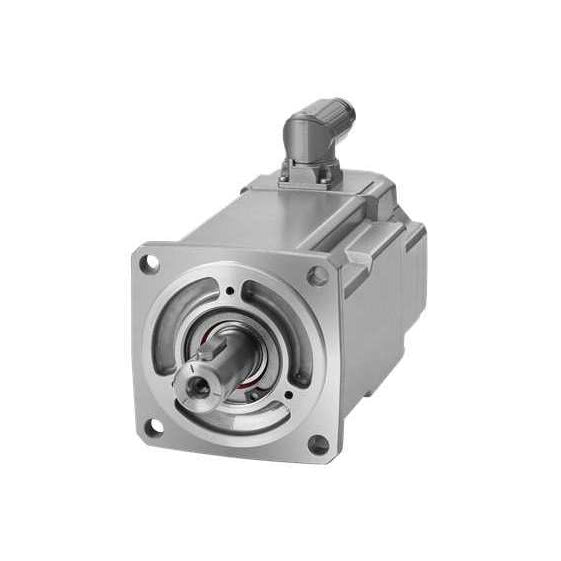

The Siemens 1FK2104-5AK10-1SA0 is a SIMOTICS S-1FK2 high-dynamic permanent-magnet synchronous servo motor with natural cooling and IP64 protection. Designed for use with SINAMICS S210 drive systems, it delivers 2.4 Nm static torque and up to 7.6 Nm maximum torque, achieving up to 8 000 rpm. It includes a 22-bit single-turn absolute encoder (AS22DQC) with OCC interface and M17 connector. The motor integrates a holding brake (3.3 Nm) and is suitable for applications requiring precise positioning and rapid torque response.
Best Suited For
- Integration with SINAMICS S210 servo drive systems
- High-dynamic positioning in machine tools or robotics
- Applications needing an absolute single-turn 22-bit encoder
- Installations requiring an integrated holding brake
Static torque
2.4 Nm
Maximum torque
7.6 Nm
Maximum speed
8 000 rpm
Encoder resolution
22-bit absolute, single-turn
Technical Specifications
I/O & Electrical
Static (stall) current
4.4 A
Maximum current
16 A
Communication & Power
Encoder interface
OCC
Connector size
M17
Physical & Environmental
IP rating
IP64
Weight (with brake)
3.7 kg
Rotor inertia (with brake)
0.65 kg·cm²
Mounting flange
IM B5 (others IM V1, IM V3)
Shaft diameter × length
19 mm × 40 mm (with key)
