Product Overview

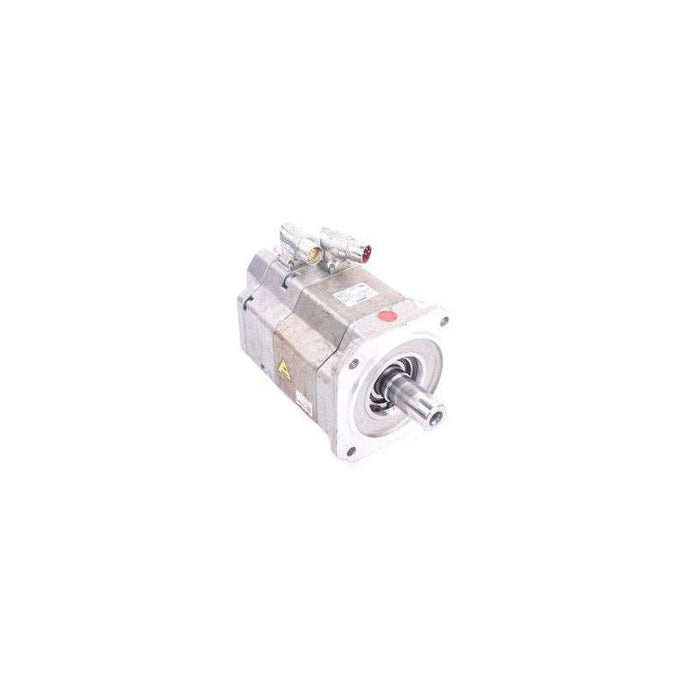

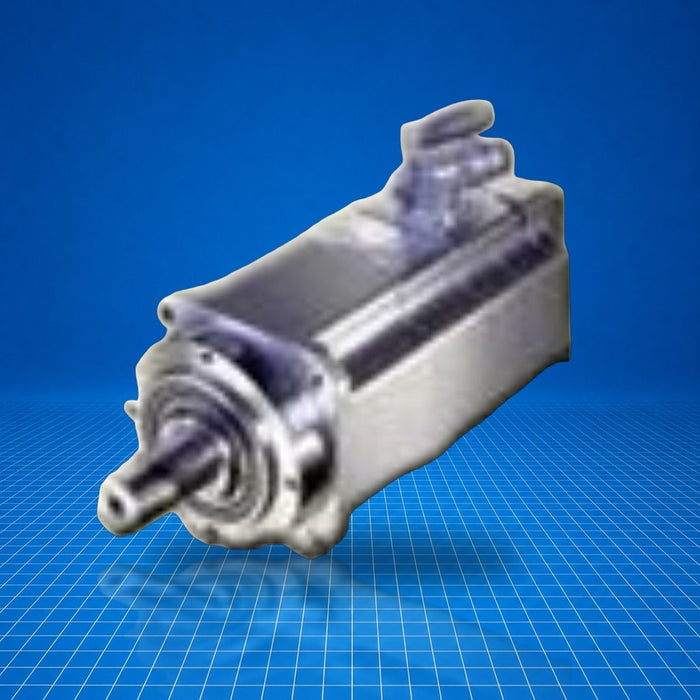

The Siemens 1FK7083-5AF71-1AG0 is a SIMOTICS S series synchronous servo motor (Compact design) intended for precision motion control in industrial automation. It features an incremental encoder (SIN/COS 1 Vpp, 2048 pulses per revolution) and is configured without holding brake. The unit delivers approximately 3.3 kW at 3 000 rpm (100 K) and is naturally cooled, with IM B5 mounting (IM V1, IM V3). This spare part is part of the 1FK7 family and is commonly used in machine tools, packaging machinery, and robotics as a replacement or repair component.

Best Suited For

Machine tool axis control
Packaging machinery servo applications
Robotic joint articulation
Replacement in existing SIMOTICS S systems

Rated torque

10.5 Nm

Rated speed

3 000 rpm

Encoder type

Incremental SIN/COS 1 Vpp, 2048 ppr

Degree of protection

IP65 (flange IP67)

Net weight

14.0 kg

Technical Specifications

I/O & Electrical

Rated current

7.4 A

Static torque (100 K)

16.00 Nm

Stall current (100 K)

10.40 A

Communication & Power

Power rating (optimum)

3.3 kW

Max. permissible speed (mechanical)

6 000 rpm

Max. permissible speed (inverter)

5 900 rpm

Maximum torque

50.0 Nm

Maximum current

37.0 A

Physical & Environmental

Cooling method

Natural cooling

Mounting (design)

IM B5 (IM V1, IM V3)

Runout tolerance (radial)

0.050 mm

Concentricity tolerance

0.10 mm

Axial runout tolerance

0.10 mm

Vibration grade

Grade A

Connector

Rotatable signal/power connectors

Temperature sensor

KTY84 in stator winding

Shaft end

Plain shaft (tolerance N)

Housing protection

IP65 (motor) / IP67 (flange)

Housing color

Anthracite RAL 7016
