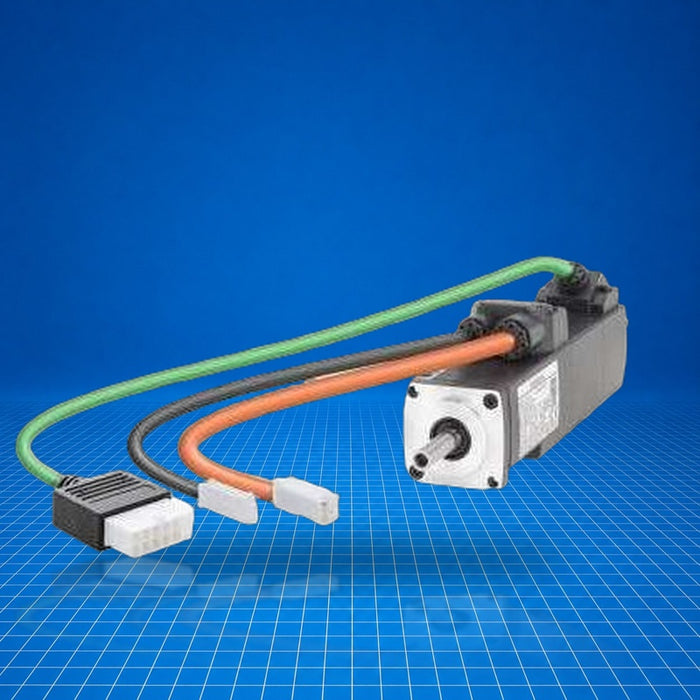

1FL6024-2AF21-1MB1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

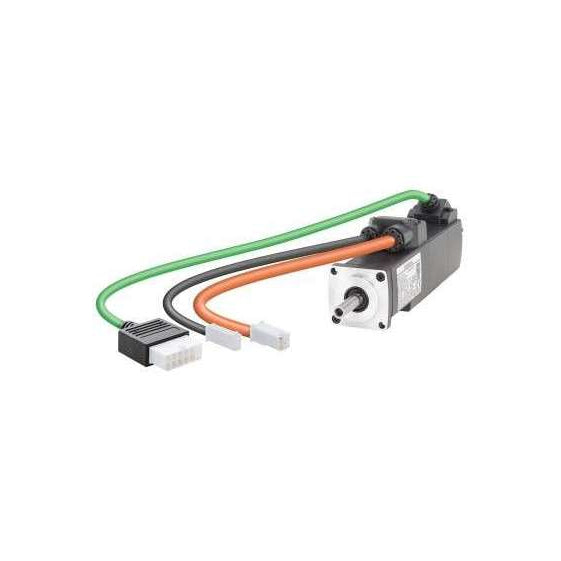

The Siemens 1FL6024-2AF21-1MB1 is a SIMOTICS S-1FL6 low-inertia servomotor designed for use with SINAMICS V90 drives. It operates from a 3-phase 230 V AC supply, delivers a rated torque of 0.32 Nm at 3000 rpm and a rated power of 0.1 kW. It finds application in motion control systems requiring precise speed and torque regulation, such as packaging machinery, assembly automation, and positioning systems. The motor includes an incremental encoder and is built to industrial standards for mountable, field-installable use.
Best Suited For
- Integration with SINAMICS V90 servo drive
- Low-inertia, high-precision motion control
- Applications requiring compact 20 mm shaft height
- Servo installations in packaging, assembly, or pick-and-place systems
Rated power
0.10 kW
Rated torque
0.32 Nm
Rated speed
3000 rpm
Encoder type
Incremental TTL, 2500 S/R
Degree of protection
IP65
Technical Specifications
I/O & Electrical
Operating voltage
3-phase 230 V AC
Rated current
1.2 A
Max. current
3.6 A
Communication & Power
Rated power
0.10 kW
Physical & Environmental
Shaft height
20 mm
Motor type
Low-inertia permanent-magnet synchronous
Encoder system
Incremental TTL, 2500 S/R (13 bit)
Cooling
Natural
Net weight
0.60 kg
Ambient temperature, operation
0 … 40 °C
Relative humidity
≤ 90 % RH at 30 °C, no condensation
Degree of protection
IP65
Moment of inertia
0.052 kg cm²
Torque constant
0.29 Nm/A
Thermal class
B (130 °C)
