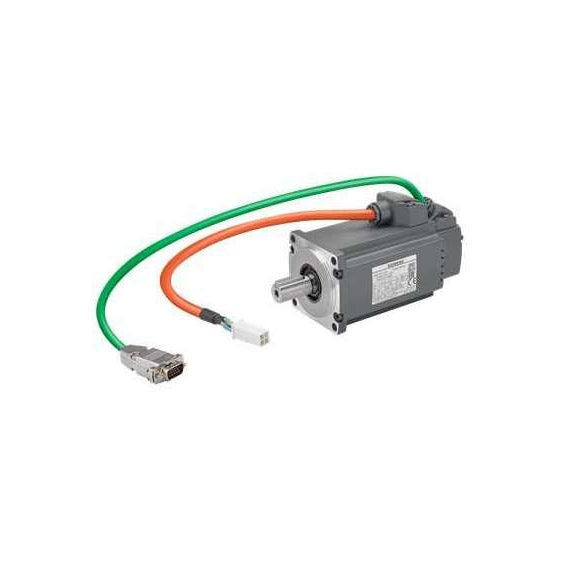

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

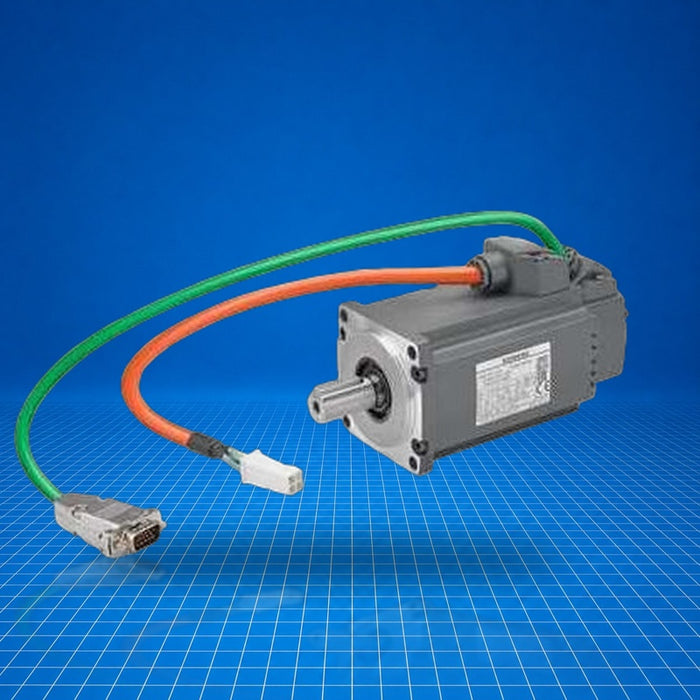

1FL6032-2AF21-1LB1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1FL6032-2AF21-1LB1 is a Siemens SIMOTICS S-1FL6 low-inertia permanent-magnet synchronous servomotor configured for use with SINAMICS V90 drives. It delivers 0.20 kW rated power at 3,000 rpm, with 0.64 Nm static and rated torque, and supports motion and positioning control in compact automation systems, machine tools, packaging and assembly lines. It integrates an encoder and optional holding brake for closed-loop velocity and position regulation. Part number 1FL6032-2AF21-1LB1.
Best Suited For
- SINAMICS V90 servo drive integration
- Compact machine tool motion control
- Assembly line precise positioning
- Packaging machinery applications
Rated power
0.20 kW
Rated torque (100 K)
0.64 Nm
Max speed
5 000 rpm
Degree of protection
IP65
Encoder system
Incremental TTL, 2500 S/R
Technical Specifications
I/O & Electrical
Rated current
1.4 A
Max current
4.2 A
Torque constant
0.48 Nm/A
Communication & Power
Operating voltage
230 V 3 AC
Physical & Environmental
Shaft height
30 mm
Motor type
Low inertia, permanent-magnet synchronous motor
Net weight
1.50 kg
Ambient temperature, operation
0…40 °C
Relative humidity
≤ 90 % RH (no condensation at 30 °C)
Certifications
CEEAC
Compliance with CE and EAC standards.
