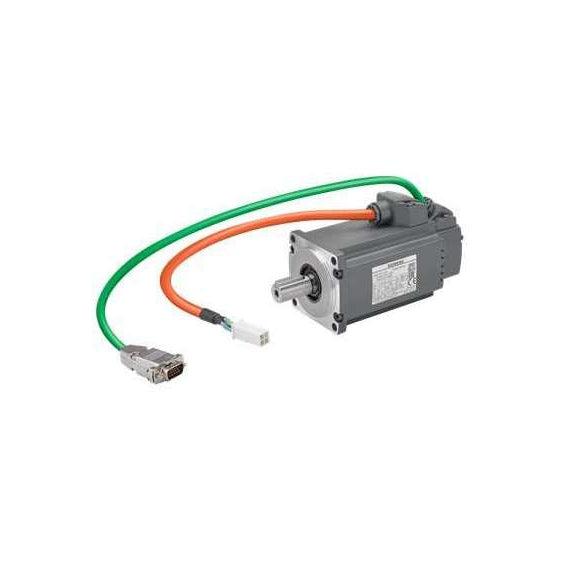

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

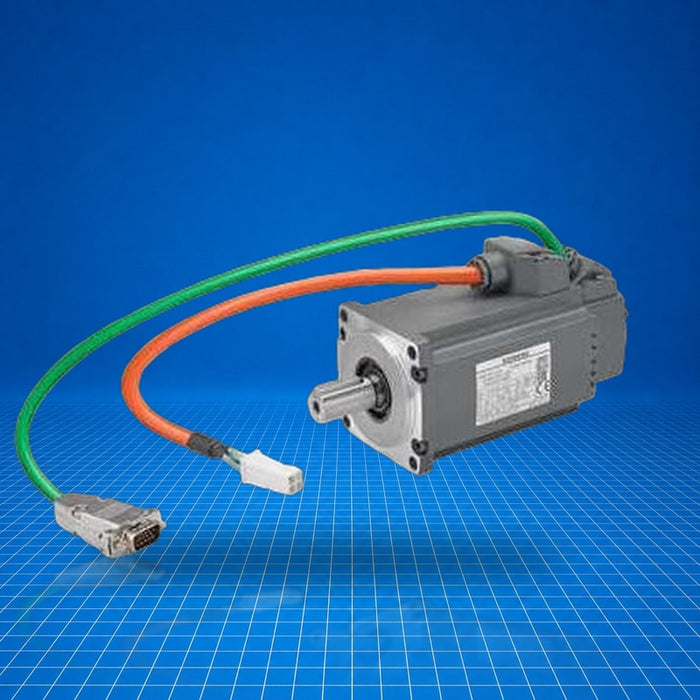

1FL6034-2AF21-1LB1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 1FL6034-2AF21-1LB1 is a SIMOTICS S-1FL6 permanent-magnet synchronous servomotor designed for use with SINAMICS V90 drives. It delivers a rated power of 0.40 kW (0.54 hp) at 3 000 rpm, with a rated torque of 1.27 Nm. Equipped with an absolute encoder (20-bit single-turn, 12-bit multi-turn) and integrated holding brake, it supports precise motion and position control. The motor is IP65-rated and suited for applications requiring compact, speed-controlled servo motion under harsh environmental conditions.
Best Suited For
- Integration with SINAMICS V90 drive systems
- Precision positioning in packaging or pick-and-place machines
- On-machine installation in wash-down or dusty environments
- Applications requiring holding brake for stopped-state torque
Rated power
0.40 kW / 0.54 hp
Rated torque
1.27 Nm
Rated speed
3 000 rpm
Holding brake
24 V DC, 0.30 A
Degree of protection
IP65
Technical Specifications
I/O & Electrical
Rated current
2.6 A
Max. current
7.8 A
Holding brake voltage
24 V DC 10 %
Holding brake current
0.30 A
Communication & Power
Rated power
0.40 kW / 0.54 hp
Max. speed
5 000 rpm
Physical & Environmental
Encoder system
Absolute 20-bit single-turn (12-bit multi-turn)
Shaft height
30 mm
Protection rating
IP65
Ambient temperature
0 … 40 °C
Relative humidity
≤ 90 % RH (no condensation at 30 °C)
Net weight
1.90 kg
Certifications
CEEAC
CE, EAC compliance indicated in Siemens datasheet.
