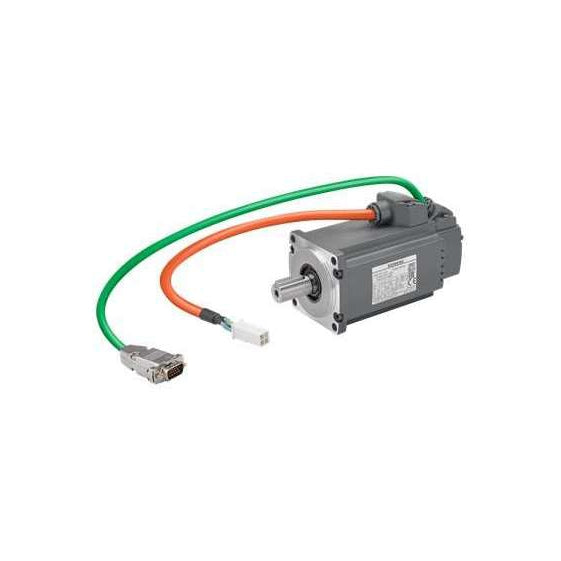

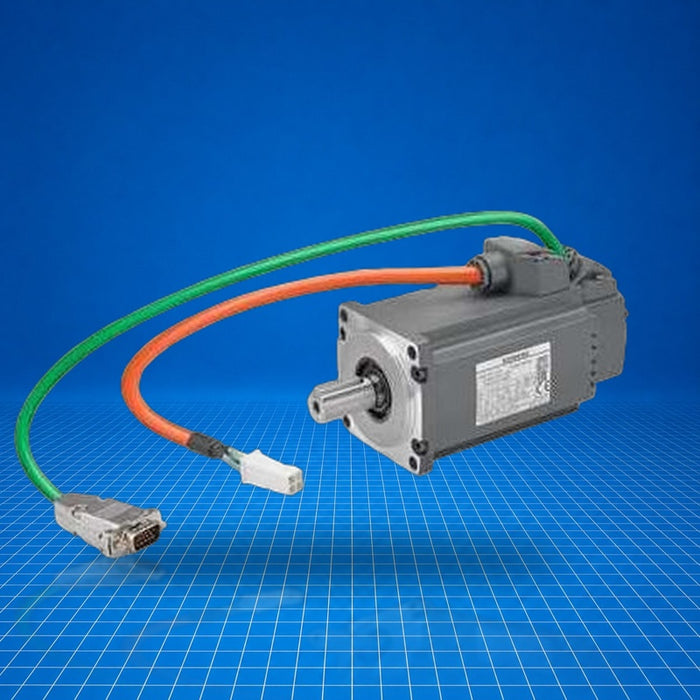

1FL6034-2AF21-1LH1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1FL6034-2AF21-1LH1 is a SIMOTICS S-1FL6 permanent-magnet synchronous servomotor designed for integration with SINAMICS V90 inverter drives. Rated at 0.4 kW and 3,000 rpm, it provides controlled speed and torque in motion-control systems. Typical industrial applications include machine tool positioning, packaging machinery indexing, and robotics axes where compact form factor, encoder feedback, and enclosure protection (IP65) are required.
Best Suited For
- Integration with SINAMICS V90 servo drives
- Machine tool speed/position control
- Packaging and indexing machinery
- Compact axis motion control
Rated power / speed
0.40 kW / 3 000 rpm
Rated torque
1.27 Nm
Encoder
Incremental TTL 2500 S/R (13-bit)
Protection rating
IP65
Mounting form
IM B5 (IM V1, IM V3)
Technical Specifications
I/O & Electrical
Rated current
2.6 A
Max. current
7.8 A
Holding brake rated voltage
24 V DC ±10 %
Holding brake rated current
0.30 A
Communication & Power
Rated power
0.40 kW / 0.54 hp
Physical & Environmental
Ambient temperature (operation)
0 … 40 °C
Relative humidity
Up to 90 % RH (no condensation at 30 °C)
Net weight
1.50 kg
Degree of protection
IP65
Thermal class
B (130 °C)
Moment of inertia
0.351 kg·cm²
Certifications
CEEAC
Complies with CE and EAC standards as per Siemens documentation.
