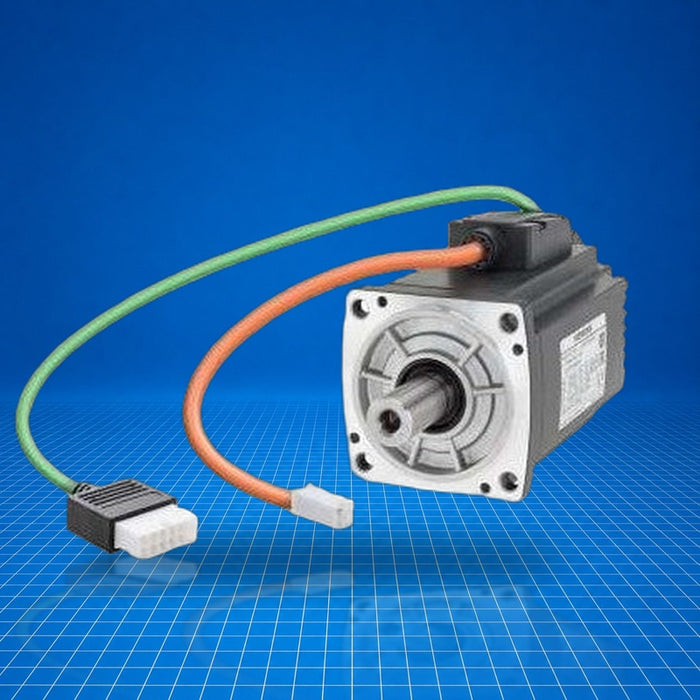

1FL6042-2AF21-1AG1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1FL6042-2AF21-1AG1 is a Siemens SIMOTICS S-1FL6 series permanent-magnet synchronous servomotor designed for inverter control using SINAMICS V90 drives. It provides 0.75 kW nominal power at 3 AC, 230 V, delivering 2.39 Nm rated torque at 3000 rpm. The motor operates with an incremental TTL encoder, enabling speed and position feedback in machine motion systems, typically used in positioning, indexing, and servo applications. The part number 1FL6042-2AF21-1AG1 denotes this specific motor variant in the SIMOTICS S-1FL6 family.
Best Suited For
- Inverter-driven motion control with SINAMICS V90
- Mid-power servo positioning in machine tools or conveyors
- Systems requiring IP65 rated servomotor integration
- Applications needing incremental encoder feedback
Rated power
0.75 kW
Rated torque
2.39 Nm
Rated current
4.7 A
Protection rating
IP65
Technical Specifications
I/O & Electrical
Rated current
4.7 A
Rated power
0.75 kW
Communication & Power
Operating voltage
3 AC 230 V
Physical & Environmental
Rated speed
3000 rpm
Maximum speed
5000 rpm
Maximum torque
7.20 Nm
Moment of inertia
0.897 kg·cm²
Encoder type
Incremental TTL, 2500 S/R (13 bit)
Shaft height
40 mm
Degree of protection
IP65
Net weight
2.80 kg
Ambient temperature (operation)
0 … 40 °C
Relative humidity
max. 90 % RH (no condensation at 30 °C)
Certifications
CEEAC
