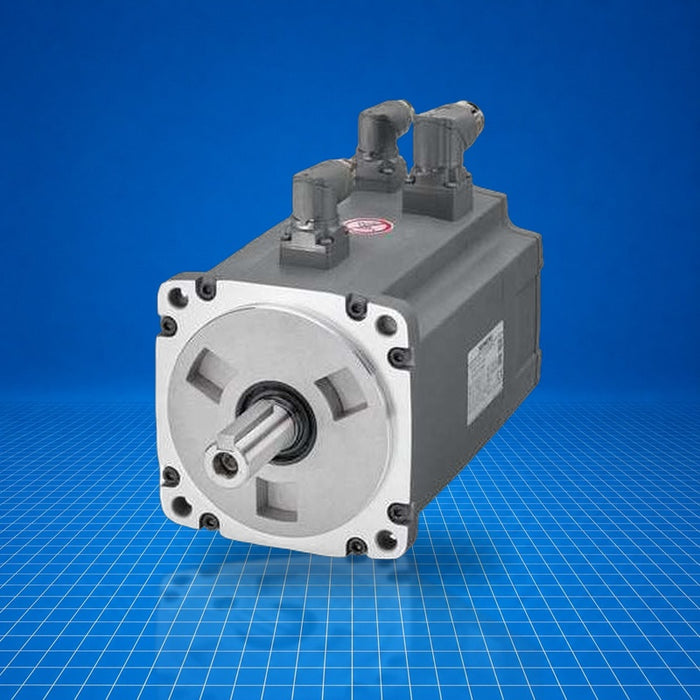

1FL6090-1AC61-2AB1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMOTICS S-1FL6 servomotor, part number 1FL6090-1AC61-2AB1, is a 2.5 kW permanent-magnet synchronous motor designed for closed-loop motion control with SINAMICS V70/V90 drives. It operates at a nominal speed of 2 000 rpm delivering 11.9 Nm continuous and up to 15 Nm static torque. The motor includes a 13-bit incremental encoder and a holding brake, making it suitable for positioning, robotics, and machine tool applications in industrial automation.
Best Suited For
- Integration with SINAMICS V70 or V90 drives
- Positioning and motion control tasks
- Applications requiring holding brake for standstill torque
- Environments requiring IP65 protection
Rated power
2.50 kW
Rated torque
11.90 Nm
Encoder
Incremental TTL, 2500 S/R (13 bit)
Degree of protection
IP65
Holding brake
24 V DC, 30 Nm
Technical Specifications
I/O & Electrical
Operating voltage
3 AC 400 V
Rated current
7.8 A
Max. current
23.4 A
Rated power
2.50 kW
Communication & Power
Encoder type
Incremental TTL, 2500 S/R (13 bit)
Connection type
Angular connector (rotatable)
Physical & Environmental
Shaft height
90 mm
Net weight
21.50 kg
Ambient temperature (operation)
0 … 40 °C
Humidity (max. operation)
90 % RH max. (no condensation at 30 °C)
Degree of protection
IP65
Cooling
Natural cooling
Certifications
CEEAC
CE, EAC compliance per Siemens documentation.
