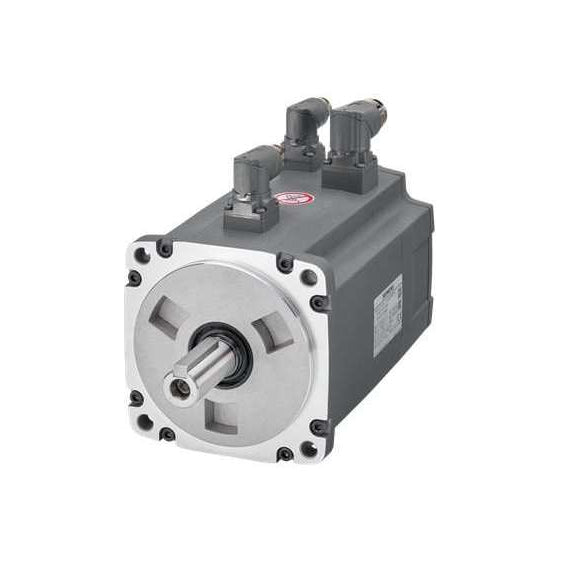

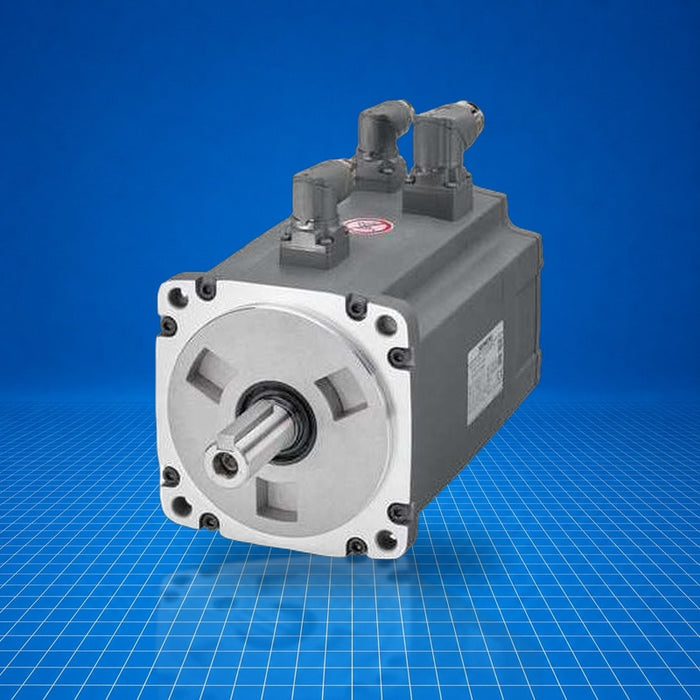

1FL6094-1AC61-2AG1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMOTICS S-1FL6 servomotor, model 1FL6094-1AC61-2AG1, is a permanent-magnet synchronous motor designed for use with SINAMICS V-series servo drives. It delivers rated power of 5.00 kW at 2,000 rpm with rated torque of 23.90 Nm and suits motion/position control systems in packaging, machine tools, robotics, or automated assembly. The motor includes a 13-bit incremental encoder, natural cooling, and IP65 protection, supporting reliable servo performance within industrial motion applications.
Best Suited For
- SINAMICS V70 and V90 servo drive systems
- Position and speed control in automated machinery
- Applications requiring up to 5 kW continuous torque
- Environments needing IP65-rated motor protection
Rated power
5.00 kW / 6.80 hp
Rated torque
23.90 Nm
Max speed
2,500 rpm
Degree of protection
IP65
Technical Specifications
I/O & Electrical
Rated current
12.6 A
Max current
36.9 A
Communication & Power
Operating voltage
3-phase AC 400 V
Physical & Environmental
Ambient temperature (operation)
0 … 40 °C
Relative humidity maximum
90 % RH at 30 °C, no condensation
Thermal class
B (130 °C)
Net weight
24.40 kg
Degree of protection
IP65
Cooling
Natural cooling
Encoder system
Incremental encoder TTL, 2500 S/R (13 bit)
Certifications
CEEAC
Compliance with CE and EAC standards.
