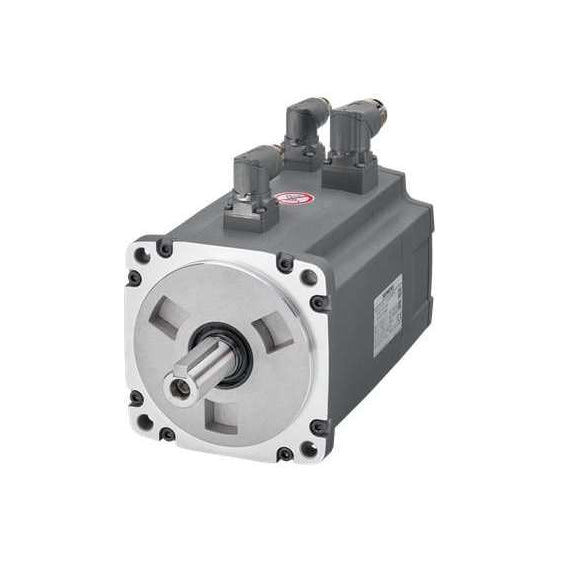

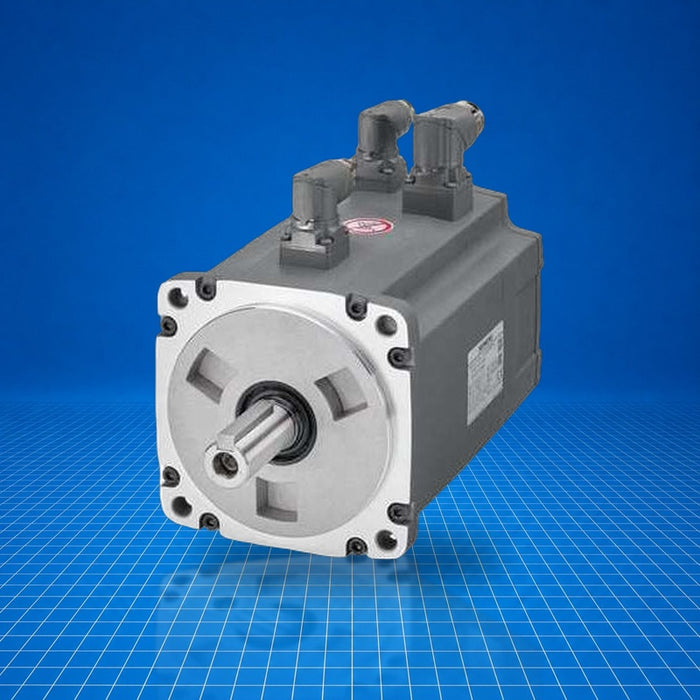

1FL6096-1AC61-2AG1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1FL6096-1AC61-2AG1 is a Siemens SIMOTICS S-1FL6 permanent-magnet synchronous servomotor designed for motion control applications paired with SINAMICS V90 converters. It provides 7.00 kW (9.52 hp) rated power at 2,000 rpm, with high static and dynamic torque capacity. Its encoder feedback and IP65 enclosure suit it for precision servo positioning in production machinery, robotics joints, machine tools, and automated handling systems. The unit integrates natural cooling and a high-inertia rotor for controlled deceleration and precise low-speed performance.
Best Suited For
- Use with SINAMICS V90 drive systems
- Precision positioning in machine tools
- Robotic arm joint applications
- High-inertia load regulation
Rated power
7.00 kW / 9.52 hp
Rated speed
2 000 rpm
Rated torque (100 K)
33.40 Nm
Maximum torque
90.00 Nm
Degree of protection
IP65
Technical Specifications
I/O & Electrical
Rated power
7.00 kW / 9.52 hp
Rated current
13.2 A
Rated torque
33.40 Nm
Maximum torque
90.00 Nm
Max. current
35.6 A
Communication & Power
Encoder system
Incremental encoder TTL, 2500 S/R (13 bit)
Physical & Environmental
Motor type
Permanent-magnet synchronous motor, high inertia
Thermal class
B (130 °C)
Net weight
33.30 kg
Ambient temperature (operation)
0 … 40 °C
Relative humidity
Max. 90 % RH (no condensation at 30 °C)
Cooling
Natural cooling
Degree of protection
IP65
Shaft height
90 mm
Shaft end
Plain shaft
Connection type
Angular connector (rotatable)
Certifications
CEEAC
Complies with CE, EAC standards.
