2080-LC30-10QWB Allen-Bradley

Name: 2080-LC30-10QWB Allen-Bradley
Brand: Allen Bradley
SKU: 2080-LC30-10QWB
Price: 440.0 USD
Availability: InStock

$440.00 - $800.00

$440.00

$440.00 - $800.00

$440.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

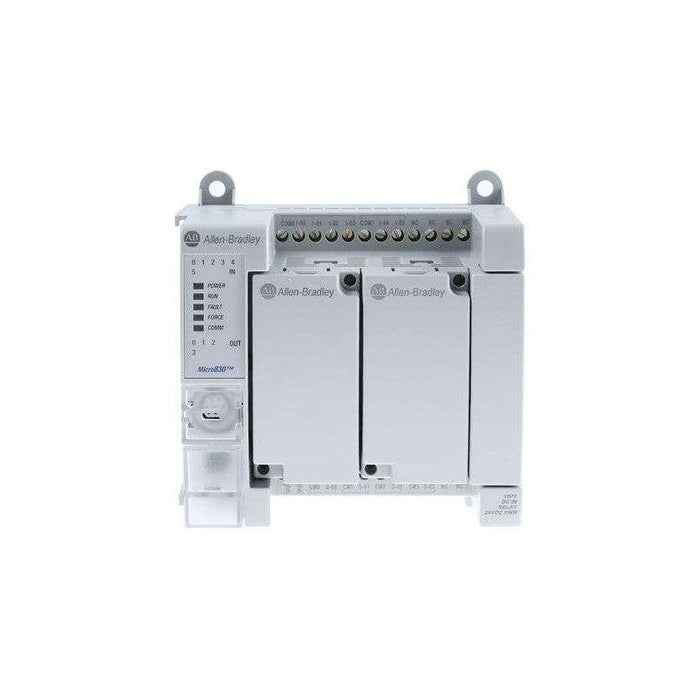

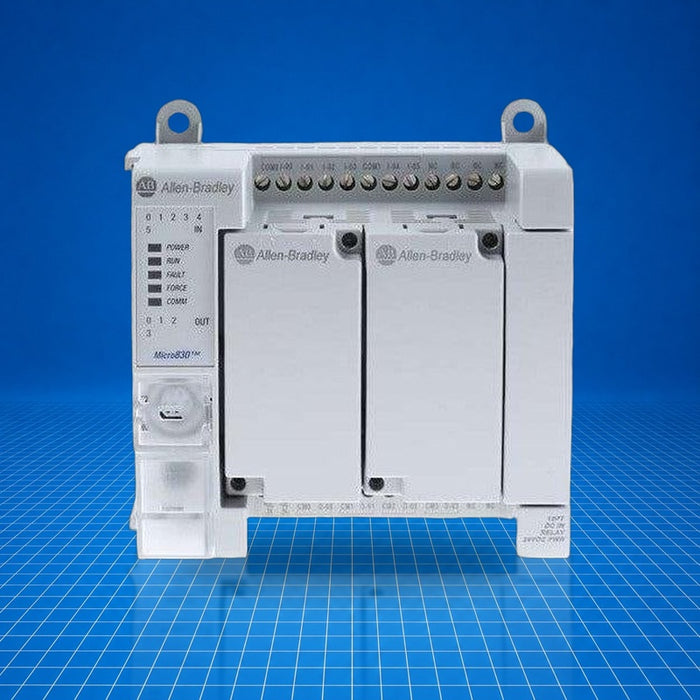

The 2080-LC30-10QWB is a Micro830 series programmable logic controller by Allen-Bradley (Rockwell Automation). This compact controller integrates six discrete inputs and four relay outputs in a single brick form factor suited for small-scale machine control, stand-alone automation tasks, and OEM systems. It includes embedded RS-232/485 serial and USB programming ports and supports ladder, function block, and structured text programming. The 2080-LC30-10QWB is part of the broader Micro800 platform and is typically deployed in industrial control, packaging machinery, conveyor systems, and basic motion or process control applications.

Best Suited For

Small standalone machine control
OEM embedded logic applications
Discrete I/O control with limited I/O points
Systems without Ethernet communication

Discrete I/O

6 inputs, 4 relay outputs

Programming interface

USB 2.0 and RS-232/485

Memory

4 k-step program, 8 KB data

High-speed inputs

2 channels @ 100 kHz

Power consumption

3.6 W (without plug-ins)

Technical Specifications

I/O & Electrical

Inputs

6 discrete 24 V DC/AC

Outputs

4 relay (general-use) outputs

High-speed counters (HSC)

2 channels, 100 kHz

I/O rating

Input 24 V DC, 8.8 mA; Output 2 A (240 V AC general-use); 1 A per point at 24 V DC (at 30 °C); 0.3 A per point at 24 V DC (at 65 °C)

Communication & Power

Input voltage range

20.4…26.4 V DC Class 2

Power consumption

3.6 W (without plug-ins)

Communication ports

1 non-isolated RS-232/485, USB 2.0 (programming)

Supported protocols

CIP Serial, Modbus RTU, ASCII

Physical & Environmental

Dimensions (HxWxD)

90 × 100 × 80 mm

Weight

0.302 kg (approx. 0.666 lb)

Wire size

0.14…2.5 mm² (26…14 AWG) solid; 0.14…1.5 mm² (26…14 AWG) stranded

Terminal screw torque

0.6 Nm max

Enclosure rating

Meets IP20

Operating temperature code

North American T4
