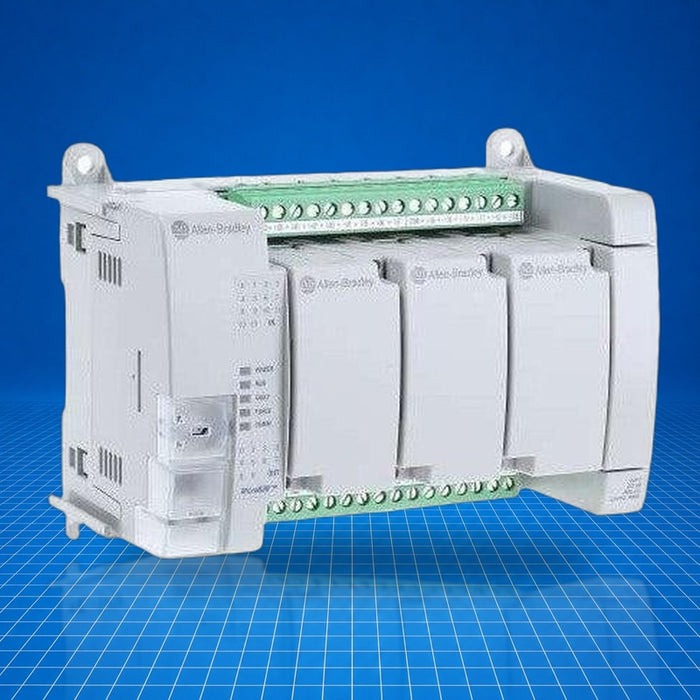

2080-LC30-24QWB Allen-Bradley
Original price
$599.96
-
Original price
$822.94
Original price
$599.96
$599.96
-
$822.94
Current price
$599.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2080-LC30-24QWB is an Allen-Bradley Micro-830 series programmable logic controller (PLC). It provides 14 discrete 24 V DC/AC inputs, including 8 high-speed inputs, and 10 relay outputs. It supports up to three plug-in modules for analog or additional I/O. It includes USB 2.0 and RS-232/RS-485 combo ports supporting CIP, Modbus RTU, and ASCII protocols. It is designed for compact micro-machine and small process control, performing logic, PID, and floating-point math operations.
Best Suited For
- Micro-machine control applications
- Small process automation requiring relay outputs
- Environments needing high-speed discrete input capture
- Integration with existing Modbus or CIP networks
- Expansion via plug-in analog or digital I/O modules
Discrete Inputs
14 (6 standard, 8 high-speed)
Relay Outputs
10
Data Memory
8 K bytes
Program Steps
4 K steps
Communication Ports
USB 2.0, RS-232/485 combo
Technical Specifications
I/O & Electrical
Input voltage (operating)
16.8…26.4 V DC (high-speed inputs)
Input voltage (standard)
10…26.4 V DC
Input on-state current (nominal)
8.8 mA @ 24 V DC
High-speed inputs count
8
Standard inputs count
6
Output type
Relay
Output load current (max)
2.0 A, 240 V AC general use
Output load current (standard op)
1 A @ 30 °C; 0.3 A @ 65 °C
Power consumption
5.28 W
Communication & Power
Power supply voltage range
20.4…26.4 V DC Class 2
USB port
USB 2.0 (programming)
Serial port
RS-232/485 combo (non-isolated)
Supported protocols
Modbus RTU Master/Slave, ASCII, CIP
Physical & Environmental
Dimensions (HxWxD)
90×145×80 mm
Enclosure rating
IP20
Terminal screw torque
0.6 Nm (4.4 lb-in) max
Ambient humidity tolerance
5-95 % non-condensing
Certifications
IP20T4 temperature codeABS (unit certification required)
