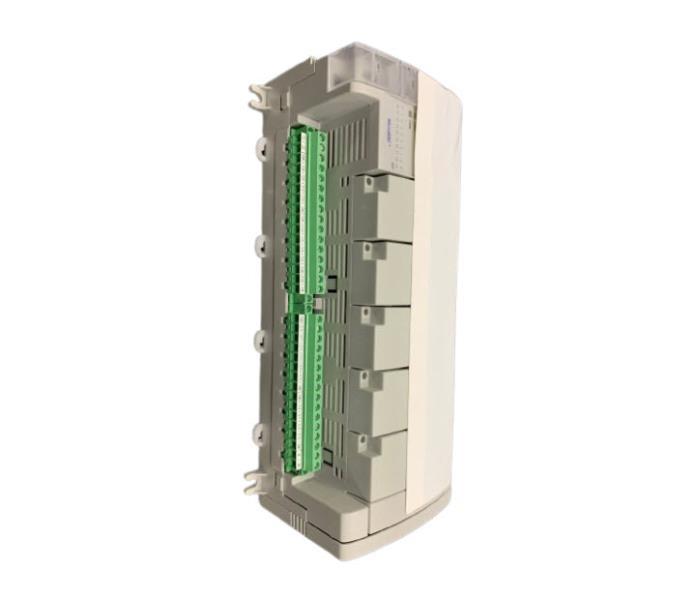

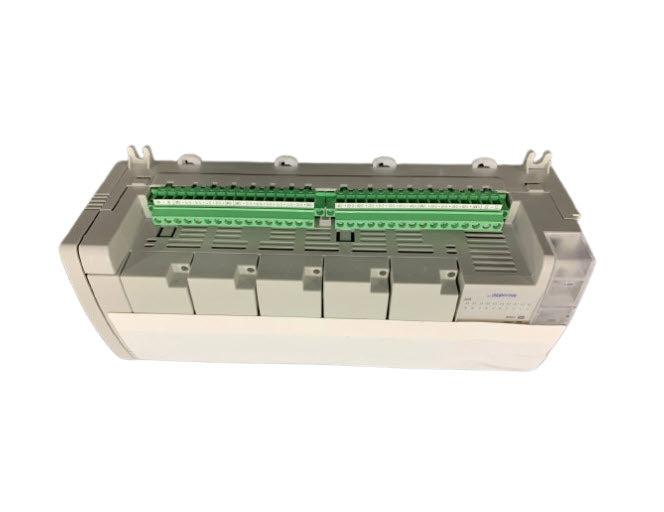

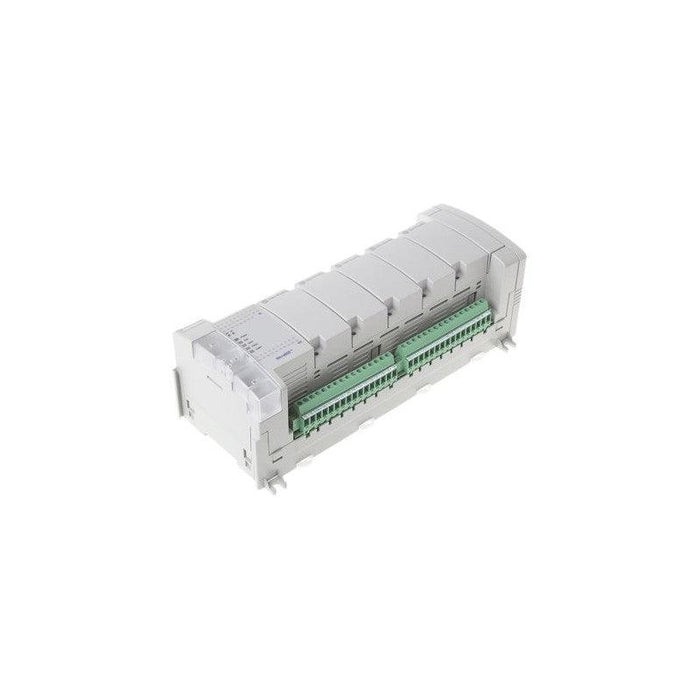

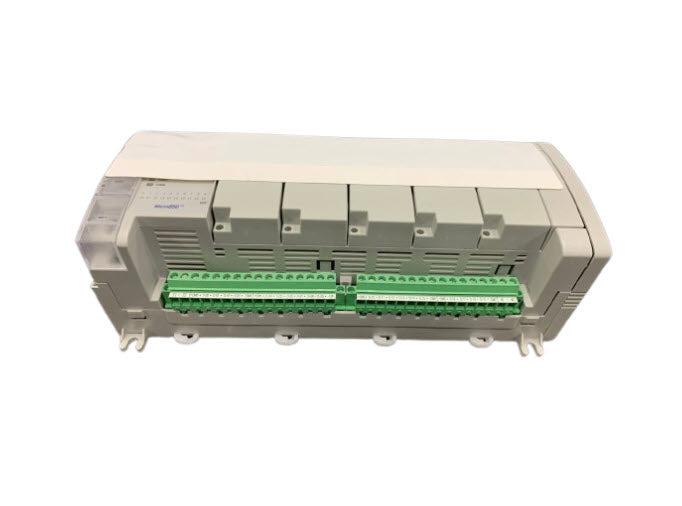

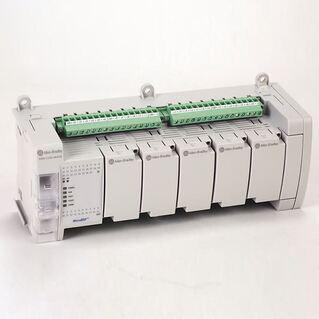

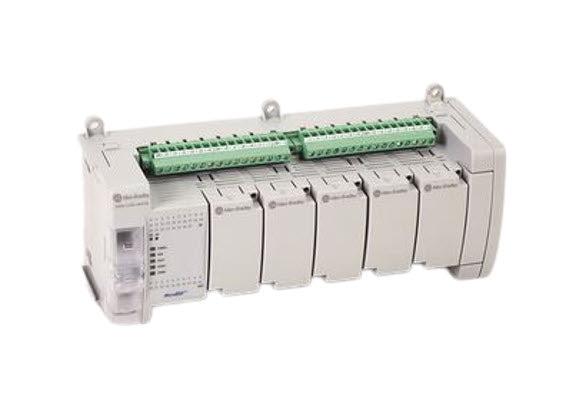

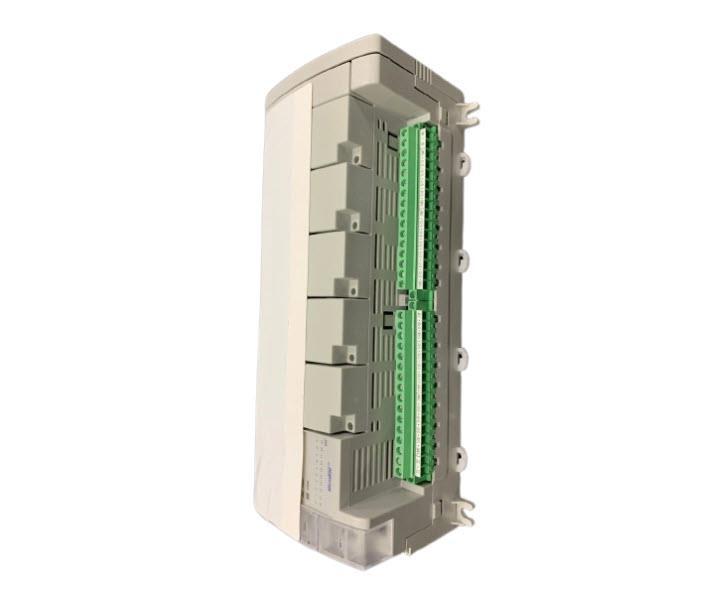

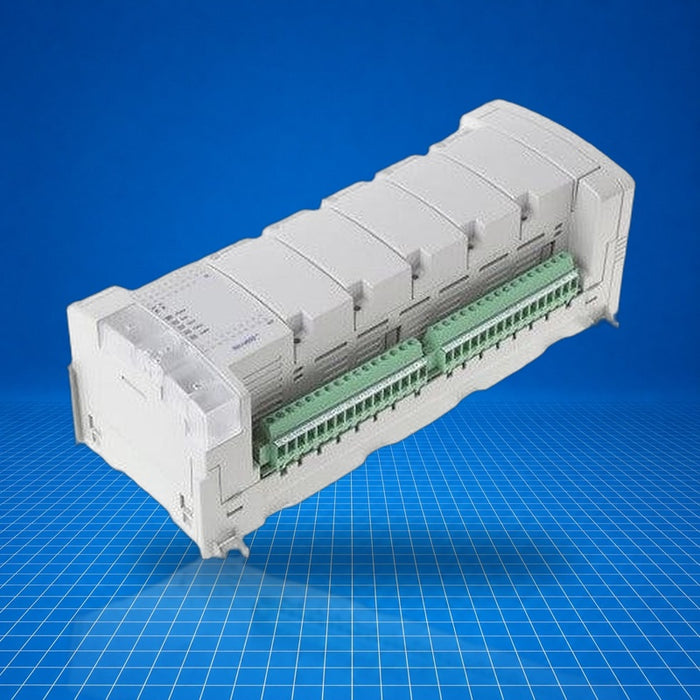

2080-LC50-48QVB Allen-Bradley

Name: 2080-LC50-48QVB Allen-Bradley
Brand: Allen Bradley
SKU: 2080-LC50-48QVB
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 2080-LC50-48QVB is an Allen-Bradley Micro850 series programmable logic controller providing 48 points (28 inputs, 20 outputs) in a compact brick form factor. It serves as a standalone EtherNet/IP control module suitable for mid-size machine and process control. It integrates standard and high-speed outputs and supports up to four expansion modules, enabling flexible I/O expansion. The 2080-LC50-48QVB is ideal for automation tasks in manufacturing, packaging, material handling, and OEM equipment control.

Best Suited For

Standalone machine control in OEM equipment
Packaging line automation with mixed-speed I/O needs
Applications requiring modular I/O expandability
Basic motion control with PTO or high-speed counting

Total I/O points

48 (28 inputs, 20 outputs)

Expansion modules supported

Up to 4 modules (132 I/O max)

Compact dimensions

90 × 238 × 80 mm

Weight

0.725 kg (1.60 lb)

Discontinued

July 31, 2023

Technical Specifications

I/O & Electrical

Inputs

28 (24 V AC/DC)

Outputs

20 (sink)

High-speed outputs

4 outputs, 100 mA (high-speed), 1.0 A @ 30 °C (standard)

I/O expansion

Up to 4 expansion modules, up to 132 total digital I/O

Communication & Power

Embedded Ethernet

EtherNet/IP (embedded)

Power supply

24 V DC embedded

Power consumption

33 W (from distributor data)

Physical & Environmental

Dimensions (H×W×D)

90 × 238 × 80 mm (3.54 × 9.37 × 3.15 in)

Weight

0.725 kg (1.60 lb)

Enclosure rating

IP20

Wire size

0.2-2.5 mm² (AWG 24-14)

Terminal torque

0.4-0.5 Nm (3.5-4.4 lb·in)

Certifications

CEKorean KCAustralian RCMUL Listed Hazardous

Certified CE, Korean KC, Australian RCM, Korean Register of Shipping, Registro Italiano Navale, UL Listed Hazardous (as of April 29, 2026).
