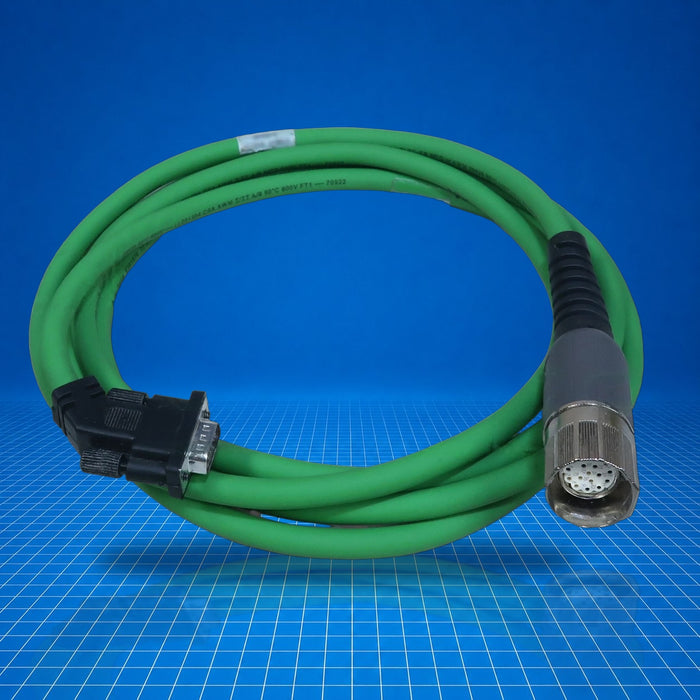

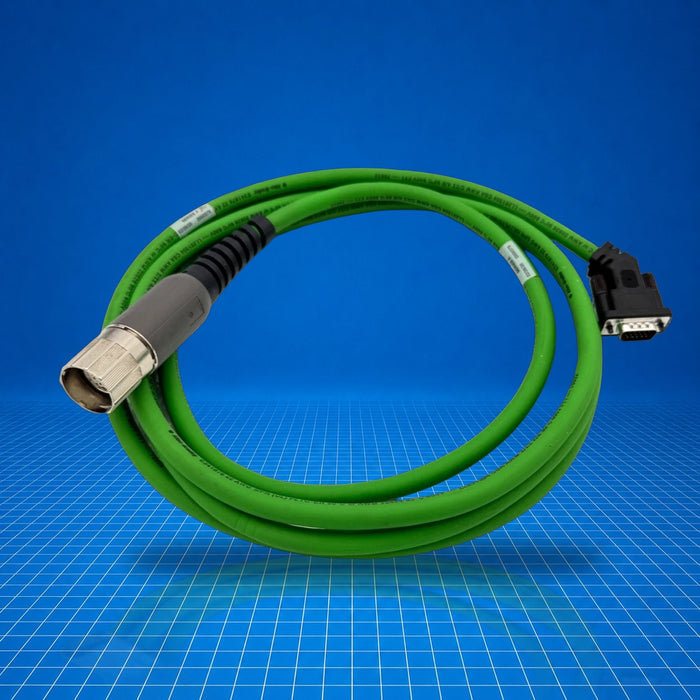

2090-CFBM7DD-CEAA03 Allen-Bradley
Original price
$673.75
-
Original price
$687.47
Original price
$673.75
$673.75
-
$687.47
Current price
$673.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2090-CFBM7DD-CEAA03 is an Allen-Bradley standard (non-flex) SpeedTec M7 feedback cable, designed to carry encoder signals (SIN/COS with additional lines) between a motor and drive in Kinetix MP-Series servo systems. It provides a shielded, premolded connection designed for precise positional feedback. Typical applications include compact servo motor installations in machine tools, conveyor systems, and packaging equipment. This part supports integration in systems using Kinetix motion control architecture.
Best Suited For
- Kinetix MP-Series servo motor feedback wiring
- Integration with SpeedTec DIN connector style setups
- Non-flex applications where fixed routing is acceptable
- High-resolution SIN/COS encoder signal transmission
Cable type
Standard (non-flex) SpeedTec M7 feedback cable
Connector style
Premolded connectors (motor to drive)
Encoder type
SIN/COS high-resolution plus additional feedback lines
Shielding
360° connector backshell shield
Cable diameter
9.8 mm (0.39 in) nominal
Technical Specifications
I/O & Electrical
Conductor size
22 AWG for all feedback conductors (SIN, COS, DATA, power, etc)
Shield
36 AWG overall shield, shielded backshell (360°)
Pin assignments
Includes SIN+/-, COS+/-, DATA+/-, EPWR 5 V, ECOM, EPWR 9 V, TS+, TS-
Communication & Power
Feedback signals
SIN/COS, DATA+/-, TS+/-
Auxiliary power
EPWR 5 V, EPWR 9 V, ECOM (ground reference)
Physical & Environmental
Cable diameter
9.8 mm (0.39 in) nominal
Minimum bend radius (non-flex)
N/A (not for continuous flex)
Cable type
Standard non-flex
