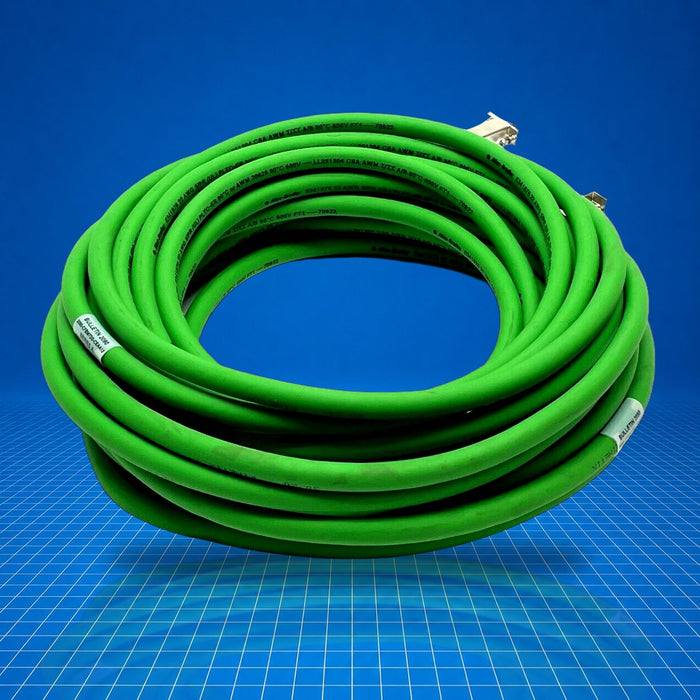

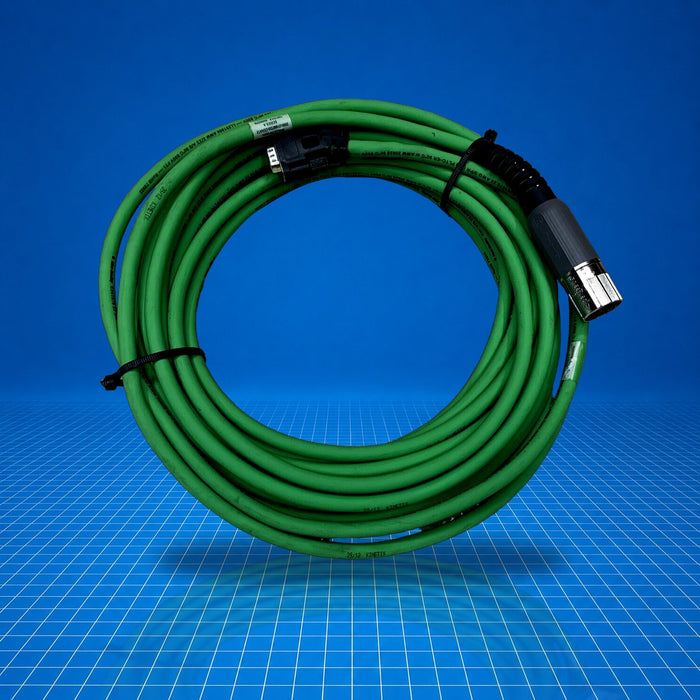

2090-CFBM7DD-CEAA12 Allen-Bradley
Original price
$1,374.88
-
Original price
$1,499.98
Original price
$1,499.98
$1,374.88
-
$1,499.98
Current price
$1,499.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2090-CFBM7DD-CEAA12 is an Allen-Bradley MP-Series SpeedTec standard (non-flex) servo motor feedback cable with a 12 m length and pre-molded drive-end connector. It carries SIN/COS high-resolution (resolver/encoder) feedback signals between MP-Series motors and Kinetix 2090 drives. It is used in motion control systems where extended cable runs are required, such as distributed servo axes or centralized drive arrangements.
Best Suited For
- Kinetix 2090 servo drive systems
- MP-Series motion control axes requiring 12 m feedback cable
- Applications needing SIN/COS high-resolution encoder feedback
- Standard, fixed-install feedback connections
Cable Type
Standard (non-flex) servo feedback cable
Length
12 m
Encoder Type
SIN/COS high-resolution / Resolver

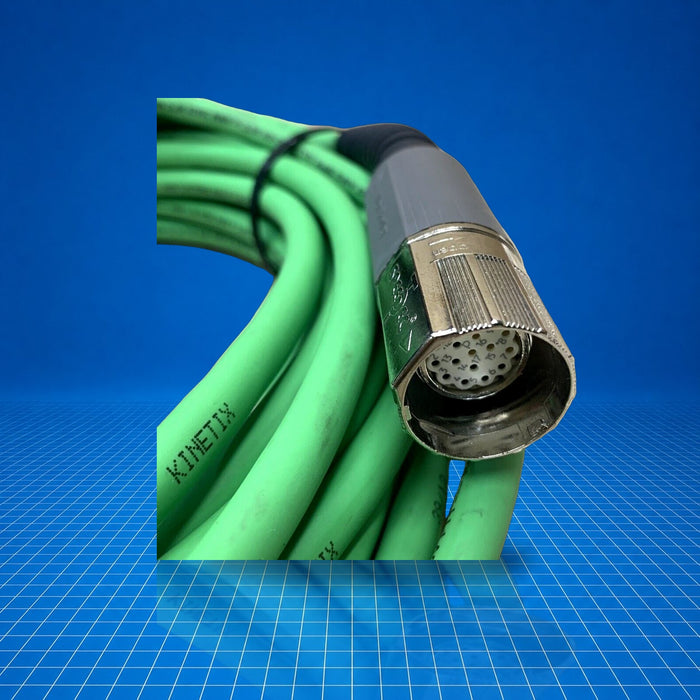

Connector
Pre-molded drive-end (SpeedTec DIN M7)
Technical Specifications
I/O & Electrical
Encoder signals
SIN+, SIN-, COS+, COS-, DATA+, DATA-, EPWR 5 V, ECOM, EPWR 9 V, TS+, TS-, shield
Communication & Power
Feedback signal types
High-resolution SIN/COS, DATA, track/shaft signals
Physical & Environmental
Length
12 m
Cable diameter
9.8 mm (0.39 in.)
Minimum bend radius
8.6 mm (2.7 in.), no continuous flex
Certifications
Active lifecycle
Certifications current as of April 28 2026; verify label for specific unit.
