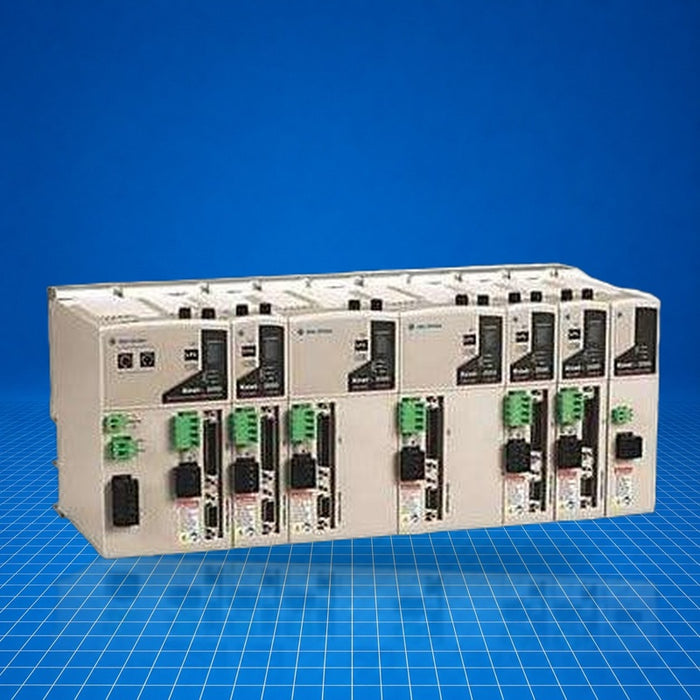

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2093-AM02 Allen-Bradley
Original price
$4,374.98
-
Original price
$5,280.00
Original price
$4,374.98
$4,374.98
-
$5,280.00
Current price
$4,374.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2093-AM02 is an Axis Module from the Allen-Bradley Kinetix 2000 servo drive family. It functions as a single-axis servo drive module rated for approximately 3.0 kW continuous power. It integrates into a motion control system to drive and regulate a servo motor, handling current delivery and feedback processing. Typical industrial applications include mid-range motion control tasks such as packaging, conveyor positioning, assembly automation, and machine tool axes where a dedicated servo axis is required. (Part number 2093-AM02)
Best Suited For
- Kinetix 2000 servo motion control systems
- Standalone axis control in multi-axis applications
- Replacement of existing discontinued 2093-AM02 module
- Mid-power automation where ~3 kW output is required
Continuous power output
3.0 kW
Continuous motor current (0-pk)
13.4 A
Peak motor current (0-pk)
40.3 A
Input voltage
230 V
Lifecycle status
Discontinued (as of December 31, 2022)
Technical Specifications
I/O & Electrical
Continuous motor current (rms)
9.5 A
Continuous motor current (0-pk)
13.4 A
Peak motor current (rms)
28.5 A
Peak motor current (0-pk)
40.3 A
Capacitance
540 μF
Capacitive energy absorption
20 J
Inverter PCB leakage current
1 mA
Communication & Power
Rated voltage
230 V
Input power frequency
47-63 Hz
Physical & Environmental
Weight
2.00 lbs (0.91 kg)
Heat dissipation
67.3 W
Ambient operating temperature
0-50 °C
Relative humidity
5-95% non-condensing
Vibration rating
2 G
Shock rating
15 G
