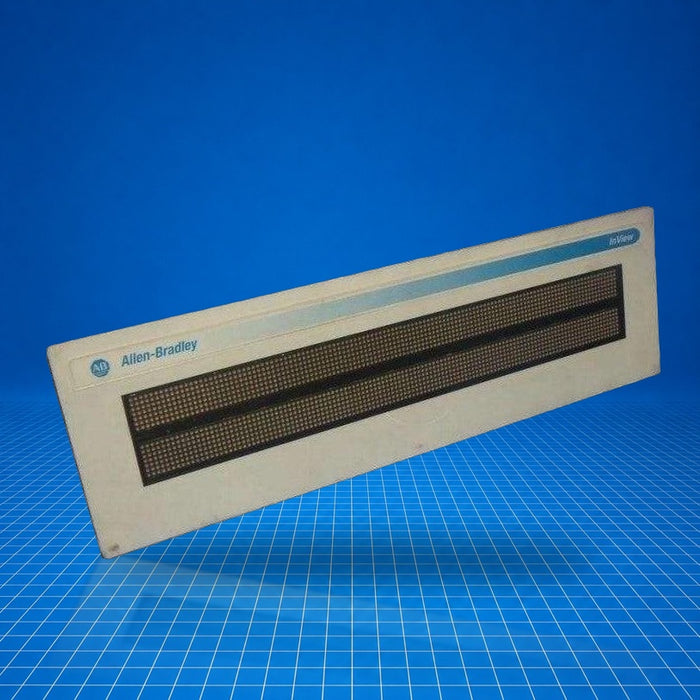

2706-P42C Allen-Bradley
Original price
$710.36
-
Original price
$10,912.50
Original price
$710.36
$710.36
-
$10,912.50
Current price
$710.36
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 2706-P42C is a short-format, tri-color LED matrix InView message display terminal intended for use in industrial control systems. It supports one or two lines of text, holding up to 4,000 messages, and is back-mounted to integrate within machinery or enclosures. It draws AC power from 100 to 240 V AC and displays messages-typically status alerts or operational information-on a conspicuous LED matrix visible up to approximately 200 ft. Part number 2706-P42C integrates into supervisory or operator-interface architectures.
Best Suited For
- Status messaging in control rooms or plant areas
- On-machine informative display for operators
- Retrofit or replacement for existing InView systems
- Environments requiring high-visibility messaging
Display area
36 × 4.8 in
Pixel resolution
120 × 16
Power input
100 - 240 V AC, 50/60 Hz
Viewing distance
≈ 200 ft
Technical Specifications
I/O & Electrical
Input voltage (AC)
100…240 V AC, 50/60 Hz
Memory (messages)
4,000 messages
Physical & Environmental
Display type
Tri-color LED matrix
Display area (W × H)
91.4 × 12.2 cm (36 × 4.8 in)
Pixel array
120 × 16
Pixel spacing
7.62 mm (0.3 in)
Lines of text
1 or 2
Characters per line
1 line: 12; 2 line: 20
Viewing distance
60 m (200 ft)
Operating temperature
0…50 °C (32…122 °F)
Relative humidity
5…95 % non-condensing
Weight
12.7 kg (28 lb)
Dimensions (HxWxD)
14 × 103 × 20 cm (5.5 × 40.38 × 7.88 in.)
Enclosure
NEMA 12
