2711P-RDB12C Allen-Bradley
Original price
$1,699.65
-
Original price
$2,205.00
Original price
$1,699.65
$1,699.65
-
$2,205.00
Current price
$1,699.65
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

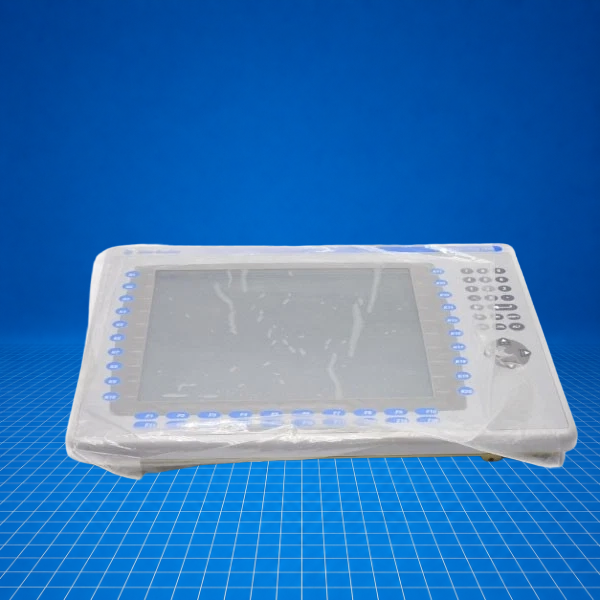

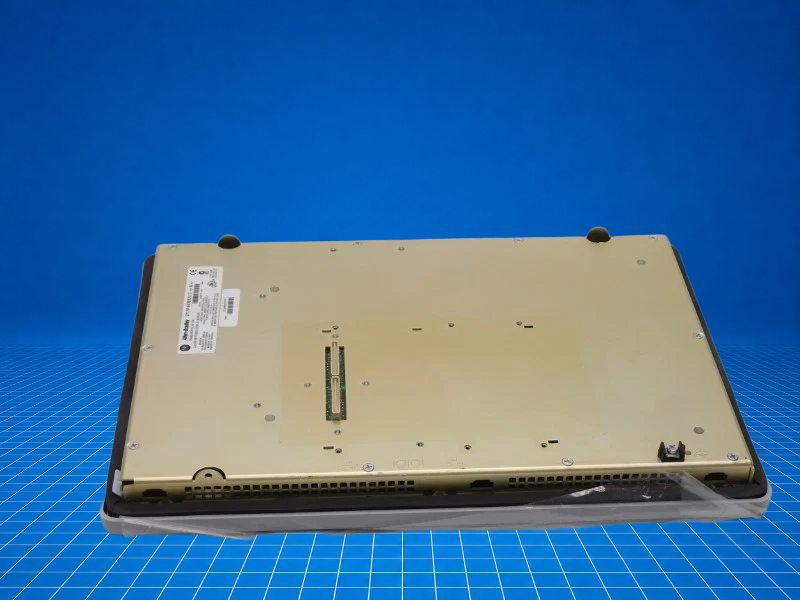

The 2711P-RDB12C is a PanelView Plus 1250 display module from Allen-Bradley. It provides a 12.1-inch color TFT LCD with both keypad and touch operator input, and is powered by 85-264 V AC supply. Designed to interface with logic modules via CompactFlash media and standard power inputs, it supports configurations typical in control and HMI installations. Common applications include supervisory operator panels in manufacturing, packaging, and process control environments where integrated keypad and touch input are required.
Technical Specifications
Attribute
Specification
Series / Family
PanelView Plus (Display Module, 1250 model)
Display size
12.1 in
Type of display
Color active matrix TFT with LCD
Monitor Size
12.1-in TFT Display
Input Type
Keypad/Touch
Operator Input
Touch Screen and Keypad
Number of pixels (horizontal × vertical)
800 × 600
Luminance
300 cd/m² (Nits)
Backlight
CCFL, 50000 hr life, minimum
Input voltage
85...264V AC
Power consumption
70 W max (2.9A @ 24V DC), 39 W typical (1.6A @ 24V DC)
Line frequency
47 Hz
Remote power input voltage
85...264V AC
Remote power consumption
120 VA maximum
External CompactFlash storage
512 MB maximum
PCI slot available power supply, max
11 W DC, 5 W AC
Touch screen
Analog resistive
Actuation rating (touch & keypad)
1 million presses
LED indicators
COMM (Green), fault (Red)
Battery life
4 yr minimum at 25 °C (77 °F)
Clock accuracy
Battery-backed, ±2 min per month
Application flash memory
20 MB for logic modules, series A to D
Width × Height × Depth
416 mm × 282 mm × 55 mm
Weight, approx
3.4 kg
Cutout dimensions
257 × 338 mm
Degree of protection (IP)
IP65 (also IP54 option noted)
Enclosure rating
NEMA Type 12, 13, 4X (Indoor use only)
Operating temperature
0 °C
Nonoperating temperature
-25 °C
Shock
Operating: 15 G at 11 ms
Vibration
10-57 Hz, 0.012 peak-to-peak displacement; 57-500 Hz, 2 G peak acceleration
Altitude, operating
2000 m
Relative humidity
5…95 % without condensation
