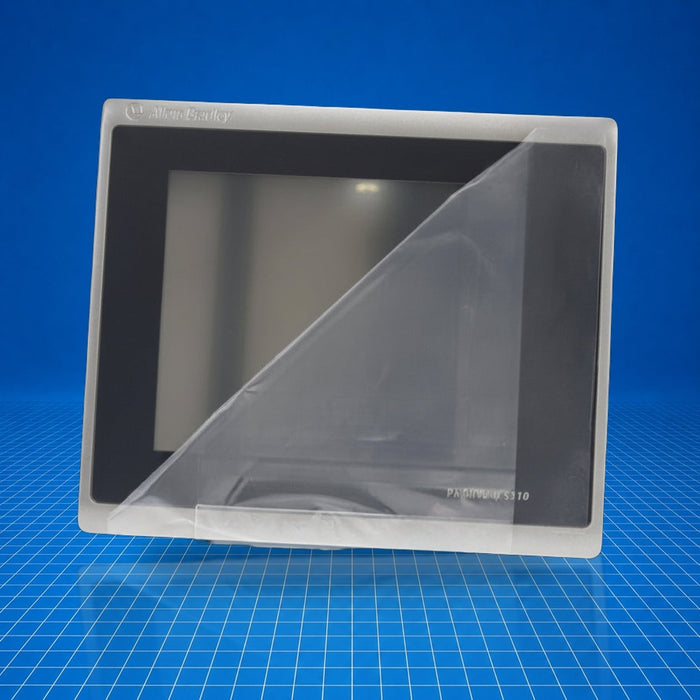

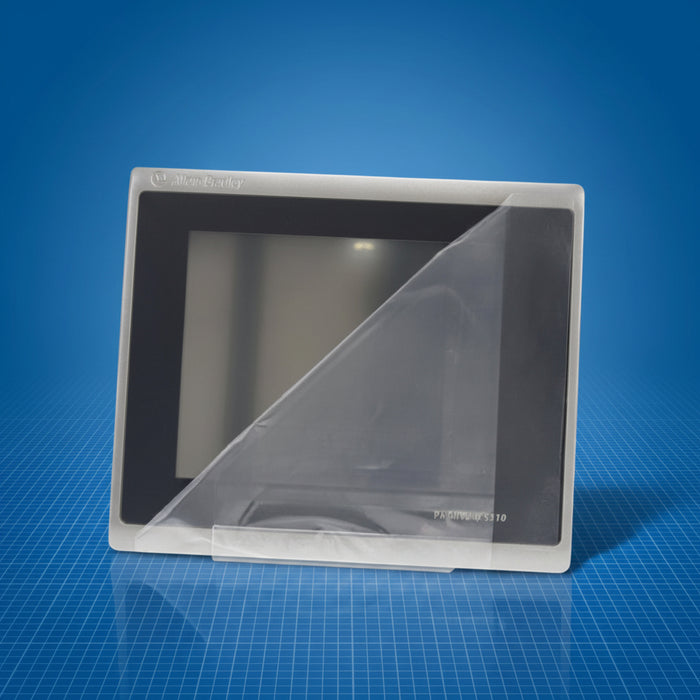

2713P-T10CD1 Allen-Bradley
Original price
$1,406.40
-
Original price
$3,482.68
Original price
$1,406.40
$1,406.40
-
$3,482.68
Current price
$1,406.40
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage | 24 V DC (nominal; 18…30 V DC) |
| Power Consumption (Typical / Max) | 12 W / 15 W |
| Display Size / Type | 10.4 in diagonal, color TFT LCD, 4:3 aspect ratio |
| Resolution | 800 × 600 SVGA |
| Touch Technology | Analog resistive touch |
| Ethernet Port | One 10/100 Base‑T (EtherNet/IP support) |
| Memory | 1 GB RAM; 1 GB nonvolatile user storage |
| Backlight | LED, non‑replaceable, ≥ 50,000 h (to half‑brightness at 40 °C) |
| Battery (RTC backup) | CR2032 coin cell; life ≥ 4 yr at 25 °C; accuracy ±2 min/month |
| Front Protection | NEMA 4X, 12, 13; IP66 |
| Operating Temperature | 0 °C to 50 °C |
| Non‑operating Temperature | −25 °C |
| Shock (Operating / Non‑operating) | 15 g @ 11 ms / 30 g @ 11 ms |
| Vibration | 0.012 mm p‑p (10–57 Hz); 2 g (57–500 Hz) |
| Relative Humidity | 5…95 % non‑condensing |
| Altitude, Operating | Up to 2000 m |
| Dimensions (Front WxH) | 297 mm × 252 mm |
| View Area | 211 mm × 158 mm (8.3″ × 6.2″) |
| Cutout Dimensions | 269 mm × 224 mm (10.59″ × 8.82″) |
| Overall Depth | 69.5 mm |
| Weight | ≈ 2.08 kg (4.59 lb) |

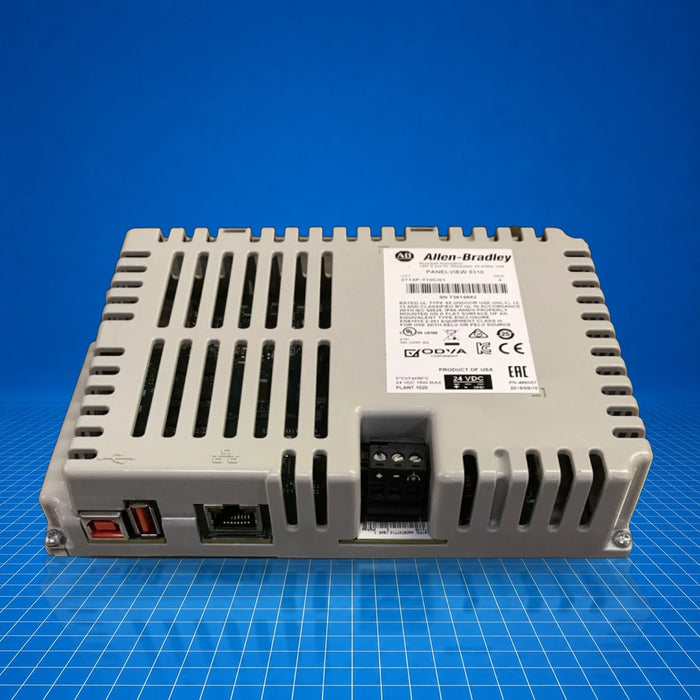

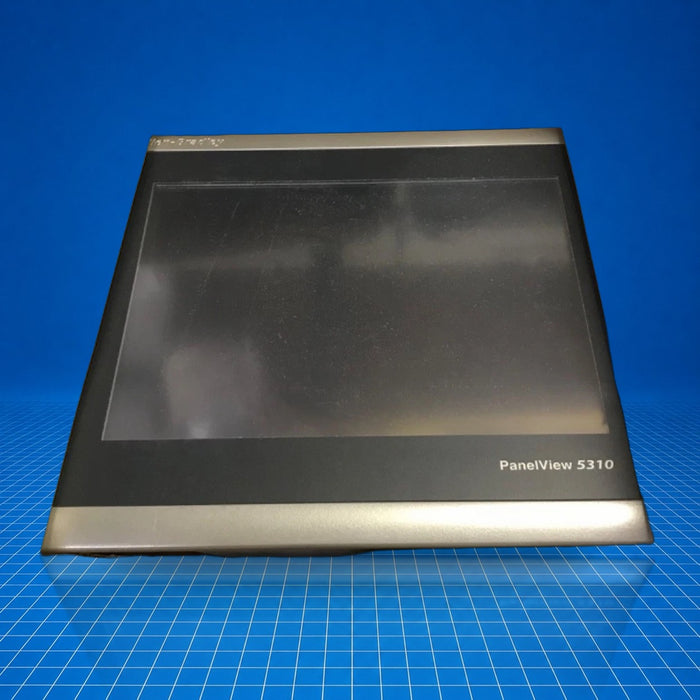

The Allen‑Bradley PanelView 5310 operator terminal, part number 2713P‑T10CD1, offers a 10.4‑inch color resistive‑touch display with 800 × 600 resolution, ideal for integration with ControlLogix or CompactLogix systems over EtherNet/IP networks. With robust front‑side protection rated IP66/NEMA 4X and an efficient 24 V DC power supply, it's well‑suited for tough industrial environments where reliability and clear operator interaction are critical. The terminal’s on‑board memory, LED backlight life, and RTC backup further support smooth operation and minimal downtime in HMI applications.
