3G3MX2-A4015-E Omron

Name: 3G3MX2-A4015-E Omron
Brand: Omron
SKU: 3G3MX2-A4015-E
Price: 417.0 USD
Availability: InStock

$417.00 - $1,622.50

$417.00

$417.00 - $1,622.50

$417.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

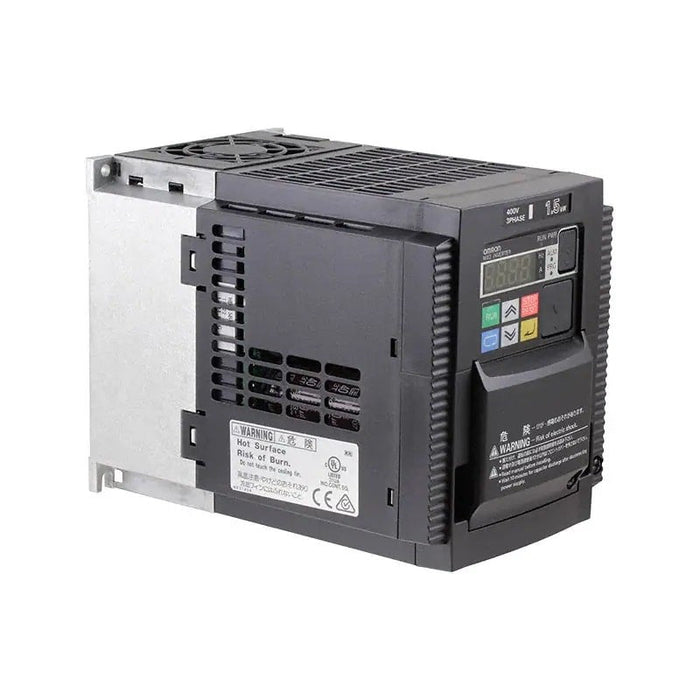

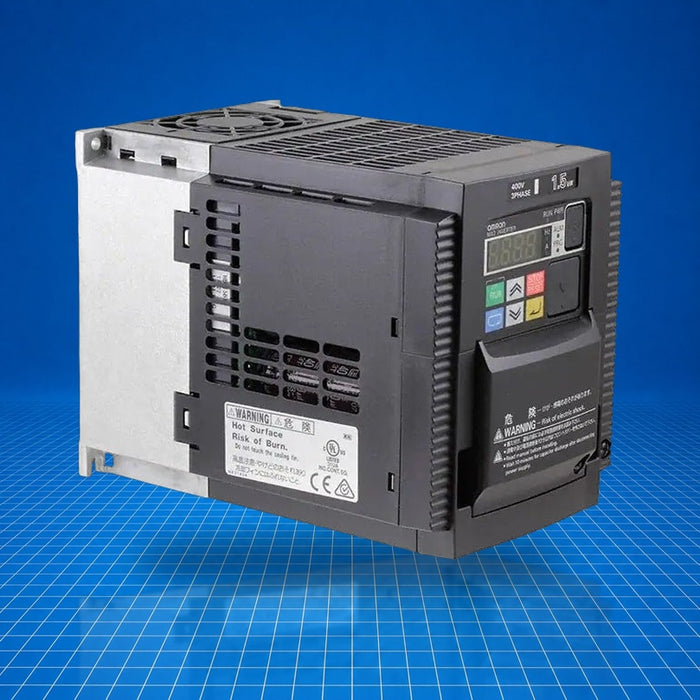

The 3G3MX2-A4015-E is a 3-phase, 400 V class, Multi-function Compact Inverter in Omron's MX2-V2 family (model suffix "A4015-V2"). It converts fixed 3-phase 380 to 480 V input into variable frequency output suitable for driving AC motors up to 1.5 kW (normal-load) or 2.2 kW (light-load). It supports features like motor control profiling, regenerative braking, and optional EtherCAT connectivity. Typical use includes variable-speed drive, positioning, and torque control in industrial machine applications.

Best Suited For

Pumps, fans or conveyors up to ~2 kW
OEM machine control requiring compact VFD
Applications needing smooth start/stop and motor torque control
Systems with limited panel space (IP20 compact size)

Motor capacity (ND / LD)

1.5 kW / 2.2 kW

Rated input voltage

3-phase 380 V -15% to 480 V +10%, 50/60 Hz ±5%

Rated input current (ND)

5.2 A

Unit weight

1.8 kg

Cooling method

Self-cooling (no fan)

Technical Specifications

I/O & Electrical

Maximum applicable motor capacity (Normal-load)

1.5 kW

Maximum applicable motor capacity (Light-load)

2.2 kW

Rated output current (Normal-load)

4.8 A

Rated output current (Light-load)

5.4 A

Communication & Power

Rated input voltage

3-phase 380 V -15% to 480 V +10%, 50/60 Hz ±5%

Rated input current (Normal-load)

5.2 A

Braking resistor circuit

Built-in braking resistor circuit (discharge resistor separately mounted)

Minimum connection resistance

180 Ω

Physical & Environmental

Cooling method

Self-cooling (without fan)

Weight

1.8 kg

Dimensions (W × H)

140 × 260 mm

Depth

158 mm

Operating ambient temperature

-10 °C to 50 °C

Certifications

EMC (EN61800-3)LVD (EN61800-5-1)UL508CEtherCAT (IEC 61158/61800-7)

Complies with EN61800-3 (EMC Directive) and EN61800-5-1 (Low Voltage Directive). UL508C listed. Supports EtherCAT per IEC 61158 Type 12, IEC 61800-7 CiA 402 drive profile.
