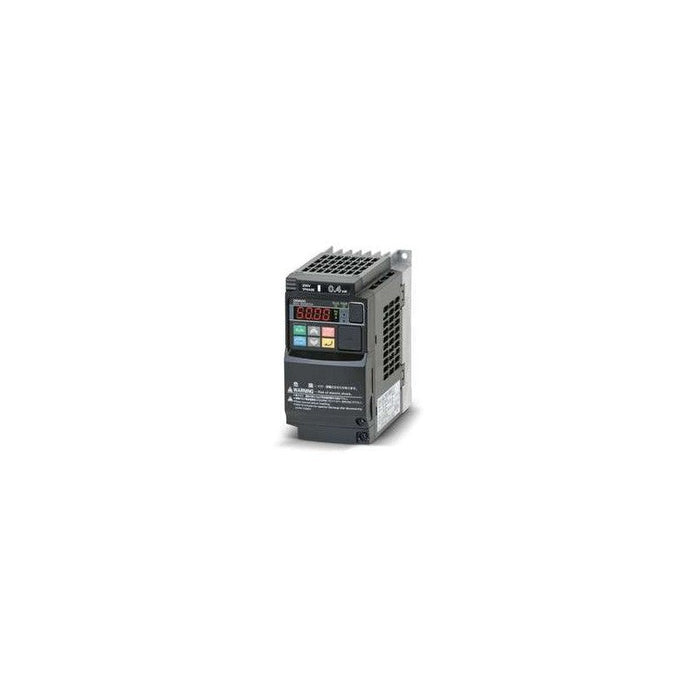

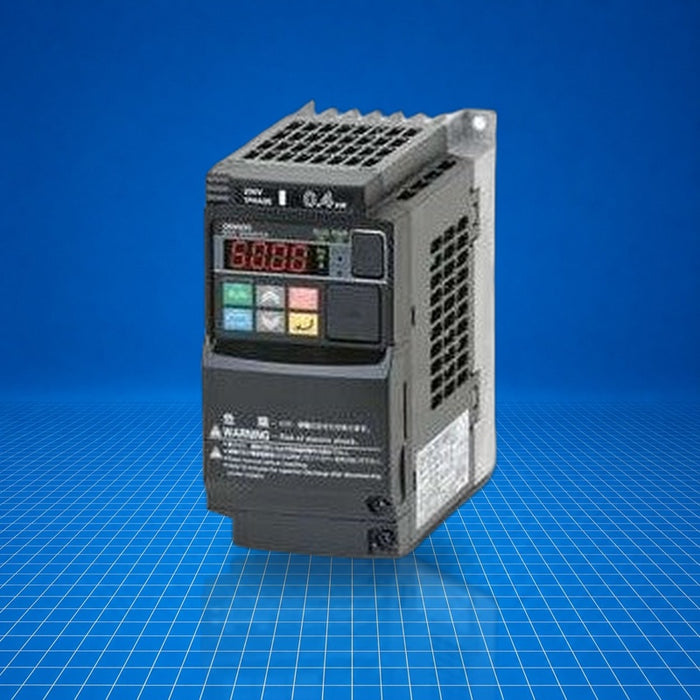

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
3G3MX2-AB004-E Omron
Original price
$0.00
-
Original price
$687.50
Original price
$687.50
$0.00
-
$687.50
Current price
$687.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 3G3MX2-AB004-E is an Omron MX2-Series V2 type multi-function compact inverter designed for single-phase 200 V AC motor control. It provides variable-frequency drive capability in industrial control systems, enabling precise speed and torque regulation through V/f and sensorless vector control methods. Rated for approximately 0.4 kW normal-load and 0.55 kW light-load applications, it suits conveyors, small pumps, fans and machine tools. The unit integrates braking and current protection features and interfaces via standard PWM control.
Best Suited For
- Single-phase 200 V AC motor drive applications
- Conveyors and small pump systems
- Light industrial machinery speed control
- Compact panel installation where space is limited
Normal-load motor capacity (kW)
0.4 kW
Light-load motor capacity (kW)
0.55 kW
Rated input voltage
Single-phase 200 V -15 % to 240 V +10 %, 50/60 Hz ±5 %
Enclosure rating
IP20 (open type)
Control methods
V/f, sensorless vector
Technical Specifications
I/O & Electrical
Rated input voltage
Single-phase 200 V -15 % to 240 V +10 %, 50/60 Hz ±5 %
Rated input current (ND)
6.3 A
Rated input current (LD)
7.3 A
Rated output current (ND)
3.0 A
Rated output current (LD)
3.5 A
Output voltage
3-phase 200 to 240 V (less than input)
Communication & Power
Control method
Phase-to-phase sinusoidal PWM
Output frequency range
0.01 to 590 Hz
Frequency precision (digital)
±0.01 % of max
Frequency precision (analog)
±0.2 % of max (25 ±10 °C)
Physical & Environmental
Dimensions (W × H × D)
68 × 128 × 125.5 mm
Depth with terminals (D1)
27 mm
Enclosure rating
IP20 (open type)
Operating ambient temperature
-10 to 50 °C
Cooling method
Self-cooling (no fan)
