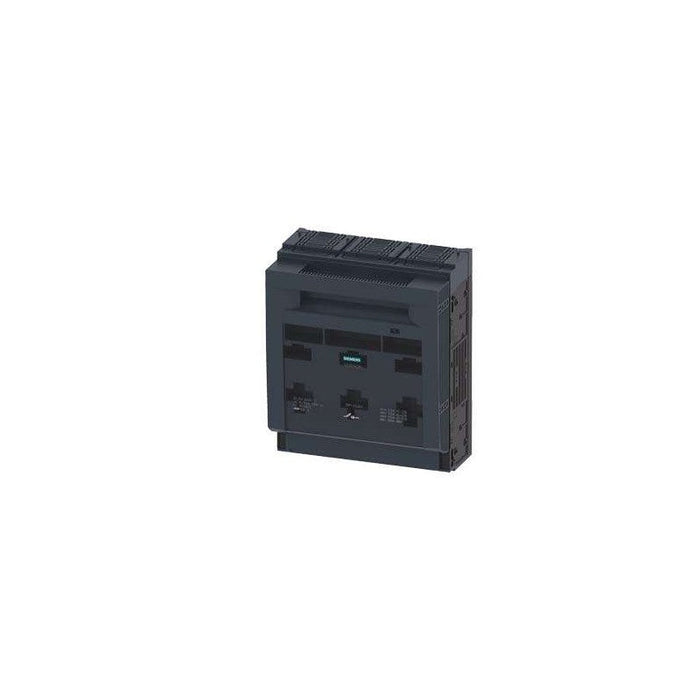

Product image is representative; revision or series may vary.
Contact us to request a specific version.

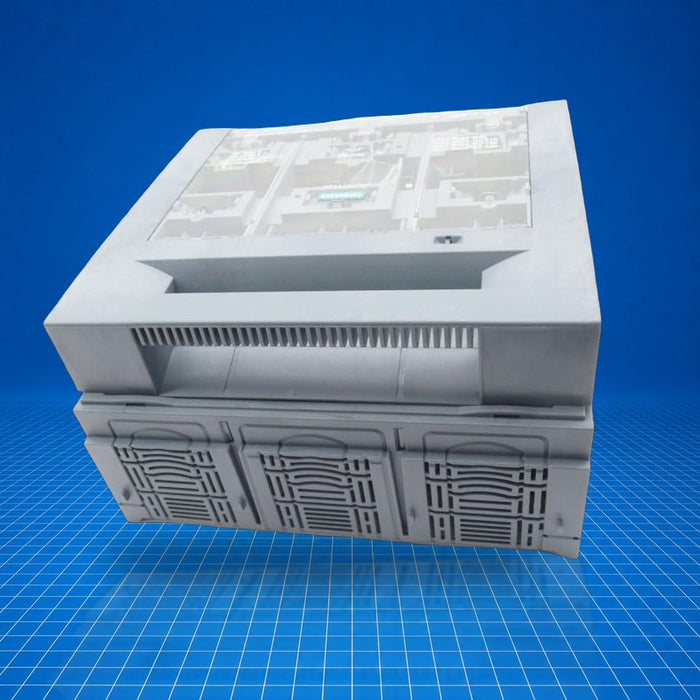

3NP1163-1DA10 Siemens

Name: 3NP1163-1DA10 Siemens
Brand: Siemens
Price: 4068.73 USD
Availability: InStock

$4,068.73 - $4,068.73

$4,068.73

$4,068.73 - $4,068.73

$4,068.73

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 3NP1163-1DA10 is a SENTRON 3NP1 series, three-pole fuse-switch disconnector rated at 630 A. It is designed for assembly and installation on mounting plates and accepts NH2/NH3 high-rupture-capacity fuse links. The device provides over-current protection and disconnection in industrial power distribution systems, suitable for switchgear, motor feeders, or branch circuit isolation in medium-voltage switchboards. Typically used in manufacturing, infrastructure, or process plants where reliable manual isolation and fuse protection are required.

Best Suited For

Manual isolation and protection of 3-phase feeders
Mounting on power distribution plates or enclosures
Use with NH2/NH3 HRC fuse links up to 630 A
Industrial switchgear and distribution boards
Applications requiring high fault-current let-through management

Rated current

630 A

Poles

3-pole

Fuse link size

NH2, NH3

Mounting style

On mounting plate, flat terminal

Let-through I²t

5 400 kA²·s

Technical Specifications

I/O & Electrical

Rated operational current (35 °C)

630 A

Operational current (50 °C)

555 A

Operational current (55 °C)

530 A

Insulation voltage

690 V

With pollution degree 2 at AC

1 000 V

Physical & Environmental

Mechanical service life (cycles)

1 000

Surge voltage resistance (rated)

8 kV

Certifications

RoHSWEEEREACH
